Advanced Anesthesia Machine

A9 Anesthesia
Workstation

Watch Video

Innovative Technology for Precise Anesthesia Delivery

  • Optimize Perioperative Care With Mindray

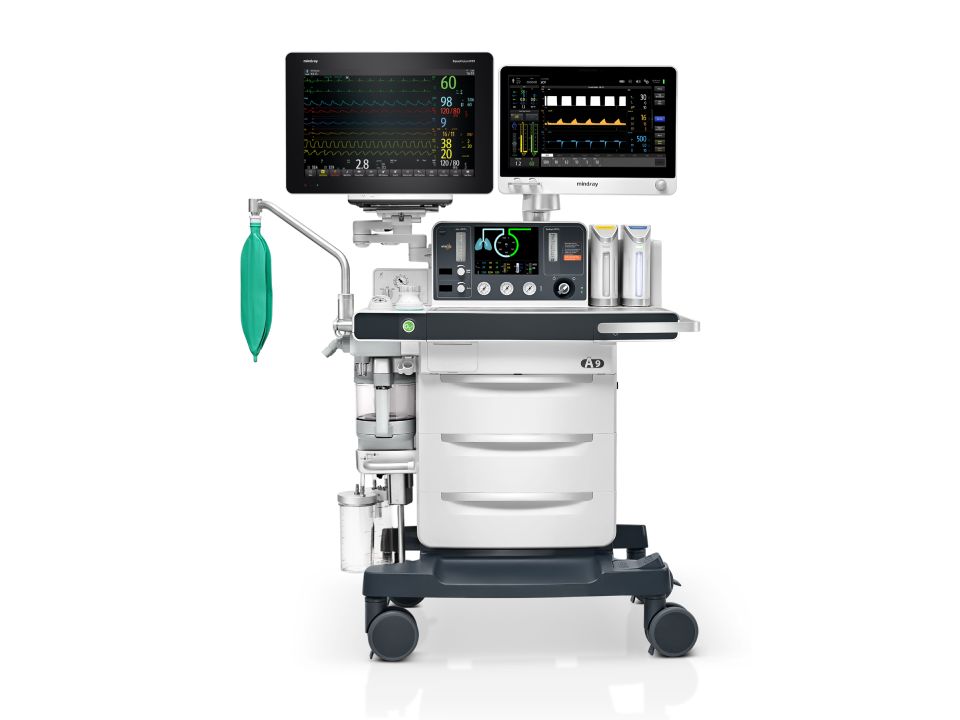

    A9 Anesthesia Workstation

    The A9 Anesthesia Workstation is expertly designed with clinicians' needs in mind. It incorporates valuable clinical insights to complement clinical workflow and enhance patient safety.

    Perfectly suited for ICU-level ventilation, the A9 Anesthesia features the volume exchanger (VE), an innovative breathing system that delivers highly precise and reliable ventilation. This advanced anesthesia workstation optimizes patient safety during anesthesia procedures, with tidal volume settings as low as 5 mL, ensuring optimal ventilation for even the most critical patients.

    Classically positioned Mindray V90 electronic vaporizers provide precise agent delivery, notify the user when agent gets low and quickly wash out agent from the breathing circuit with preset high flow rate to expedite the recovery phase.

    Request Pricing
    A9-Front

Key Features of the A9 Anesthesia Machine

  • Address Ventilation and Intubation Challenges
    Maximize Patient Safety
    • Integrated High Flow Nasal Cannula (HFNC) helps clinicians intubate more easily
    • Innovative VE breathing system delivers extremely precise and reliable ventilation
    • Precise ventilation for all patients, from adults to neonates, with tidal volume settings as low as 5 ml
    • Visual VE indicator clearly illustrates the breathing system ventilation state
    • Protective ventilation toolkits to prevent post-operative pulmonary complications (PPCs)
    • Electronic vaporizers with onscreen control for reliable, safe and precise agent delivery
    • Electronic vaporizer alarms notify the clinician when agent gets low
    Learn More
    maximize-patient-safety-960x720
  • A Smooth User Experience to Simplify Workflows
    Complement Clinical Workflow

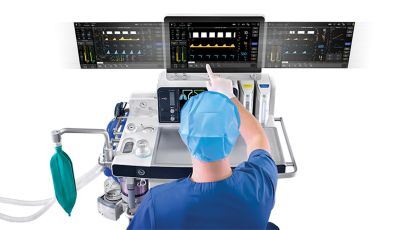

    • A simplified capacitive touchscreen on an 18.5", 360-degree touchscreen monitor, featuring an illuminated APL valve in manual mode
    • Perform a simple, comprehensive, and fast automatic pre-use system check in under 3.5 minutes or schedule in advance
    • Save up to 10 configured profiles for different clinical scenarios or user requirements
    • Clear status dashboard acts as a virtual bellows
    Learn More
    compliment-clinical-workflow-960x720
  • Flexible System Integration and Reduced Environmental Impact
    Enhance Efficiency
    • Reduce economic and environmental impact with the Optimizer low flow decision support tool, Flow Pause, Agent & Gas usage measurement and recycled sample gas
    • e-AGSS monitors the scavenging flow rate and automatically switches off in standby to reduce energy consumption
    • Convenient integration options
    • Secure and seamless connectivity and integration with Mindray devices and third-party information systems
    • Best-in-class three-year warranty on the A9 platform
    Learn More
    enhanced-efficiency_960x720

Leading-Edge Technology to Promote Patient Safety

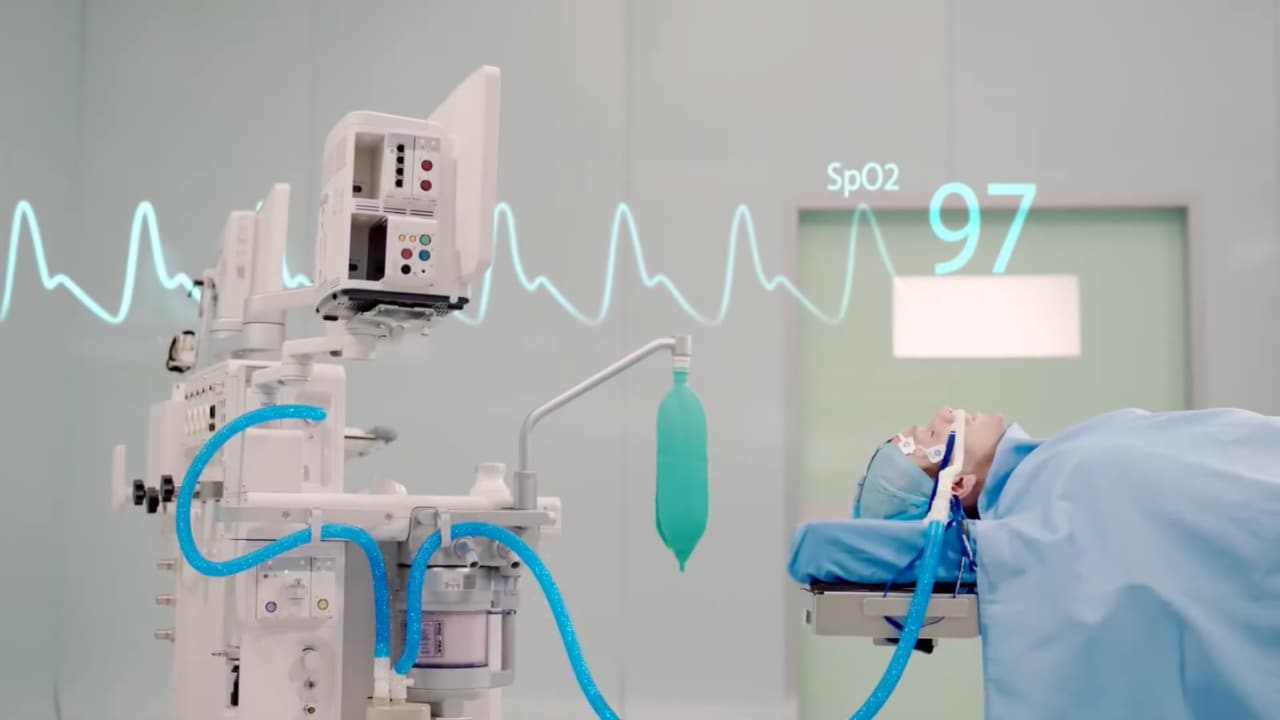

Integrated HFNC

HFNC is a suitable tool for critically ill and bariatric patients or those with difficult airways. It maintains oxygen saturation levels and improves patient comfort, intubation, and ventilation by delivering high oxygen flow rates up to 60 l/min.

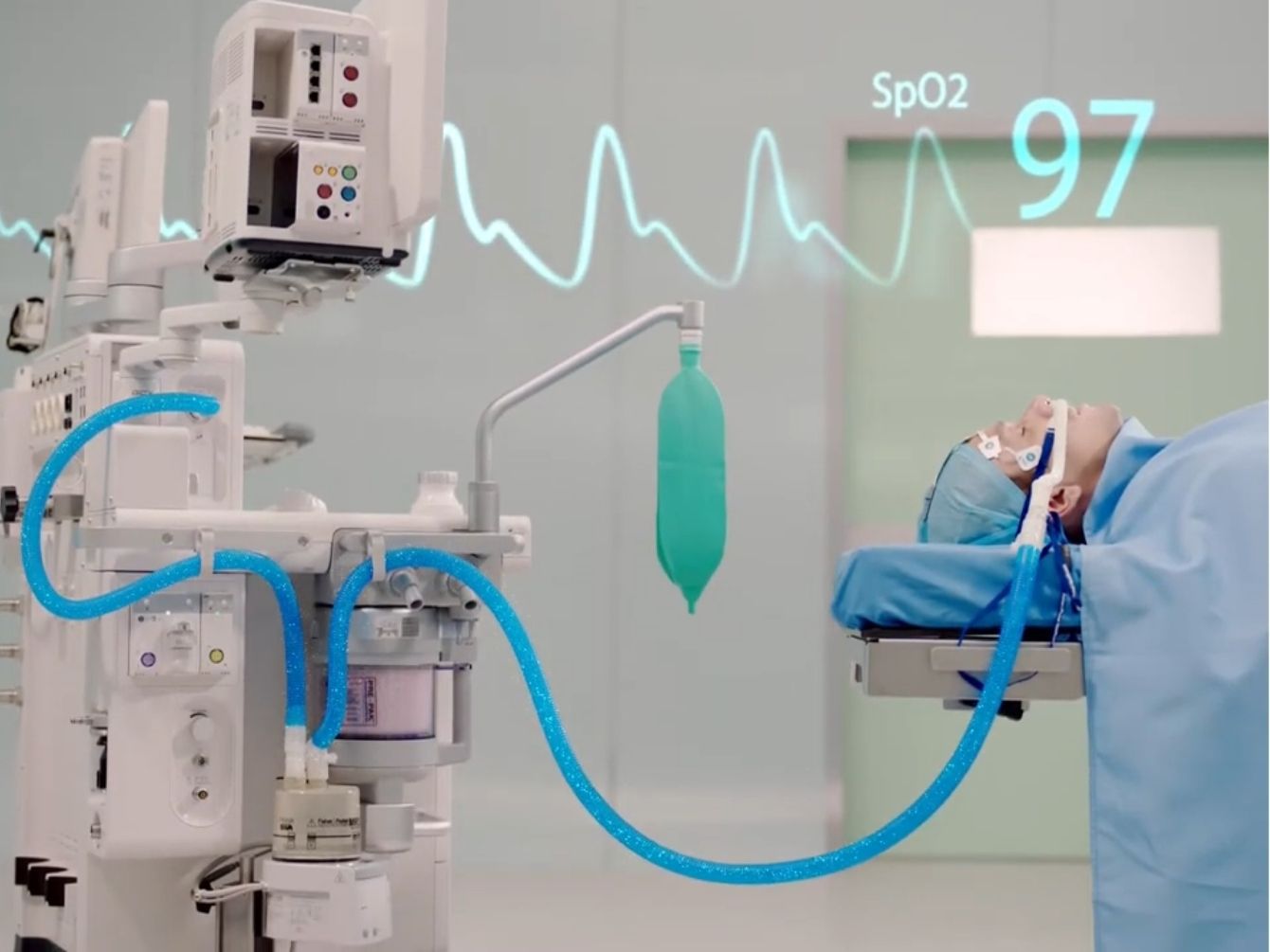

High Flow Nasal Cannula (HFNC)
Direct setting of total flow and O2 concentration with maximum flow up to 60 L/min
Built-in design eliminates the need for extra gas or power sources, and frees up space in anesthesia environments
Fast startup in emergency cases, enabling rapid patient oxygen saturation to support ventilation and anesthesia efforts
Automatic recording of HFNC delivery directly into the patient’s medical record to ensure accuracy and continuity of care

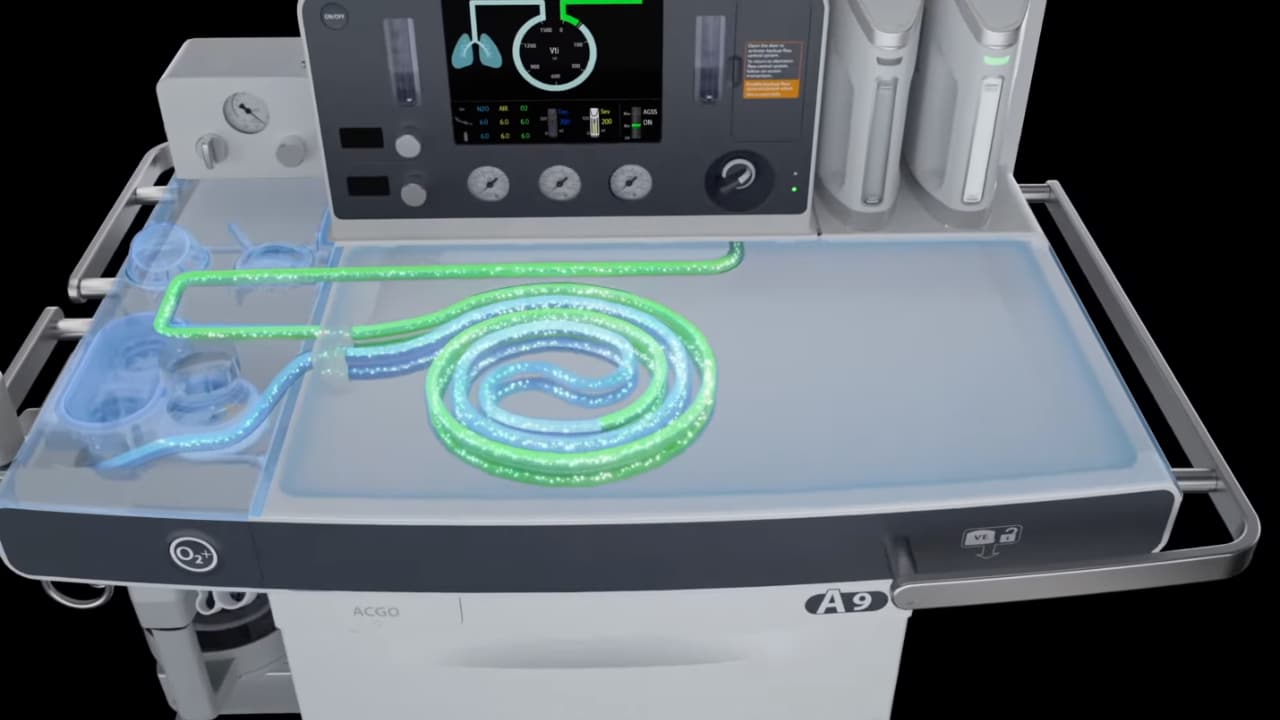

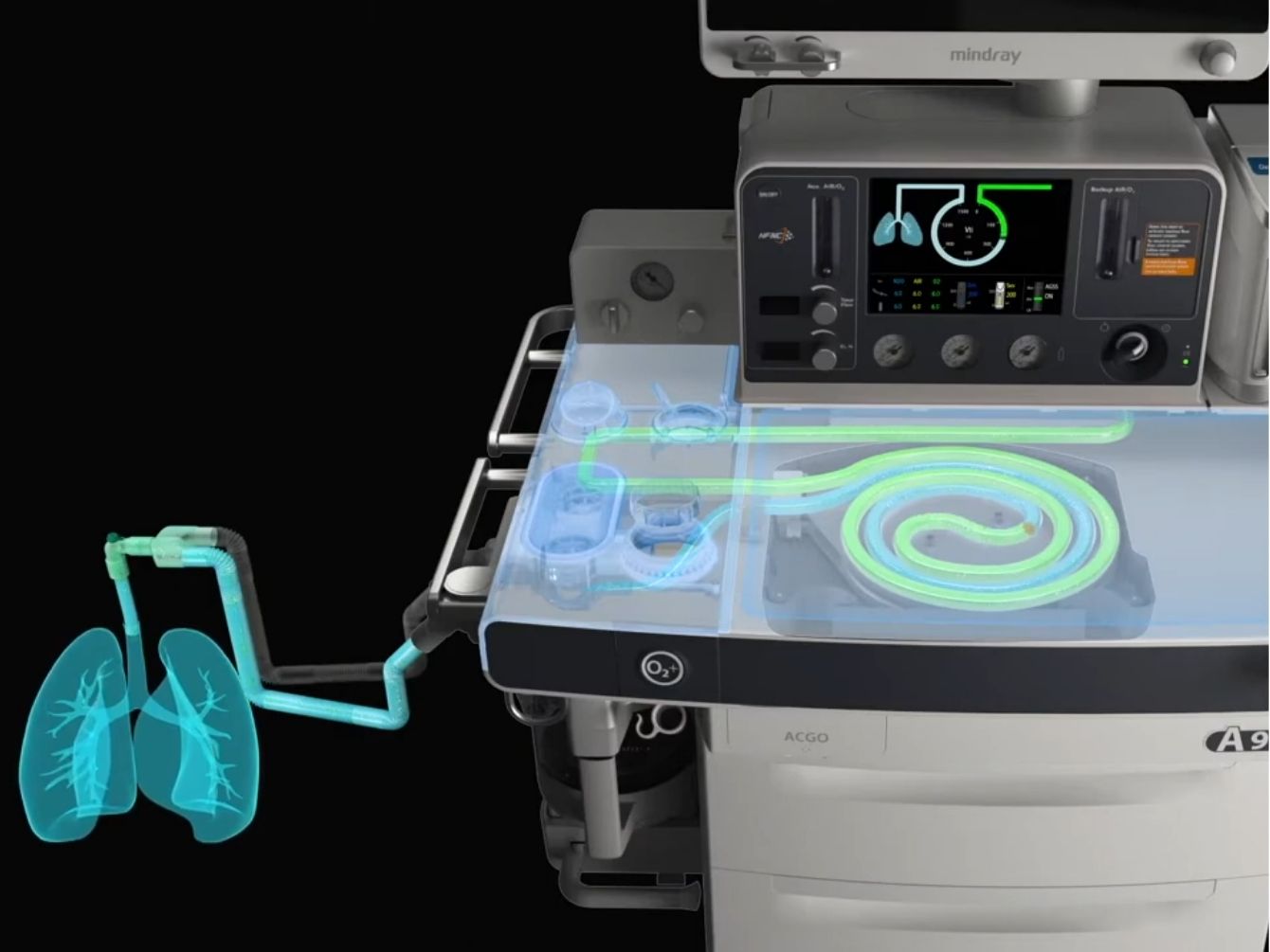

Innovative Breathing System for ICU-Level Ventilation

The volume exchanger offers highly reliable and precise ventilation, maximizing patient safety during operations.

A8_A9 Innovative Breathing System for ICU-level Ventilation
A small system volume that enables fast wash-in and wash-out, increasing response times in critical anesthesia procedures
Dependable ventilation for adults, children, and neonates with tidal volumes as low as 5 mL, optimizing anesthesia support
An easy-to-read indicator illustrating the VE's state, which enhances workflow and patient monitoring during anesthesia
No moving parts, maximizing uptime in the anesthesia environment, and increasing reliability

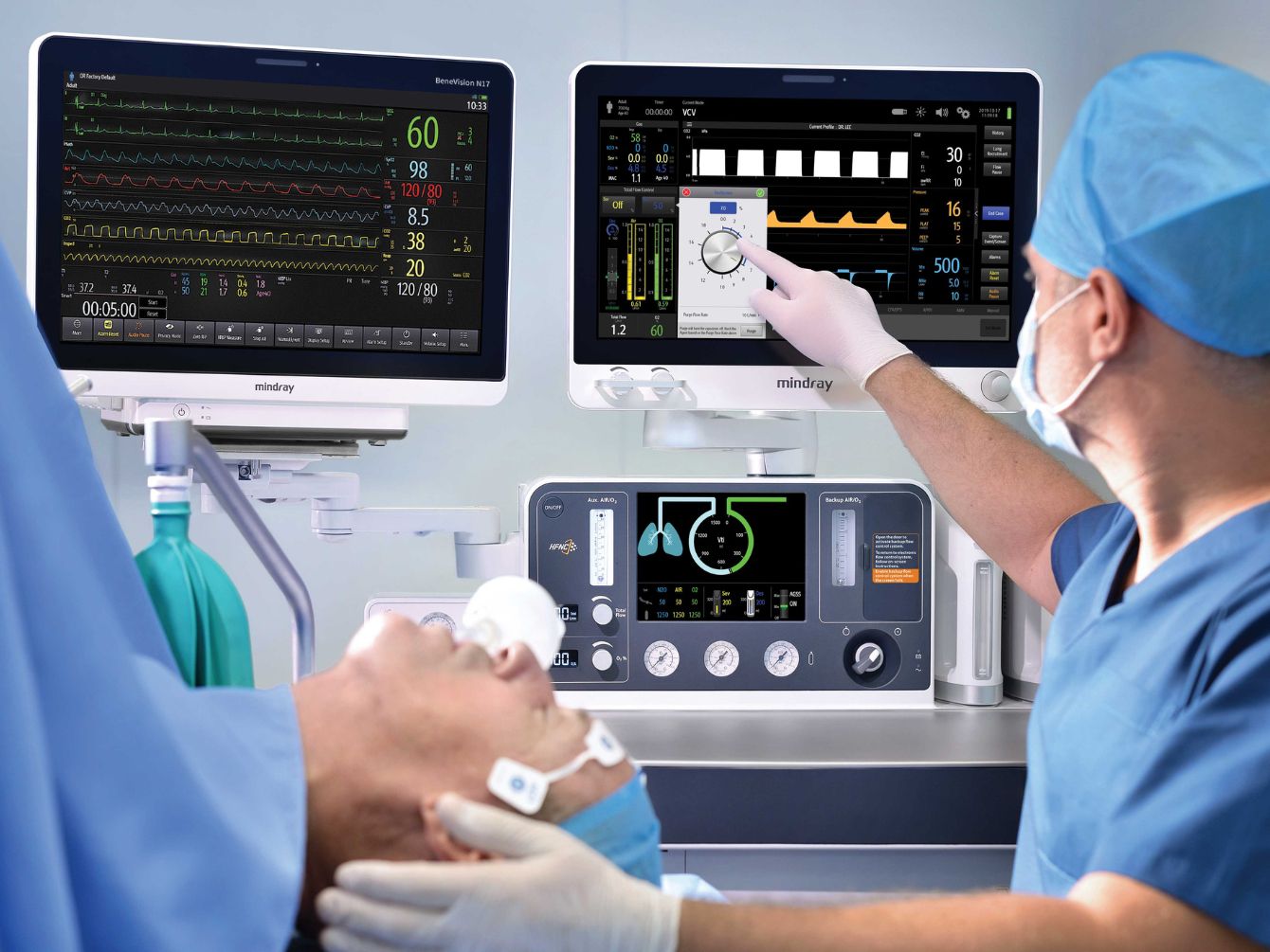

Advanced Ventilation Modes

The Mindray A9 Anesthesia Workstation features control, assist and spontaneous ventilation modes to support different respiratory needs for patients with issues like trauma, persistent atelectasis, and refractory hypoxemia.

A9 VE and HFNC Video Thumbnails - 3
Airway Pressure Release Ventilation (APRV)
Volume-Controlled Ventilation (VCV)
Pressure-Controlled Ventilation (PCV)
Pressure-Controlled Ventilation with Volume Guarantee (PCV-VG)
Synchronized Intermittent Mandatory Ventilation (SIMV-VG, SIMV-VC, SIMV-PC)
Continuous Positive Airway Pressure (CPAP) with Pressure Support (PS)

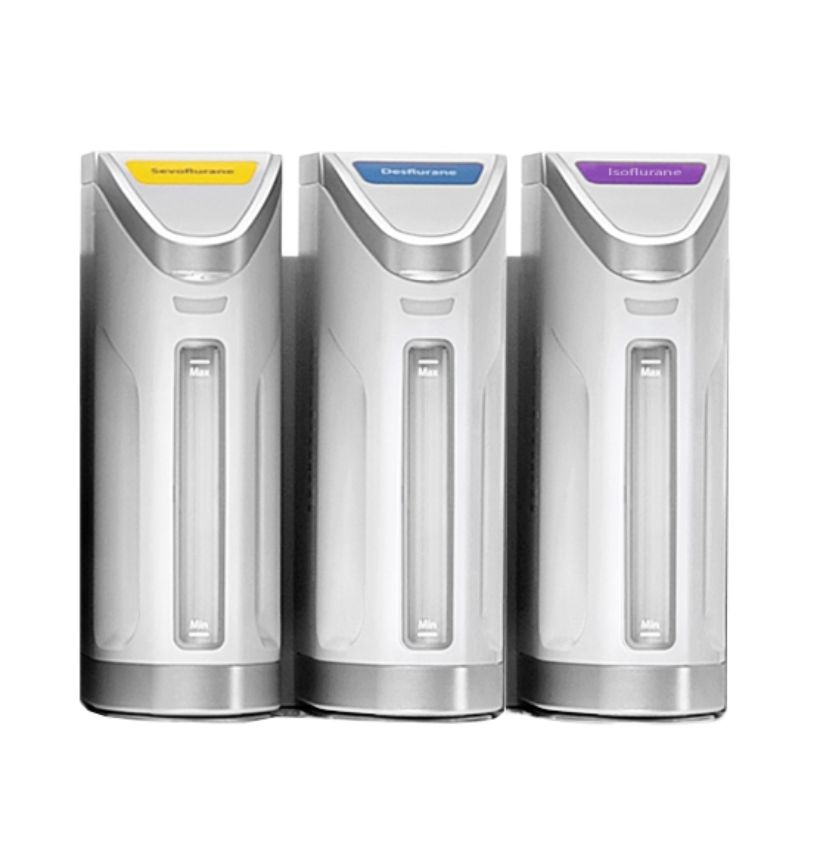

V90 Electronic Vaporizers
Precise Delivery and Low Agent Notification

V90 electronic vaporizers precisely deliver the agent in a familiar position and notify clinicians when the agent declines.

    ● Handles to ease removal and refilling

    ● A preset high flow rate to rapidly wash out the agent from the ventilation circuit and accelerate recovery

    ● Self-seal and pressure release design, which allows for mid-case refilling

    ● A safety fill design that automatically closes when the cover is opened

    ● Easy adjustability via the target value screen, knob, or slide virtual dial

    ● A maintenance-free design that requires zero calibration over the vaporizers' useful life

A9-low-res-vaporizers

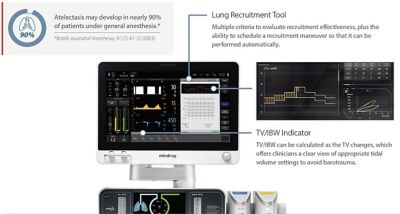

Protective Ventilation Toolkits to Avoid PPCs

Mindray has incorporated powerful toolkits into the A9 to enhance decision-making on ventilation matters and prevent PPCs for optimal patient outcomes.

Complementing Clinical Workflows With Innovative Technology

Configurable Profiles for Enhanced Anesthesia Management

The A9 Anesthesia Workstation enables easy customization and loading of diverse profiles for different anesthesia scenarios or specific use cases. These profiles include screen layouts, system configurations, and default values, streamlining workflows and ensuring efficient, tailored anesthesia support during each case.

Comprehensive, Fast and Simple Automatic System Check

Run automatic checks to confirm proper system functionality in 3.5 minutes or schedule it in advance to reduce preparation time. The system check follows the American Society of Anesthesiologists (ASA) guidelines and streamlines troubleshooting through clear indicators.

Innovation That Elevates Efficiency

Better Environmental and Economic Benefits

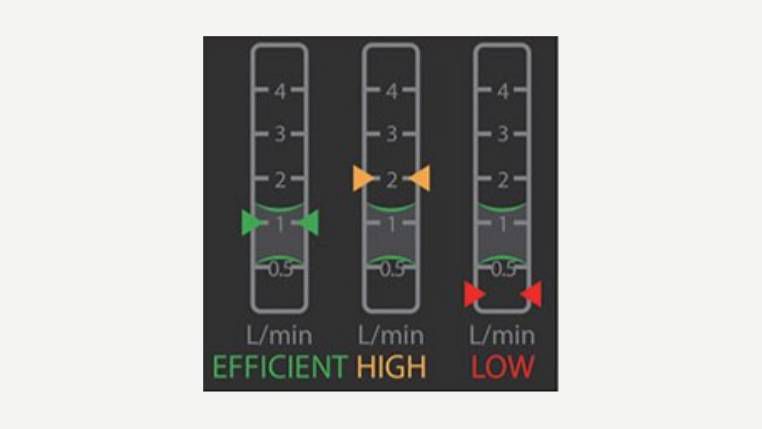

Optimizer
Streamline low flow decisions with this tool, which tells clinicians how to use low fresh gas flows and lower agent use.
Optimizer-graphic

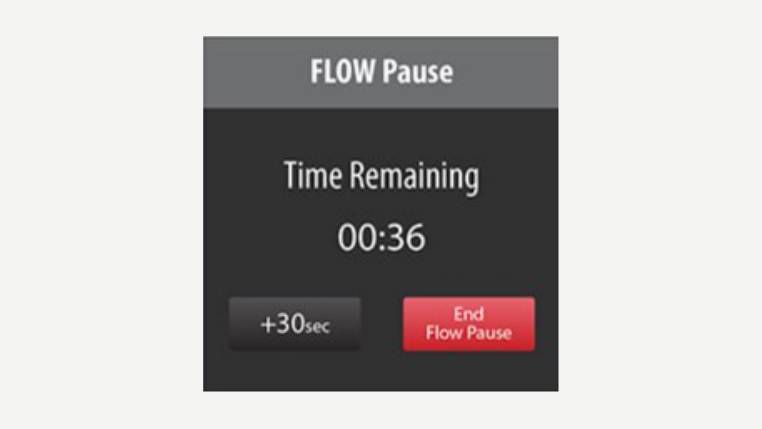

Flow Pause
Flow Pause ensures a gas-leak-free operating environment during intubation, suction, and other operations, safeguarding the health of care providers.
Flow-Pause-graphic

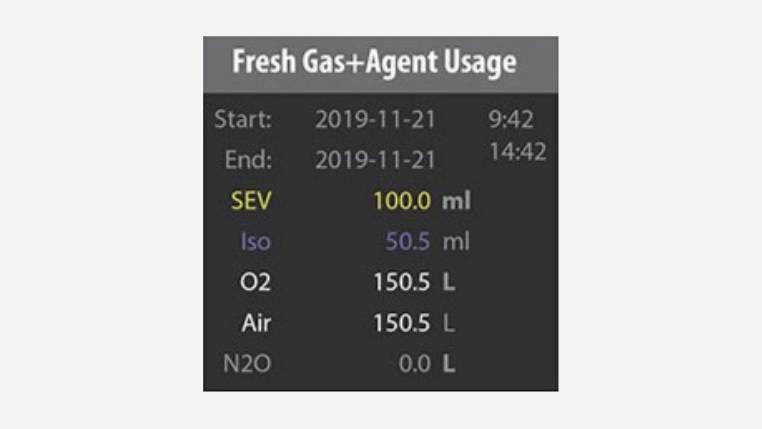

Agent and Gas Usage
Agent and gas measurements track real-time anesthetic agent consumption during and after surgery to deliver the right amount of low-flow anesthesia.
Agent-and-Gas-Usage-graphic

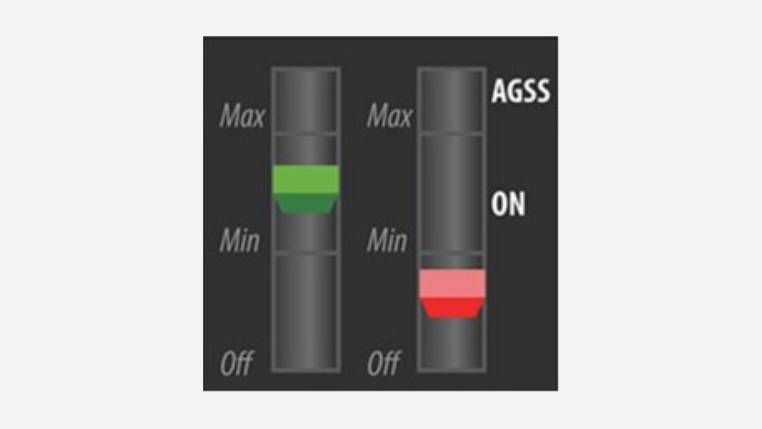

Electronic Anesthetic Gas Scavenging System (e-AGSS)
e-AGSS evaluates scavenging flow levels, displays abnormalities, and automatically turns off when in standby to minimize energy consumption.
e-AGSS-System-graphic
System Status Indicators to Boost Efficiency

The A9 Anesthesia Workstation has VE and system status indicators to enable quick troubleshooting. VE indicators, which act as virtual bellows, show breath pattern, mode, and tidal volume. The real-time system status indicators provide clear prompts to enable easy current mode surveillance.

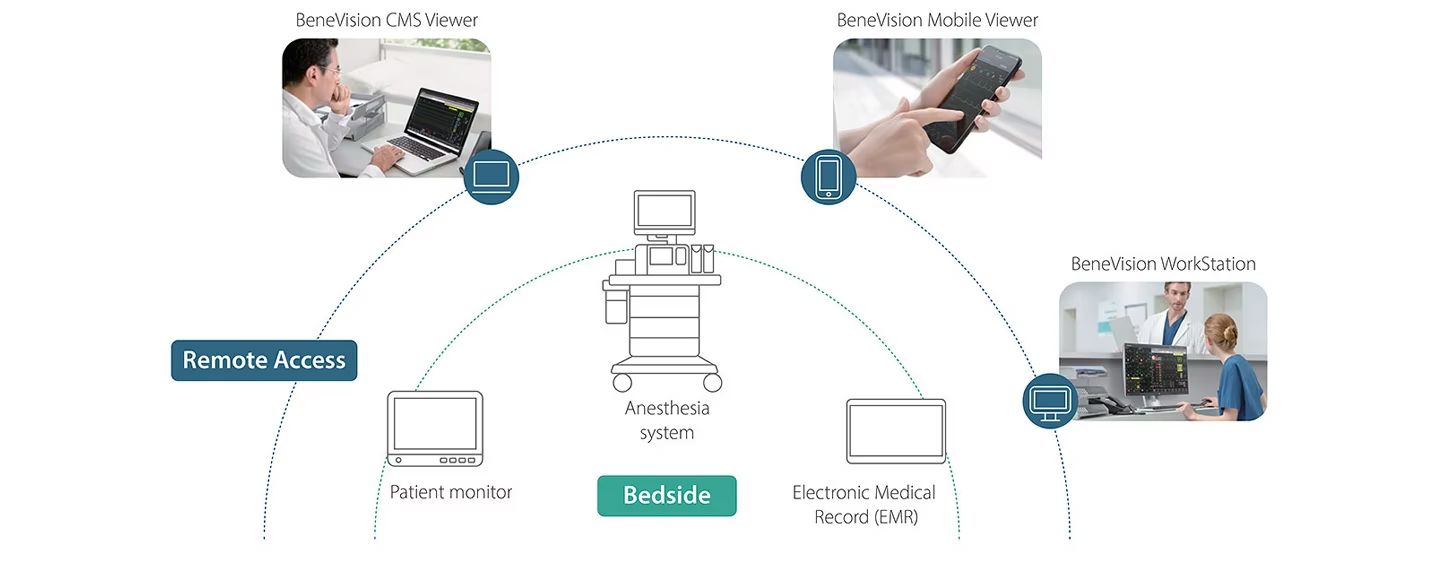

Seamless and Secure Integration and Connectivity

Integrate and connect the A9 seamlessly and easily with monitors, information systems, and other IT infrastructure to improve patient care and perform various clinical duties.

integration-and-connectivity

Three-Year Warranty Coverage for Your Peace of Mind

Mindray provides a three-year warranty coverage on the A9, allowing you to protect your investment and offer perioperative care with confidence. We assure system dependability during its lifecycle.
