  • Patient Data When and Where You Need It

    BeneVision DMS Central Monitoring System

    The Mindray BeneVision Distributed Monitoring System (DMS) is a powerful and scalable solution that provides continuous, real-time access and surveillance across large and small healthcare networks. The BeneVision DMS integrates and displays patient information from networked bedside monitors, vital signs monitors, wireless transport solutions, and telemetry transmitters – up to 1,200 devices across the enterprise, locally, and remotely.

    With customized architecture, the BeneVision DMS meets varying needs within the hospital, from small observation units to combined critical care units to the larger centralized monitoring environment. Utilizing flexible, role-based functionality controlled through clinical authentication, BeneVision WorkStations enable access to specified care areas and are configurable based on desired levels of interaction. BeneVision WorkStations also offer advanced toolsets for improved, streamlined clinical decision-making, including ST Graphic, 24-hour ECG summary, vital signs summary, Caliper Measurement, and Hemosight.

    BeneVision DMS supports improved workflow across every hospital department, particularly within centralized telemetry. Features such as auto-hide, to hide unused patient sectors displayed, and a single interactive patient view, to provide a complete view of the patient from four BeneVision WorkStations, empower clinicians to work more efficiently, no matter the setting.

Key Features

  • Single server supports 32 or 64 beds/sectors; Enterprise server supports 128 beds/sectors
  • Enterprise solution can be configured for high availability or disaster recovery with shared storage to maximize uptime
  • WorkStation with up to three widescreen displays supports monitoring up to 64 patients across care units
  • Gesture-driven, PCT touchscreen interface
  • Review complete historical physiological data for a current or previously discharged patient
  • Patient Summary views provide an aggregate of patient vital signs or ECG and corresponding alarm data
  • Up to 32 scalable WorkStations configurable from fully interactive to view only and a maximum of 120 WorkStations on the network
  • Remote and mobile access via Microsoft® Windows®, iOS, or Android-based smartphones, tablets, and PCs via the CMS Viewer or CMS Mobile application software
  • Bidirectional communication with Patient Monitors, Vital Signs, and Telemetry
  • Provides up to 240 hours of full disclosure waveforms
  • Historical database enables review of over 1,000 discharged patients
  • Documentation options include PDF export, network printer, and dual-trace recorder

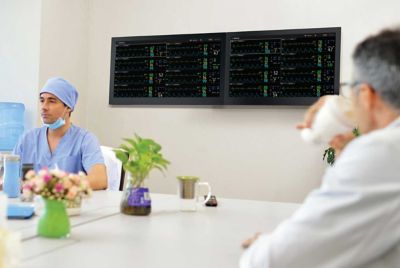

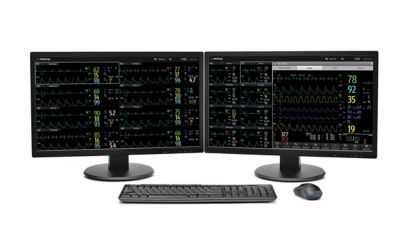

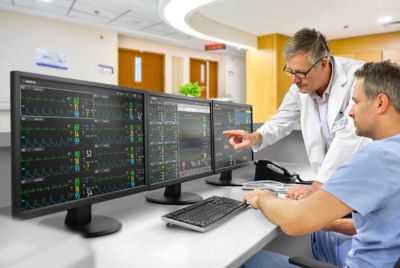

Product Images and Scenario

Resources

Video
Expand Your View with BeneVision N-Series
Video
BeneVision Distributed Monitoring System

Mindray CARE Team Support

When you invest in Mindray solutions, you gain access to the Mindray CARE Team - a service organization dedicated solely to ensuring you get the most use out of your equipment, so you can ensure your patients get the most out of their care. Our dedicated field service team and in-house technical support organization represent one of the largest direct service teams in the industry.

Purchase from Mindray includes comprehensive clinical training and 24/7 remote technical support
