The new Mindray A-Series Plus Anesthesia Systems meets the demands of the perioperative environment with integrated solutions that deliver precision, seamless data, and efficient workflows in three compact machines. Built on the foundation of the Mindray A-Series Advantage platform, the A-Series Plus offers meaningful workflow improvements across all care settings.
Maximize Patient Safety
Reinforce clinical confidence at every stage of care with built-in safety intelligence and adaptable ventilation features that empower clinicians to respond decisively, even in the most demanding cases.
- Immediate oxygenation support with integrated high flow nasal cannula (HFNC)
- ICU-level ventilation delivers a comprehensive suite of ventilation features and modes to support better clinical outcomes
- Protective ventilation toolkits to prevent PPCs
Complement Clinical Workflow
Enhance workflow through intuitive ease of use and efficient design, allowing clinical teams to focus on delivering exceptional patient care.
- Compact footprint frees up valuable space in the OR
- One simplified user interface shared across platforms
- Configurable AGM, BIS & NMT monitoring modules
Enhance Efficiency
Automated decision support helps optimize fresh gas flow, reduce agent waste and operational costs, and empower clinicians to deliver cost-effective, high-quality care.
- Low-flow anesthesia delivery tools
- Flow Pause temporarily stops fresh gas output into the OR
- Integrated warmed breathing system reduces moisture and maintenance
Compare A-Series Plus Anesthesia Systems
Three purpose-built anesthesia systems. One consistent platform. Compare the A4 Plus, A5 Plus, and A7 Plus to find the right fit for your clinical environment.
|
Feature
|
Streamlined capability without unnecessary complexity
|
Scalable capabilities for a range of care settings
|
Advanced ventilation and precise gas delivery for complex cases
|
|---|---|---|---|
| Environment | Ambulatory surgery centers (ASCs) | ASCs, non-operating room anesthesia (NORA) procedural rooms, and community hospitals | High-acuity operating rooms |
| Display | 15.6-inch capacitive touchscreen | 15.6-inch capacitive touchscreen | 18.5-inch capacitive touchscreen |
| Integrated HFNC | |||
| Optimizer | Optional | Optional | |
| Agent Usage Software | Optional | Optional | |
| Ventilation Capabilities | Controlled, and spontaneous ventilation modes. Assisted modes optional. | Controlled, and spontaneous ventilation modes. Assisted modes optional. | Controlled, assisted, and spontaneous ventilation modes |
| Lung Recruitment Tools | Not Available | Optional | Optional |
| Adaptive Minute Ventilation (AMV) | Not Available | Optional | Optional |
| Flow Pause | Not Available | ||
| Flow Control | Mechanical | Mechanical | Digital |
| Integrated Warmed Breathing System | |||
| Compatible Monitoring Modules | Gas module | Gas module, BIS, and NMT | Gas module, BIS, and NMT |
| Customizable Display | Up to five waveforms, mini-trends, and advanced parameters | Up to five waveforms, mini-trends, and advanced parameters | Up to five waveforms, mini-trends, and advanced parameters |
| Workspace Options | Compact footprint with optional flip-up worktable and top shelf | Compact footprint with optional flip-up worktable and top shelf | Compact footprint with optional flip-up worktable and top shelf |
| Anesthesia Dashboard | |||
| Warranty | Three years | Three years | Three years |
| Support | 24/7 technical support, service portal access, biomedical training, and post-warranty repair options | 24/7 technical support, service portal access, biomedical training, and post-warranty repair options | 24/7 technical support, service portal access, biomedical training, and post-warranty repair options |
The right A-Series Plus model depends on your care setting, case mix, clinical requirements, available space, and desired ventilation capabilities.

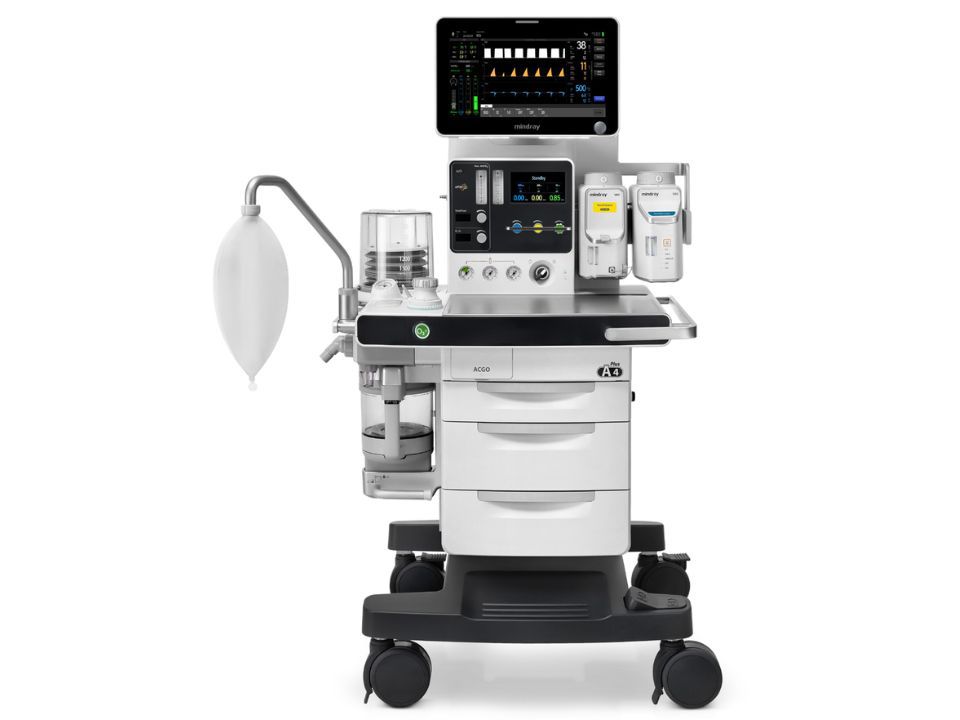

- A4 Plus: A streamlined anesthesia system designed for ambulatory surgery centers

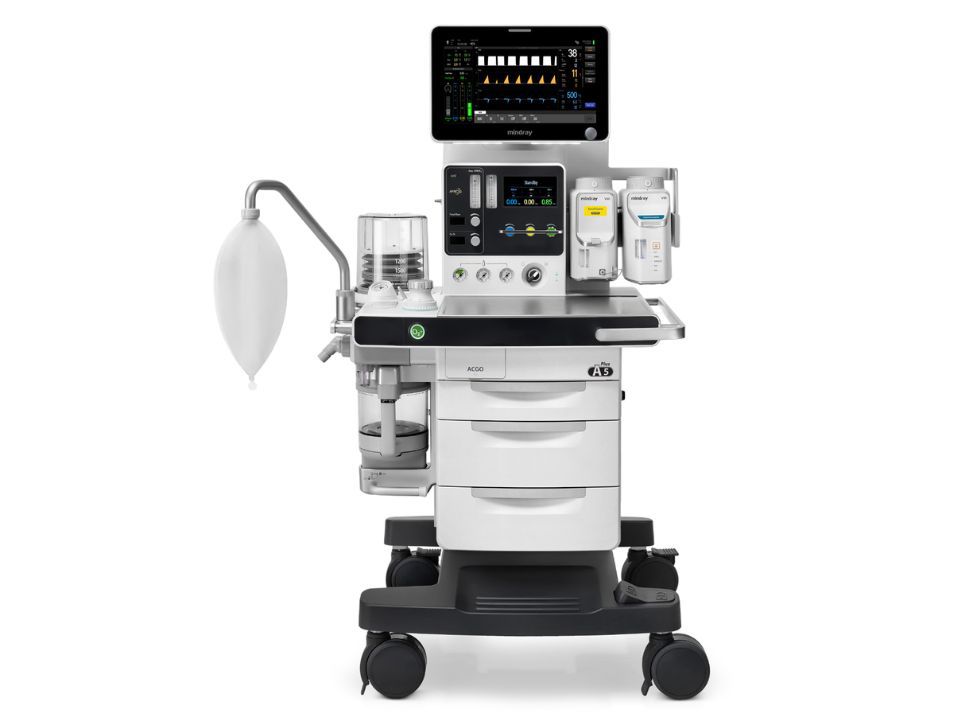

- A5 Plus: A scalable system for ASCs, non-operating room anesthesia (NORA) locations, procedural rooms, and community hospitals

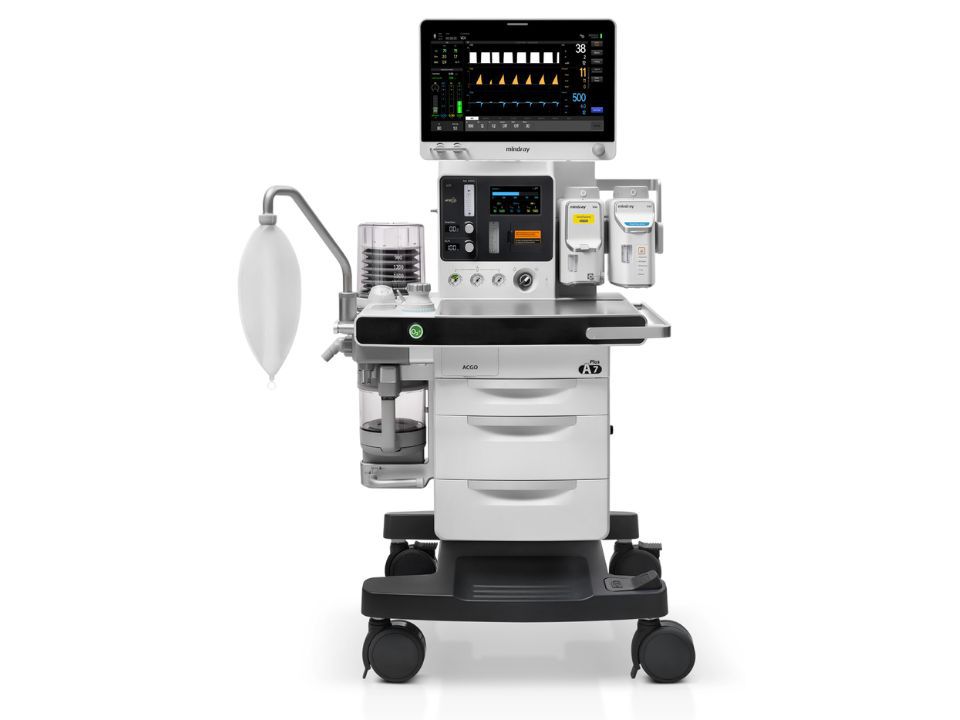

- A7 Plus: An advanced system for high-acuity operating rooms that require advanced ventilation capabilities, precise gas delivery, and additional clinical tools
All three models feature a consistent user interface, integrated High Flow Nasal Cannula, and Optimizer™ for low-flow anesthesia delivery.
Each A-Series Plus model is purpose-built for a different care environment.
The A4 Plus delivers streamlined clinical capabilities for ambulatory surgery centers. The A5 Plus offers a flexible configuration that can scale from ASCs to NORA locations, procedural rooms, and community hospitals. The A7 Plus supports high-acuity operating rooms with advanced ventilation capabilities and precise gas delivery.
The A4 Plus and A5 Plus feature 15.6-inch capacitive touchscreens. The A7 Plus features an 18.5-inch capacitive touchscreen and an electronic flowmeter with electronic controls.
Yes. The A4 Plus is designed for ambulatory surgery centers that need a streamlined anesthesia system without compromising clinical capability. Its compact footprint and intuitive interface support efficient workflows as the range and complexity of ambulatory procedures continue to grow.
The A-Series Plus supports controlled, assisted, and spontaneous ventilation modes, including:
- Control: VCV, PCV, PCV-VG, APRV
- Assist: SIMV-VC, SIMV-PC, SIMV-VG, and AMV
- Spontaneous: CPAP and pressure support
Additional capabilities include one-step or multi-step Lung Recruitment maneuver tools and Adaptive Minute Ventilation, which selects ventilation parameters based on the patient’s ideal body weight.
Feature availability and configuration should be confirmed for the model under consideration.
Yes. High Flow Nasal Cannula (HFNC) is integrated into the Air/O₂ blender on the A4 Plus, A5 Plus, and A7 Plus.
Integrated HFNC provides immediate access to oxygenation support without requiring separate external equipment. It supports adjustable FiO₂ and seamless recording into the patient record, helping create a more streamlined workflow from the beginning of the case.
Yes. The A-Series Plus provides tools and respiratory information designed to support lung-protective ventilation strategies.
Available guidance includes:
- Tidal Volume/Ideal Body Weight Indicator
- Driving pressure
- Mechanical power
- Inspiratory and expiratory hold tools
- Lung Recruitment maneuvers
- Advanced ventilation modes, including APRV and AMV
This information is displayed in real time to help clinicians evaluate respiratory mechanics and make individualized ventilation decisions.
Optimizer provides guidance to support more precise low-flow anesthesia delivery. When used with Agent Usage software, it helps clinicians evaluate fresh gas flow and anesthetic agent consumption during a case.
Flow Pause allows clinicians to reposition or intubate a patient without unnecessarily releasing anesthetic agent into the room or atmosphere.
By keeping agent contained during these workflow interruptions, Flow Pause can help reduce agent waste and limit unnecessary environmental release. Flow Pause is available on the A5 Plus and A7 Plus.
Yes. The Anesthesia Dashboard provides a centralized platform for monitoring, managing, and reviewing essential anesthesia data.
The dashboard helps make information accessible for decision-making and equipment maintenance while supporting a customizable, hospital-owned data environment. Integration and configuration requirements should be reviewed with Mindray for your facility.
The total cost of ownership extends beyond the initial purchase price. A complete evaluation may include:
- Anesthetic agent consumption
- Preventive maintenance
- Repair and service requirements
- Warranty coverage
- Clinical and biomedical training
- Accessories and consumables
- Data-management requirements
- Equipment downtime
- Fleet standardization
Relevant A-Series Plus considerations include Optimizer, Agent Usage software, the integrated warmed breathing system, the Anesthesia Dashboard, warranty coverage, and access to technical support.
The A-Series Plus comes with a three-year warranty backed by the Mindray CARE Team.
Buyers should review the complete warranty terms, covered components, service provisions, and available post-warranty options as part of the purchasing process.
