Adaptability

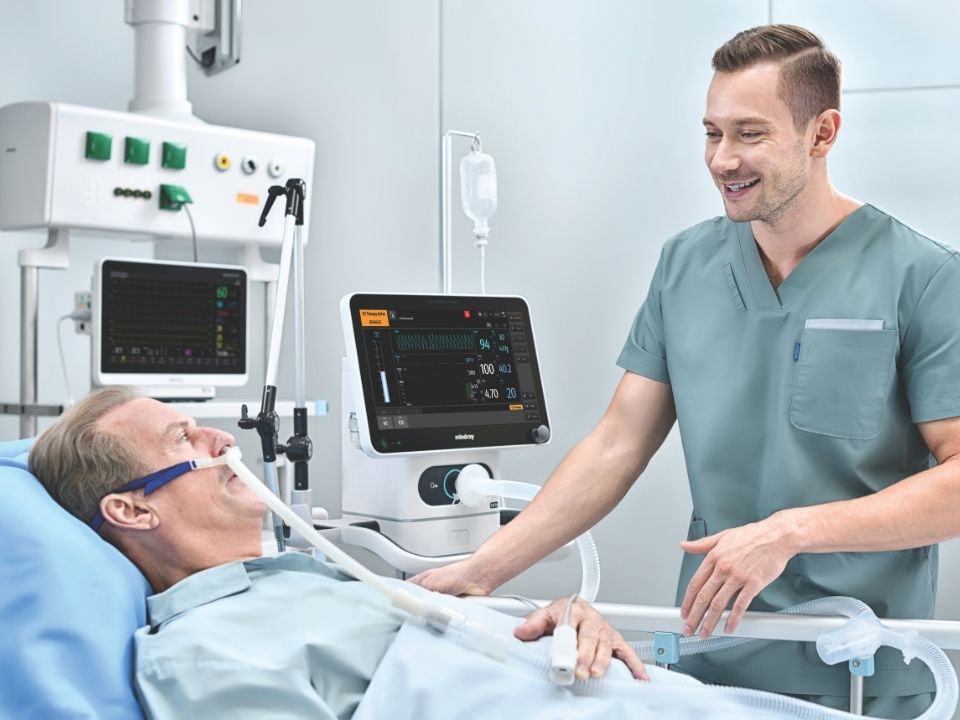

The SV70 adjusts to each patient’s evolving respiratory needs through seamless transitions between non-invasive ventilation and high-flow oxygen therapy, enabling clinicians to provide precise, safe, and adaptable care in an intuitive, easy-to-use device.
Simplicity
An intuitive interface, easy-to-follow prompts, and familiar terminology, such as Volume Assured Pressure Support (VAPS), ensure clinicians can quickly and confidently set up and deliver precise, safe respiratory care without added complexity.
Clinical Confidence
Strengthen clinical confidence with connected, decision-supporting features that help clinicians monitor trends, maintain continuity of care, and identify when escalation may be needed.
Inside the Design

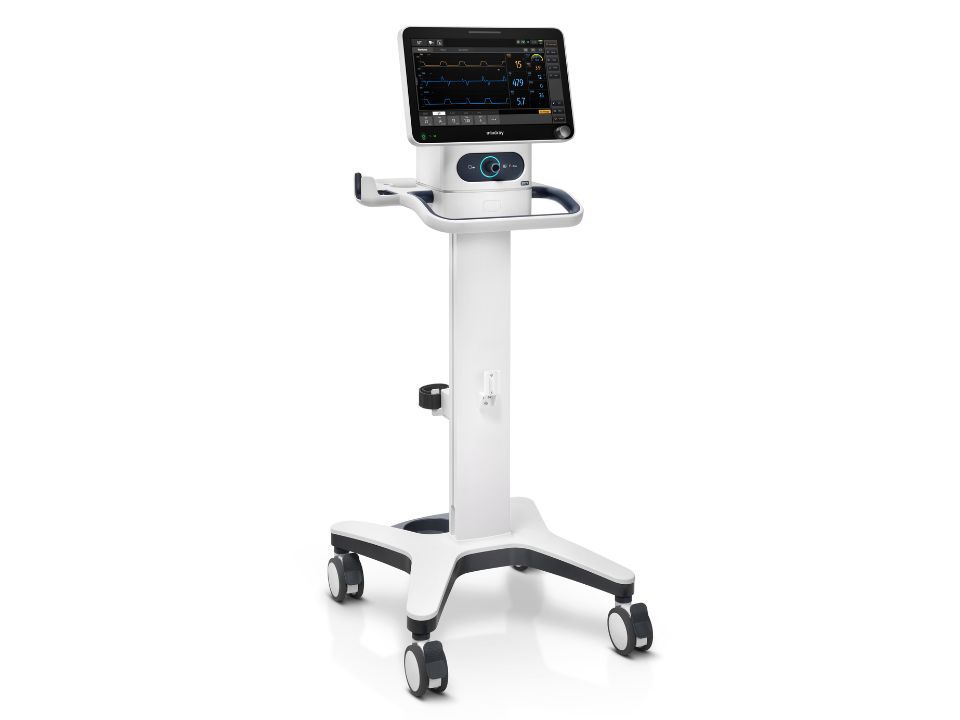

The SV70 is equipped for demanding care environments, pairing precise ventilation control with purpose-built features that help streamline clinical workflows.
Expertise You Can Count on From the First Breath Forward
Supporting healthcare professionals starts with our state-of-the-art technology, but that’s not where we stop.
Uncompromising Non-Invasive Care
When care is non-negotiable, so is your technology.
We’re here to help you deliver uncompromising care — today and into the future. Mindray is proven worldwide, with more than 100,000 ventilators in use globally. That experience, driven by continuous innovation and quality, allows us to stand behind our products with an industry-leading warranty. The SV70 offers peace of mind with its three-year warranty and cost-saving versatility, while also combining multiple modalities into a single device to reduce the need for additional capital equipment.
In addition to the initial three-year coverage, the Mindray CARE Team is committed to exceptional service post-sale. Options include:
- Biomedical Engineer Training
- Post-Warranty Service Offerings
- 24/7 Access to Mindray Certified Field Service Engineers
The Next Innovation in Non-Invasive Ventilation
The newest addition to the SV-Series Portfolio. The SV70 Ventilator addresses the evolving needs in non-invasive ventilation, underscoring Mindray’s commitment to advancing respiratory care.

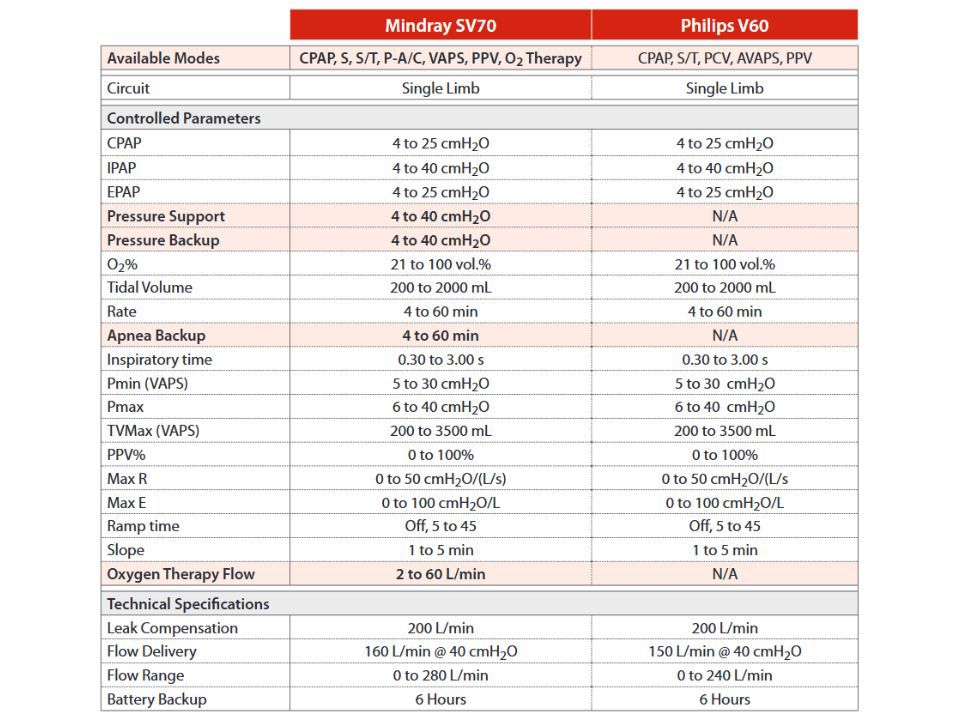

Mindray SV70 vs. Philips V60 Comparison Chart
| Mindray SV70 | Philips V60 | |
|---|---|---|
| Available Modes | CPAP, S, S/T, P-A/C, VAPS, PPV, O2 Therapy | CPAP, S/T, PCV, AVAPS, PPV |
| Circuit | Single Limb | Single Limb |
| Controlled Parameters | ||
| CPAP | 4 to 25 cmH2O | 4 to 25 cmH2O |
| IPAP | 4 to 40 cmH2O | 4 to 40 cmH2O |
| EPAP | 4 to 25 cmH2O | 4 to 25 cmH2O |
| Pressure Support | 4 to 40 cmH2O | N/A |
| Pressure Backup | 4 to 40 cmH2O | N/A |
| O2 % | 21 to 100 vol.% | 21 to 100 vol.% |
| Tidal Volume | 200 to 2000 mL | 200 to 2000 mL |
| Rate | 4 to 60 min | 4 to 60 min |
| Apnea Backup | 4 to 60 min | N/A |
| Inspiratory Time | 0.30 to 3.00 s | 0.30 to 3.00 s |
| Pmin (VAPS) | 5 to 30 cmH2O | 5 to 30 cmH2O |
| Pmax | 6 to 40 cmH2O | 6 to 40 cmH2O |
| TVMax (VAPS) | 200 to 3500 mL | 200 to 3500 mL |
| PPV% | 0 to 100% | 0 to 100% |
| Max R | 0 to 50 cmH2O/(L/s) | 0 to 50 cmH2O/(L/s) |
| Max E | 0 to 100 cmH2O/L | 0 to 100 cmH2O/L |
| Ramp Time | Off, 5 to 45 | Off, 5 to 45 |
| Slope | 1 to 5 min | 1 to 5 min |
| Oxygen Therapy Flow | 2 to 60 L/min | N/A |
| Technical Specifications | ||
| Leak Compensation | 200 L/min | 200 L/min |
| Flow Delivery | 160 L/min @ 40 cmH2O | 150 L/min @ 40 cmH2O |
| Flow Range | 0 to 280 L/min | 0 to 240 L/min |
| Battery Backup | 6 Hours | 6 Hours |
Mindray SV70 Non-Invasive Ventilator FAQs
Yes. The Mindray SV70 is a comparable — and in some cases expanded — replacement for the Philips V60, preserving familiar workflows while adding additional capabilities. Please see our comparison chart above for detailed information.
Yes. The Mindray SV70 uses a single-limb circuit, the same configuration found on the Philips V60. This shared design makes the SV70 a natural replacement and simplifies the transition for hospital clinicians, since existing circuit setup, handling, and workflow knowledge carries over directly with no relearning curve.

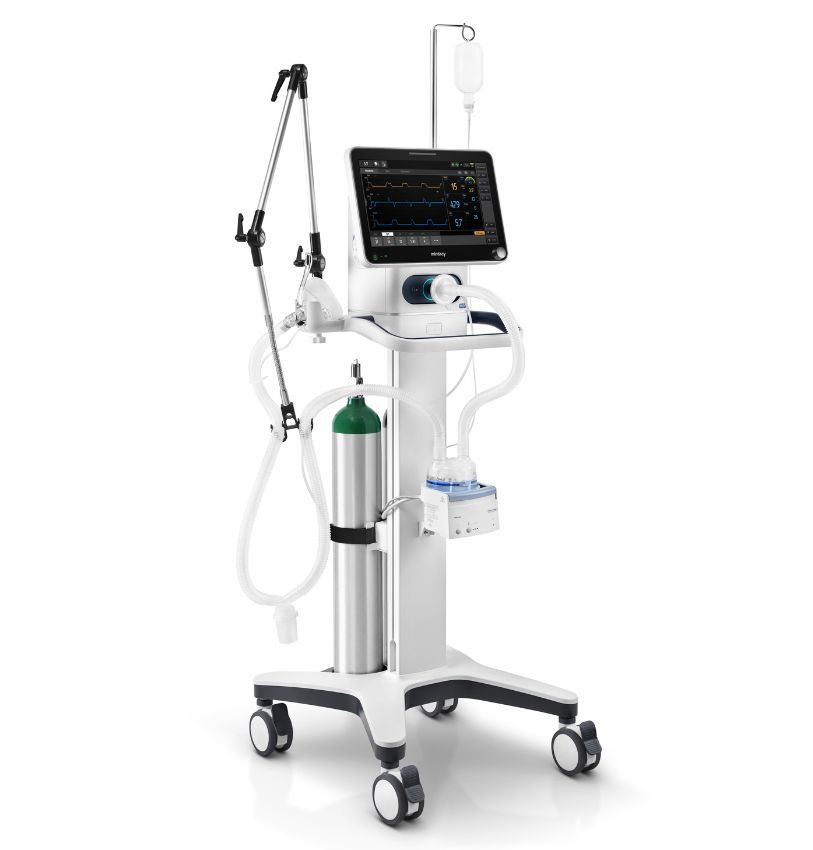

As a hospital non-invasive ventilator, the SV70 pairs its single-limb circuit with a full range of mask interfaces and built-in leak management for innovative non-invasive ventilation.
Key single-limb capabilities include:
- Single-limb circuit: Matches the Philips V60 configuration, preserving familiar setup and clinical workflows
- Flexible mask interfaces: Supports oro-nasal masks, nasal masks, and total face masks for non-invasive ventilation across adult and pediatric patients
- Leak compensation up to 200 L/min: Automatically calculates and compensates for circuit and mask leak, helping maintain stable pressure delivery and accurate monitored values
- Simplified V60 transition: The matching single-limb design means clinical teams can adopt the Mindray SV70 NIV ventilator without retraining on circuit assembly
This combination makes the SV70 a dependable non-invasive ventilation device for hospitals replacing the Philips V60 while keeping clinical operations consistent.
The Mindray SV70 is a professional-grade non-invasive ventilator (NIV) designed for adult and pediatric patients in hospital and clinical settings. It delivers six ventilation modes — CPAP, S, S/T, P-A/C, VAPS, PPV, as well as O2 Therapy — supported by EasySync™ synchrony enhancement technology and a 15.6-inch touchscreen interface. The SV70 is purpose-built for patients with respiratory failure, chronic respiratory insufficiency, or obstructive sleep apnea who require non-invasive ventilation support. It is intended for use in professional healthcare facilities and supports patients with a minimum body weight of 20 kg across both invasive and non-invasive configurations.
The Mindray SV70 NIV ventilator uses widely recognized ventilation terminology such as VAPS (Volume Assured Pressure Support), which
aligns with commonly used concepts in non-invasive ventilation. This helps clinicians quickly interpret settings and adapt to the system, especially those transitioning from the V60.
The Mindray SV70 is designed for adult and pediatric patients (≥20 kg) who require non-invasive ventilation support, including those experiencing acute or chronic respiratory insufficiency or obstructive sleep apnea.
The Mindray SV70 is a suitable replacement for the Philips V60 BiPAP ventilator. As a purpose-built hospital non-invasive ventilator (NIV), the SV70 operates on a single-limb circuit and delivers a comprehensive set of clinical capabilities — making it an operationally sound choice for facilities transitioning to a new NIV platform.
The SV70 supports six ventilation modes — CPAP, S, S/T, P-A/C, VAPS, PPV, as well as O2 Therapy — covering the full clinical range required for adult and pediatric patients with respiratory failure, chronic respiratory insufficiency, or obstructive sleep apnea. Key clinical capabilities include:
- EasySync™ synchrony technology: Multi-signal analysis across pressure, flow, and turbine sensing to maximize patient-ventilator synchrony and comfort during non-invasive ventilation
- Single-limb circuit: Streamlined circuit configuration that supports efficient setup and preserves clinical workflows across care settings
- Leak compensation up to 200 L/min: Automatic compensation for mask and circuit leak, maintaining stable pressure delivery and accurate monitored values
- Integrated monitoring: Built-in SpO2, CO2, and real-time ROX index calculation, plus continuous PEEPi monitoring without additional sensors
- Six-hour battery backup: Dual-battery configuration supports patient transport and uninterrupted care during power interruptions
- Hospital network connectivity: Wireless or wired connectivity to integrate to EMR system
The SV70 is launching in September for professional healthcare facilities that demand a dependable, full-featured NIV ventilator built to meet the demands of modern respiratory care.
The Mindray SV70 hospital-grade non-invasive ventilator offers a comprehensive set of modes, including:
- CPAP
- Spontaneous (S)
- Spontaneous/Timed (S/T)
- Pressure Assist/Control (P-A/C)
- Volume Assured Pressure Support (VAPS)
- Proportional Pressure Ventilation (PPV)
- O₂ Therapy
These modes provide flexibility for a wide range of clinical scenarios.
When evaluating a replacement hospital non-invasive ventilator, clinicians often look for continuity in ventilation modes, patient support capabilities, safety features, and workflow integration. The Mindray SV70 NIV ventilator provides a comprehensive set of modes, monitoring, and connectivity to support clinical continuity in non-invasive ventilation.
The Mindray SV70 helps to minimize transition complexity for hospitals replacing the V60. Both devices use a single-limb circuit, provide 6 hours of battery backup, and share identical ranges across all core ventilation parameters — meaning existing clinical protocols, alarm limits, and parameter targets transfer directly without reconfiguration.
The shared specifications that simplify transition include:
- Circuit type: Single-limb (both devices)
- Battery backup: six hours (both devices)
- Identical parameter ranges: CPAP, IPAP, EPAP, O2%, Tidal Volume, Rate, Inspiratory Time, Pmin, Pmax, VtMax, PPV%, Ramp Time, Slope, and more are matched precisely
- Familiar interface structure: The SV70's 15.6-inch touchscreen with master control knob supports intuitive, one-step routine operation
With a user-friendly touchscreen interface, logical menu structure, and commonly used ventilation modes (CPAP, S, S/T, P-A/C, VAPS, PPV), the Mindray SV70 supports fast onboarding for clinical teams learning a new hospital non-invasive ventilator.
The Mindray SV70 features a user-friendly touchscreen interface, customizable settings, and integrated alarm systems. These features support efficient clinician workflows when implementing a new non-invasive ventilation device into daily use.
