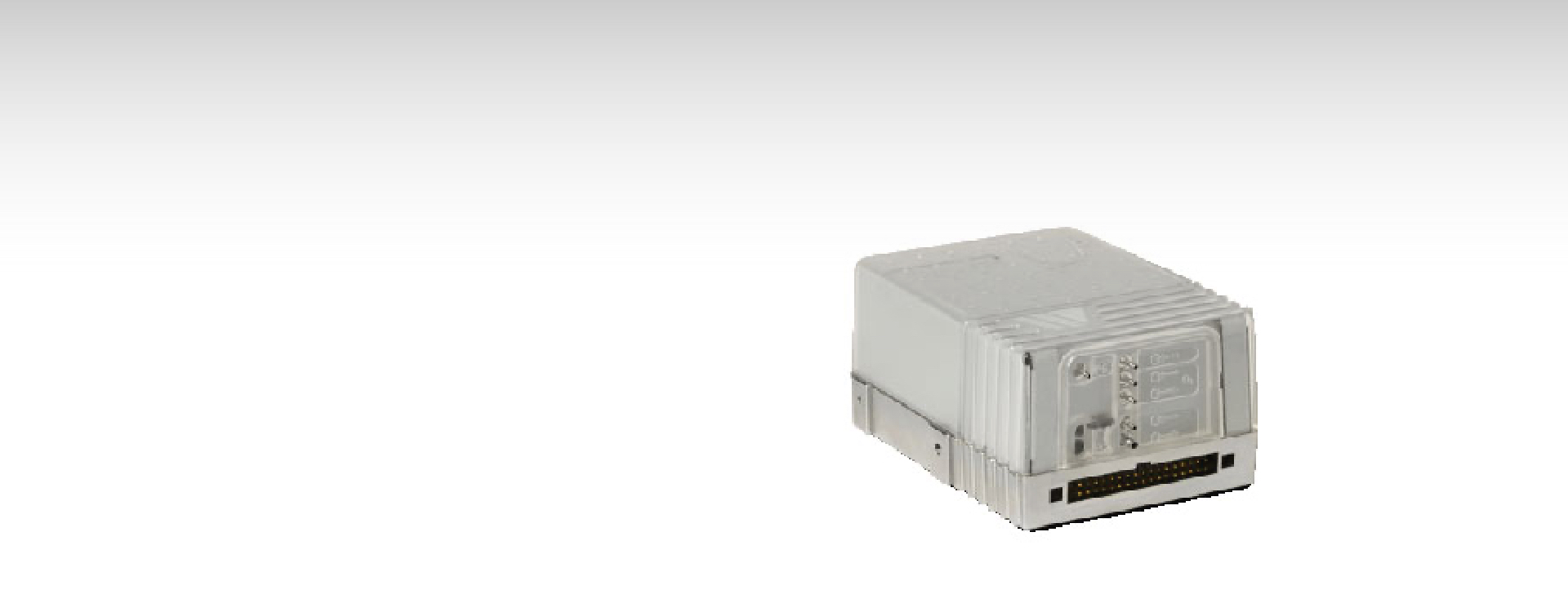

The AION™ ADS is a sidestream muligas analyzer intended for use in the control loop of high-end anesthesia delivery systems. It features an ADS mode with extremely fast measurement response. The AION™ ADS can also be set to normal patient monitoring mode.
Key features:
- NDIR side stream gas analyzer
- Measures CO₂, N₂O, Halothane, Isoflurane, Enflurane, Sevoflurane and Desflurane in any mixture
- ADS mode with ultra-fast measurement response
- Interfaces to paramagnetic oxygen sensors
- Automatic identification of two anesthetic agents
- Calculates inspired and expired concentrations of all gases
- Generates up to five simultaneous waveforms
- Fast warm up (ISO specification within 45 seconds, full accuracy within 10 minutes)
- Flow controlled gas sampling pump, 70-200 ml/min user selectable gas sampling flow
- RS232 host interface
- External reference gas inlet.
- Small size 80 x 107 x 51.5 mm (3.1" x 4.2" x 2")
- Low power consumption (typically less than 3.7 W)
- Market leading reliability, proven MTBF greater than 40.000 h.
- Connects directly to Artema DRYLINE™ Water Traps
