H-120
Precision Assured, Optimized Performance
Precision Assured, Optimized Performance

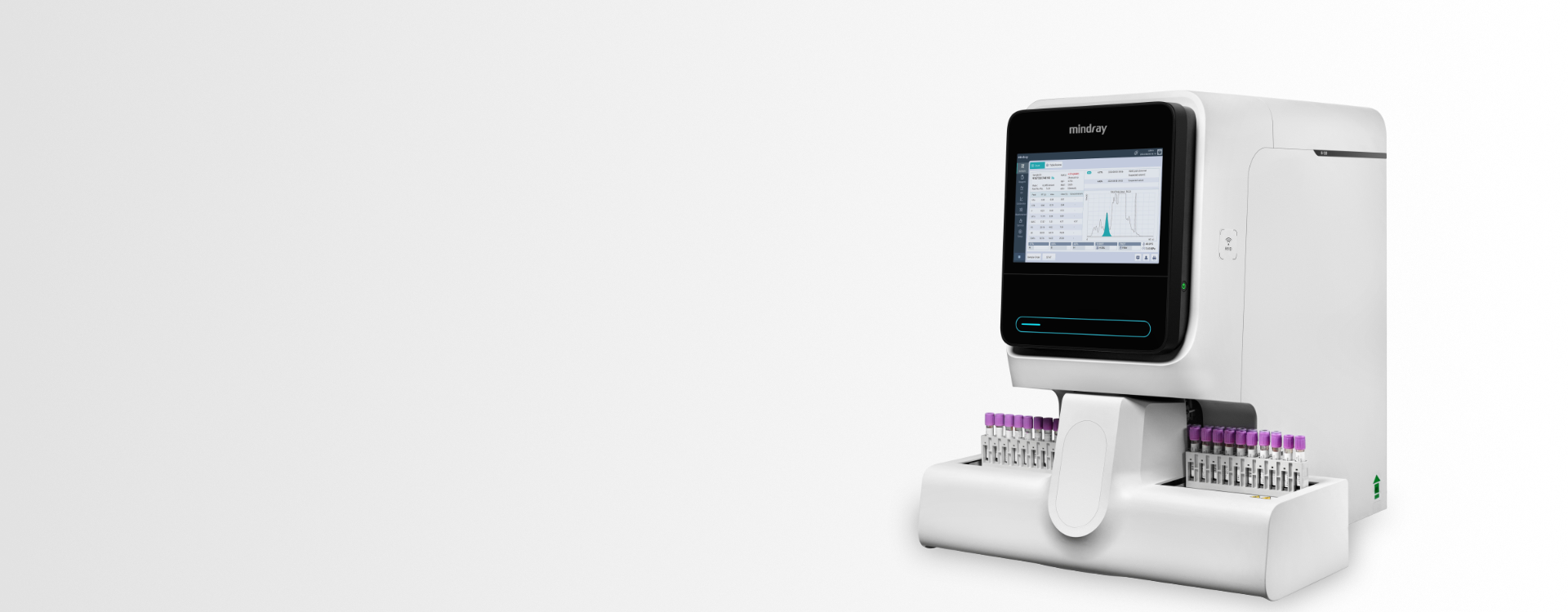

H-120 Automated Glycohemoglobin Analyzer
High-throughput anti-variants interference
High-precision measurements
Flexible Configuration to meet all kinds of demands
High-throughput Anti-variants Interference
| Test Mode |
Throughput (test per hour) |
Description |
| Standard Mode | 120 | Flags 6 hemoglobin variant interferences (HbS/HbC/HbD/HbE/HbJ-Bangkok/HbUbe-2) as "Suspected variant" and automatically switches to variant mode. |
| Variant Mode | 60 | Resistant to interference from 4 hemoglogin variants (HbS/HbC/HbD/HbE) and provides variant type flags. |

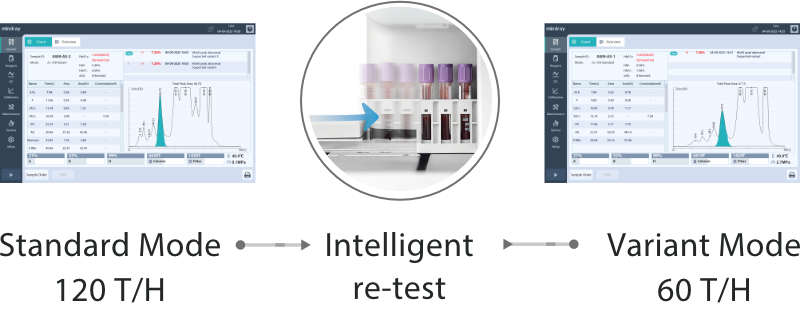

Intelligent mode switching for re-testing
The standard mode and variant mode can be switched automatically, without requiring the replacement of reagents or the column.

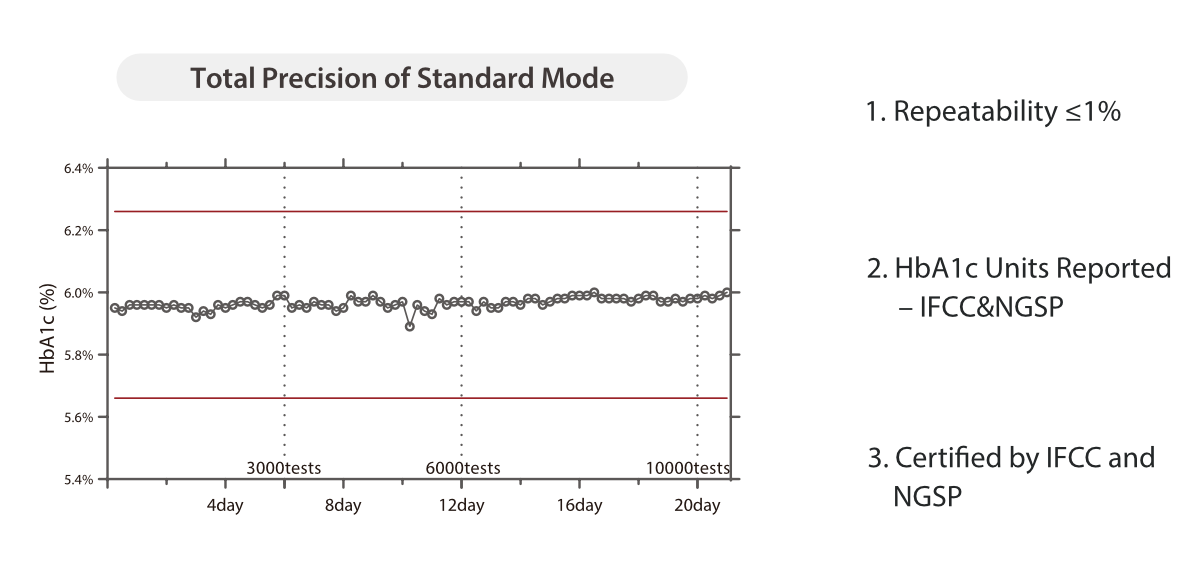

High-precision Measurements

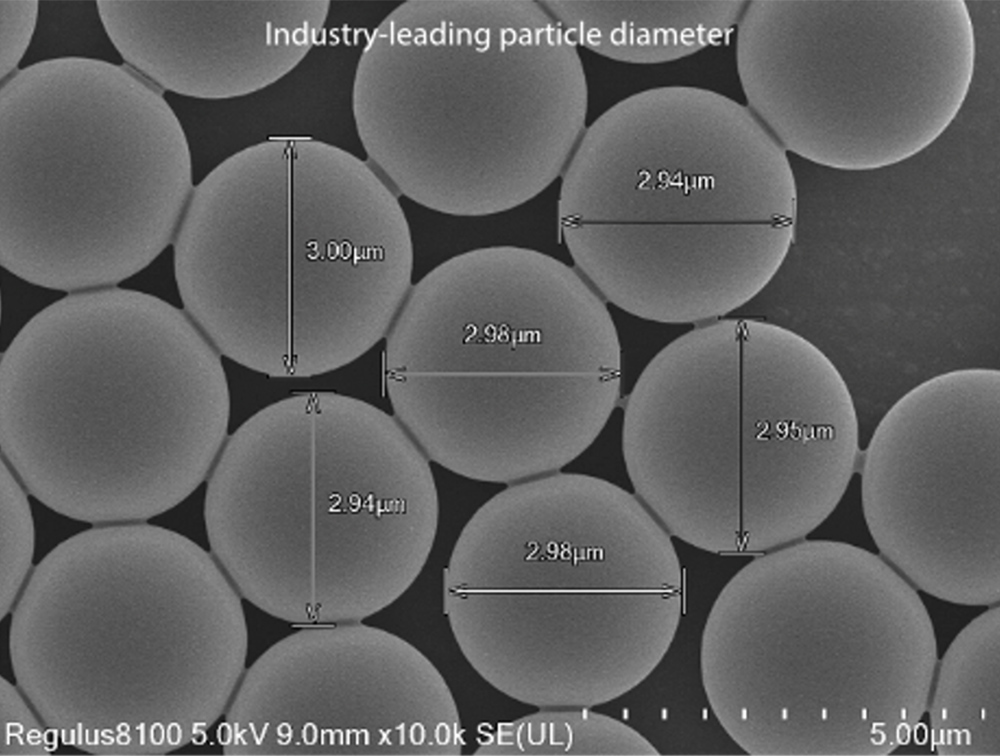

Manufactured with approximately 3 μm average particle size and high-pressure packing technology, achieves superior separation performance.
(Lifespan: Up to 10,000 tests)

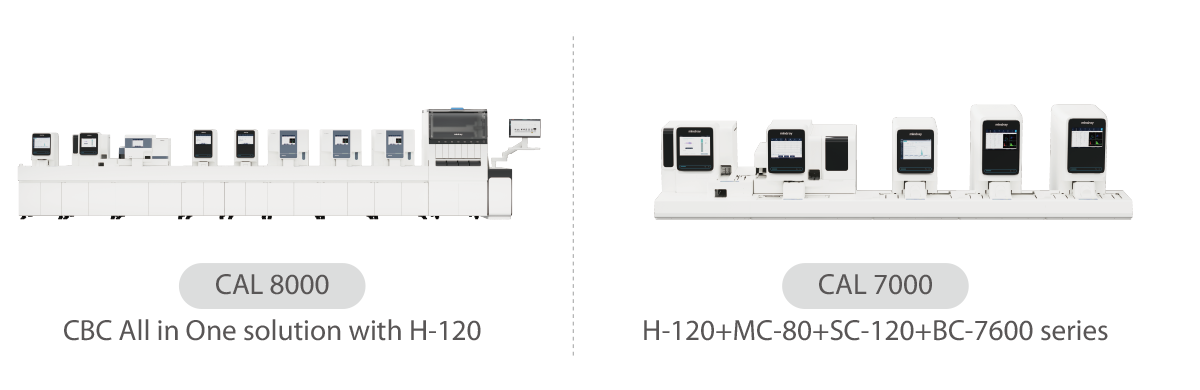

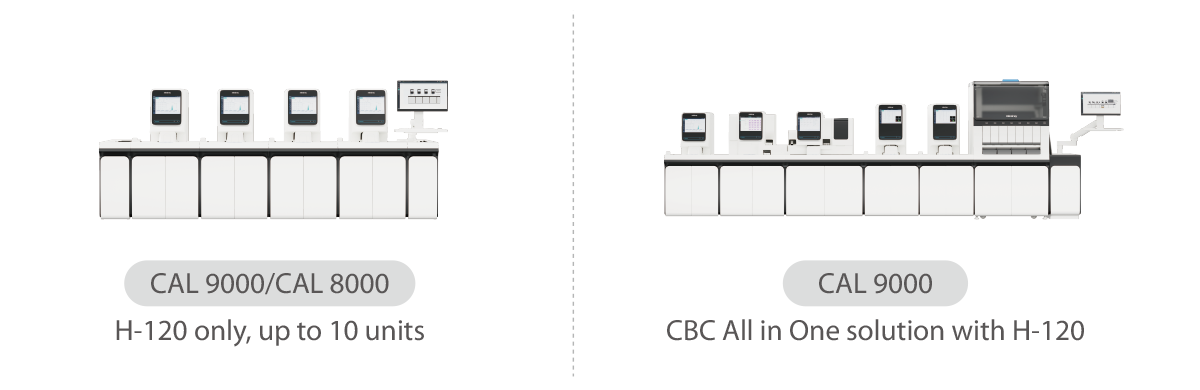

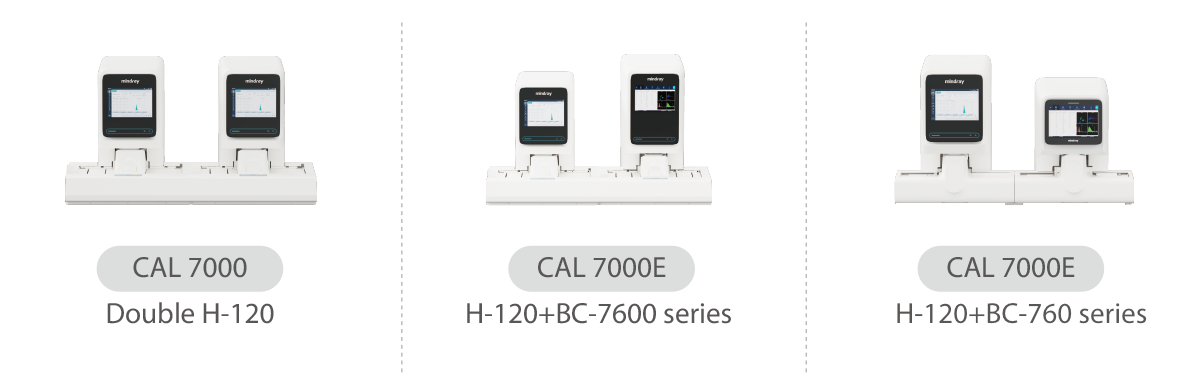

Flexible Configuration to Meet All Kinds of Demands
Technological Breakthrough, Enabling a Fully Integrated HbA1c Testing Workflow
Pressure Retention Technology
For Faster and More Cost-effective Analysis

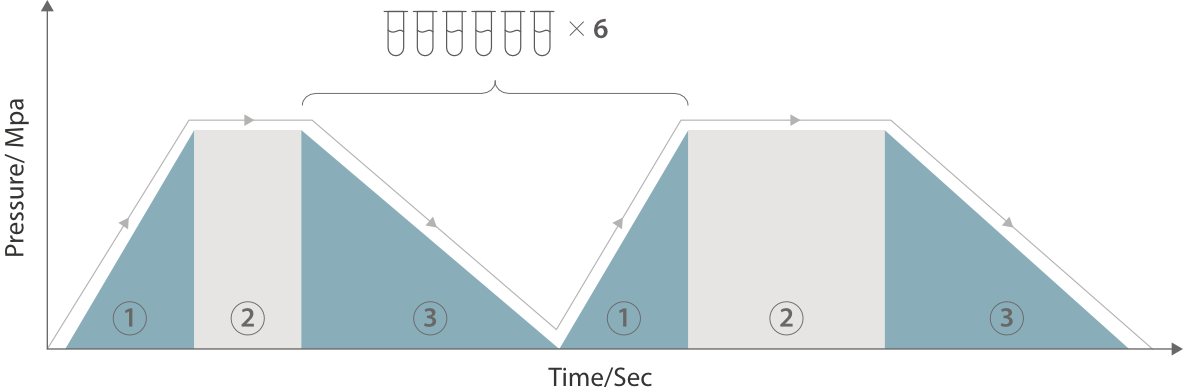

Reagent consumption for traditional solutions - 6 analysis
During interval loading, the system needs to repeatedly build up and depressurize, which consumes additional reagents for six analyses per interval.

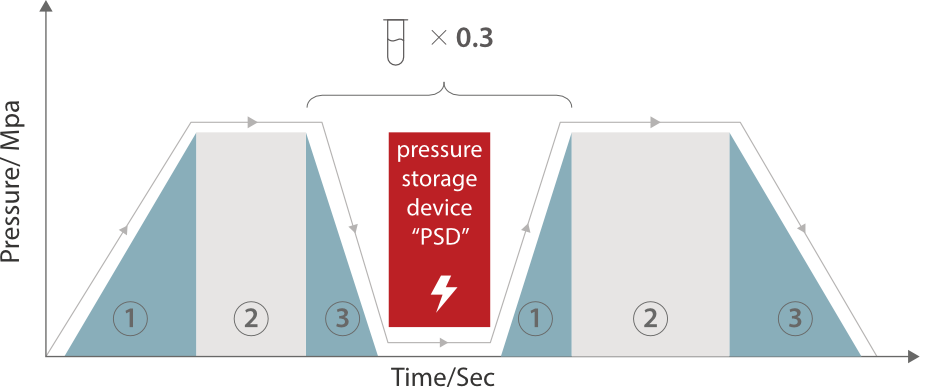

Reagent consumption for Mindray solution - 0.3 analysis
During the interval loading, the pressure storage device provides energy. Each interval only consumes reagents for 0.3 analyses.
① Build-up pressure
② Analysis
③ De-pressurization
Dynamic Sampling Technology
Optimized workflow, no manual dilution or repeated testing required

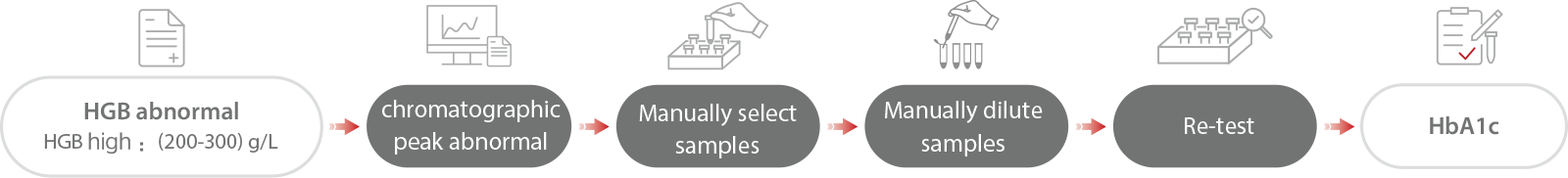

Before
Manual operation is cumbersome and has high biological risks
Additionally, low HGB values (50-90) g/L will also cause abnormalities in chromatographic peaks, leading to inaccurate test results.

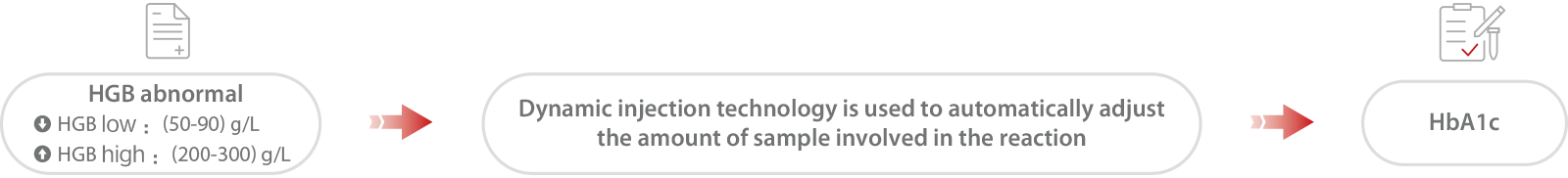

After
Dynamic Sampling Technology, one-step results
* Dynamic Sampling Technology
* Patent No. ZL201610119446.5: Sample analyzer and sample loading control method of sample analyzer
Easy to Replace Reagents and Consumables

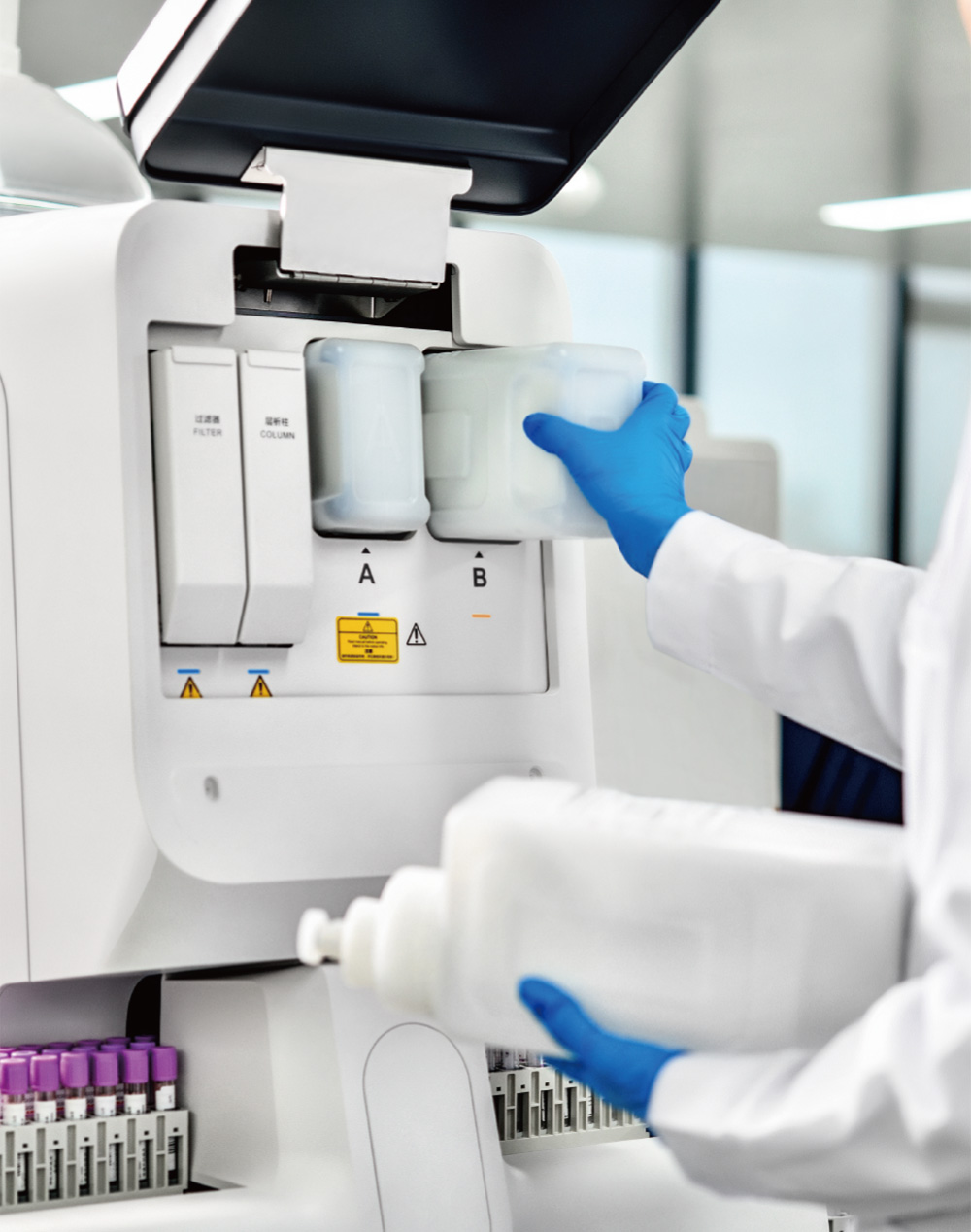

Reagent
- With RFID tag, automated traceability and convenience
- Replace the reagent bottles in two simple steps: insert and pull out

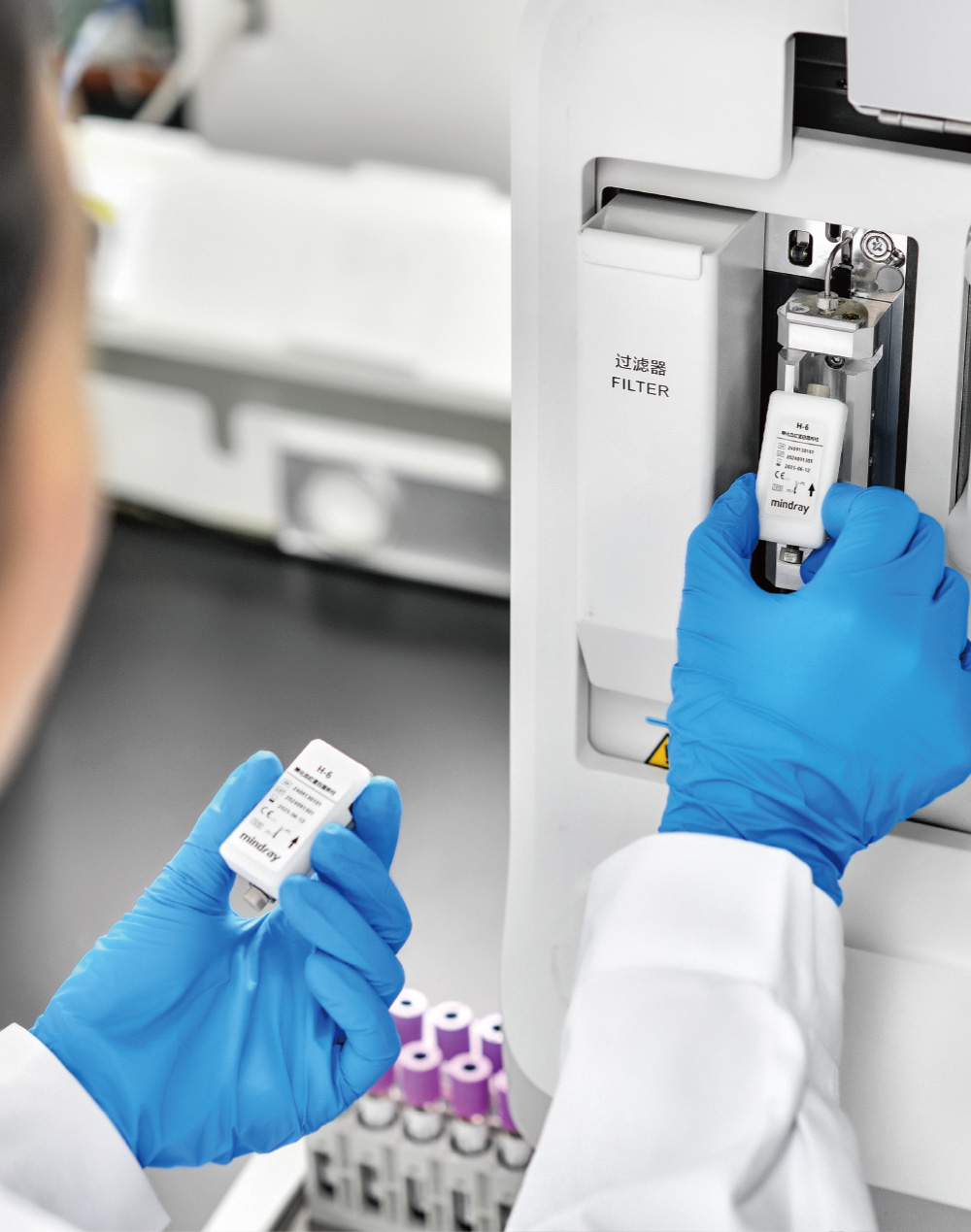

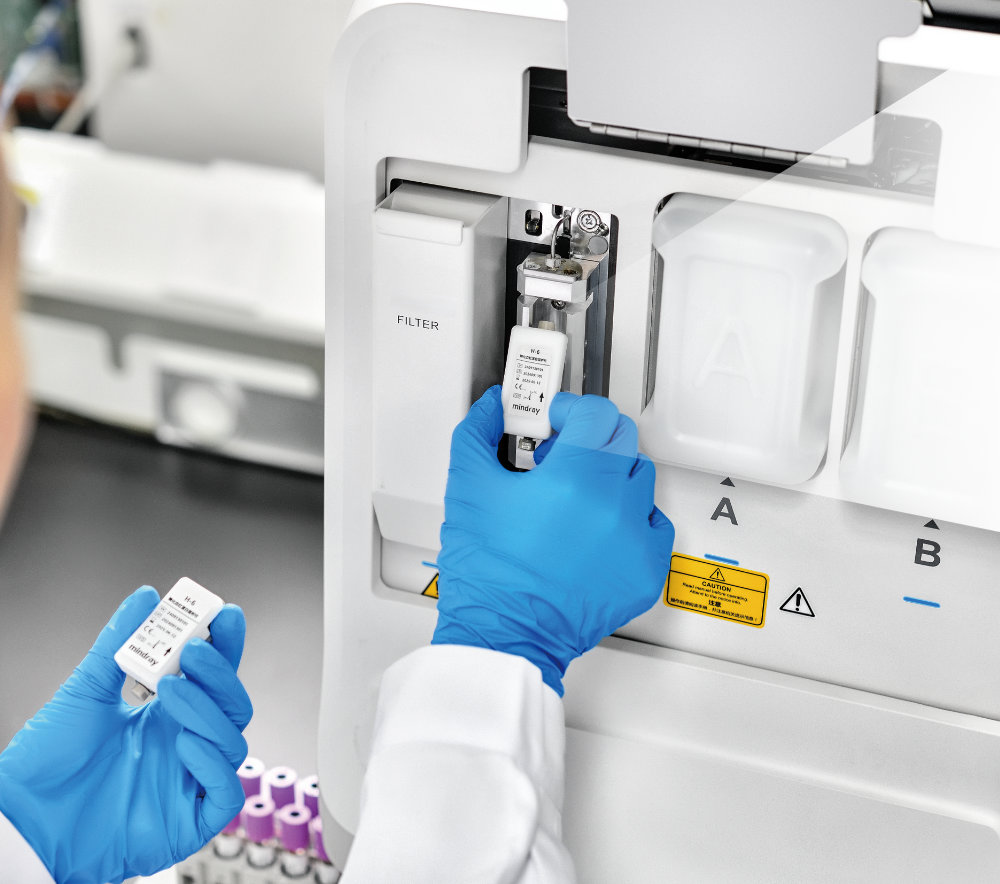

Chromatography Column
- With RFID tag, automated traceability and convenience
- Replace the column in four simple steps: open, take out, place, and close
