Chemistry and Immunoassay Integrated Solution

M1000

Expanding your possibility with just 4.5m²

M1000 is a chemistry and immunoassay integrated solution specially designed for large-scale laboratories. It supports loading up to 580 samples continuously at one time and decapping samples automatically. It is powered by many innovative technologies, such as sample tube automatic decapping, 360-degree sample barcode scanning, PDR optical platform, HIL.L SI solution, timely environment pressure and CO₂ monitoring, VU-Mix and FS-sampling, whole blood HbA1c with auto sample increment tests and etc. All these technologies help deliver high working efficiency and deliver high quality patient reports in a short turn-around time (TAT).

High Quality Integration

Takes up only 4.5 m² of space, offering a throughput of 640 T/H per m².

High quality integration for reliable and accurate results.

Well-balanced load, one tube for both CC and IM tests; One person for one solution.

Chemistry Analyzer
BS-2800M

• PDR™ Optical platform
• Usonicwash™ Ultrasonic wash

Chemiluminescence Immunoassay Analyzer
CL-8000i

• VU-Mix™ Mixing technology
• FS-Samlping™ Accurate sampling

Sample processing line

• Auto decapping, visual recognition
• Intelligent sample scheduling

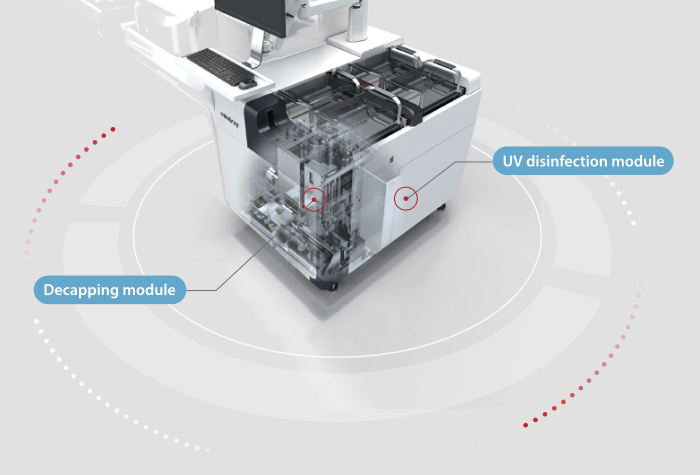

High speed decapping

The innovative sample processing solution allows onboard decapping at a variable speed to decrease aerosol, and onboard UV disinfection to avoid biohazardous risks.

Up to 550 tubes/hr.

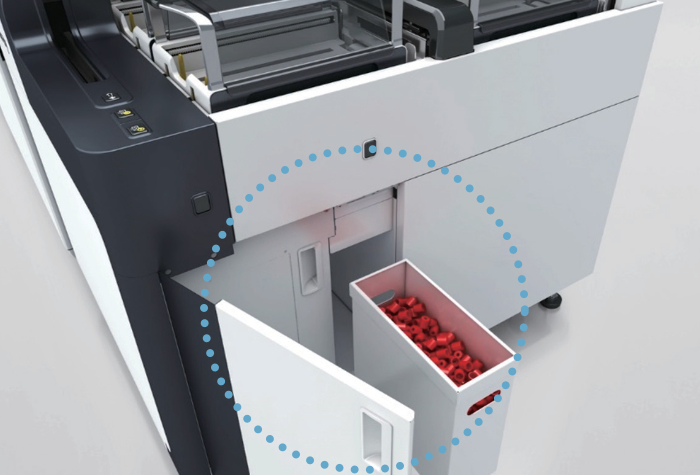

UV disinfection ensures lower biohazardous risks.

UV lamp goes off automatically when the side door is open.

Hidden design for decapping and UV disinfection inside the sample processing module, takes up no extra space.

High resolution recognition

• The Visual recognition function supports loading samples of different sizes and types at one time.
• 360-degree sample scanning and automatic sample capturing and recording by a high-resolution camera.

Supports loading different types of tubes at one time.

Supports 360-degree rotary sample scanning.

During 360-degree scanning, a high-resolution camera automatically takes pictures of samples, which can be reviewed at any time later to provide references for report audit.
