Automated Dosing System
AP-100
An Automated and Compact Design for Accurate and Safe Dosing of Mindray ID/AST

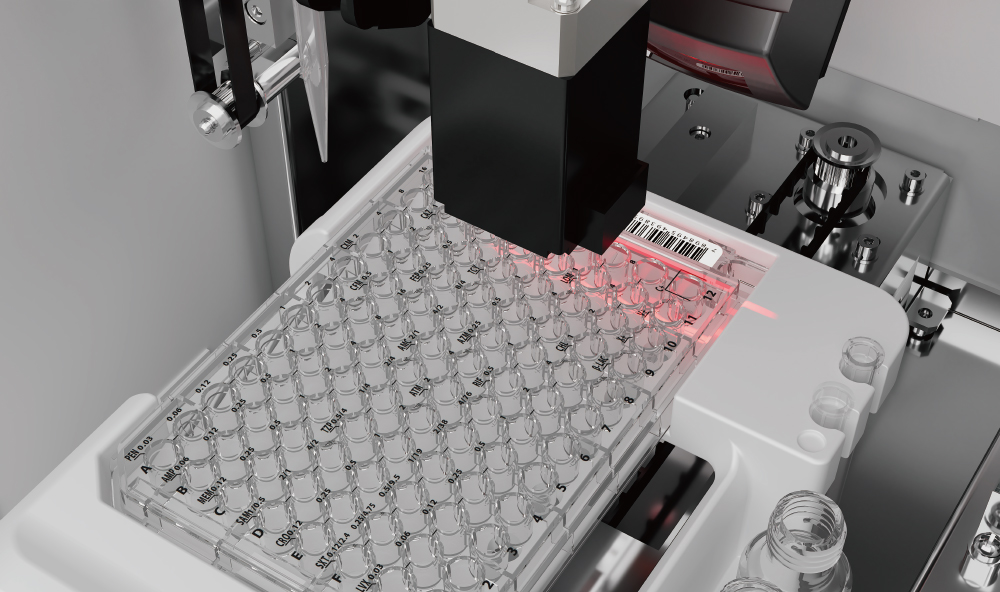

The multi-location technology helps to reduce manual intervention and improve both accuracy and speed.

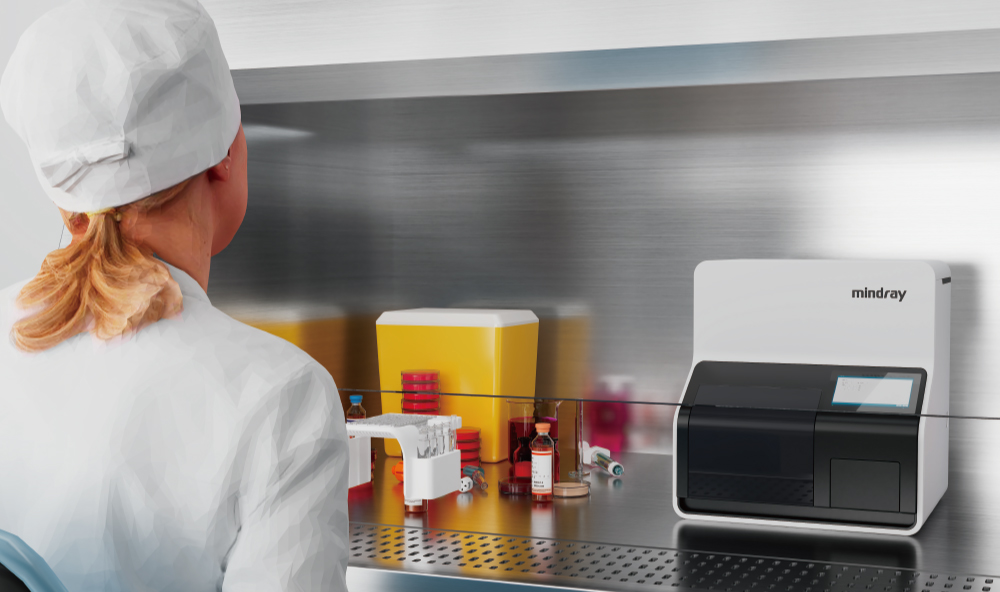

The compact design allows for plate dosing in the biosafety cabinet, which ensures higher safety during operation.
| Technical specifications | |
|---|---|
| Sampling principle | The syringe and pump work together for aspirating and dispensing |
| Display | LED digital screen for displaying test card categories |
| Sampling range | TDR YEAST-96, TDR STAPH-96, TDR STR-96, TDR NF-96, TDR One-96, TDR NH-96 |
| Throughput | 30 test cards per hour |
| Reproducibility | CV ≤ 5% |
| Power supply | AC100~240V, 50/60H |
| Dimension and weight | 340mm×300mm×360mm, 13±1kg |
| Working conditions |
Ambient temperature: 15~30℃, Relative humidity: 20%RH~80%RH, no condensation Altitude: -400~3000m |
