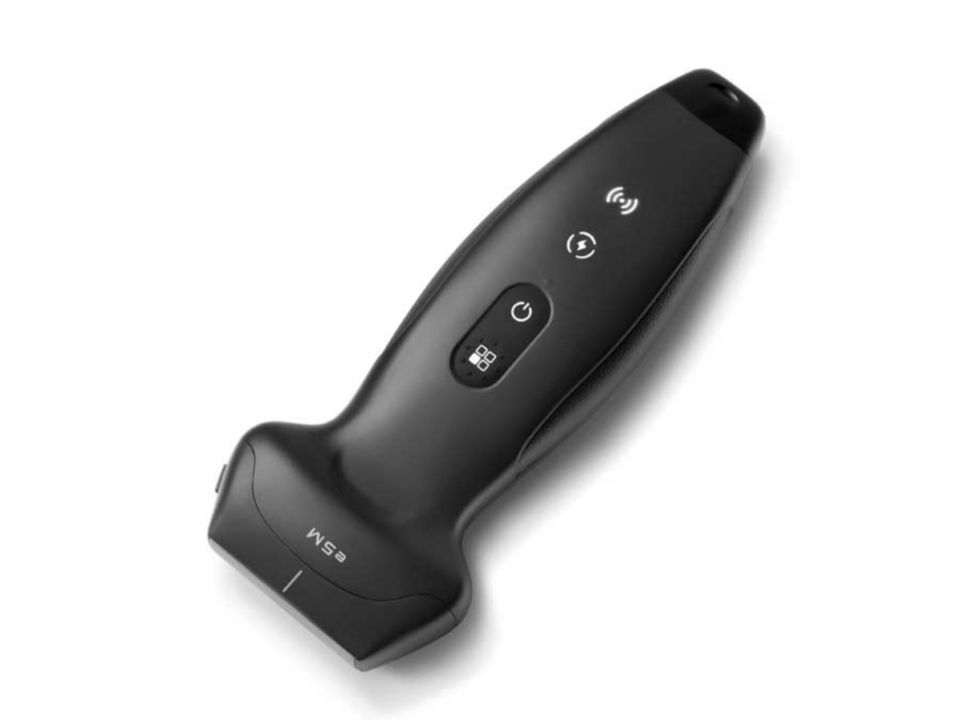

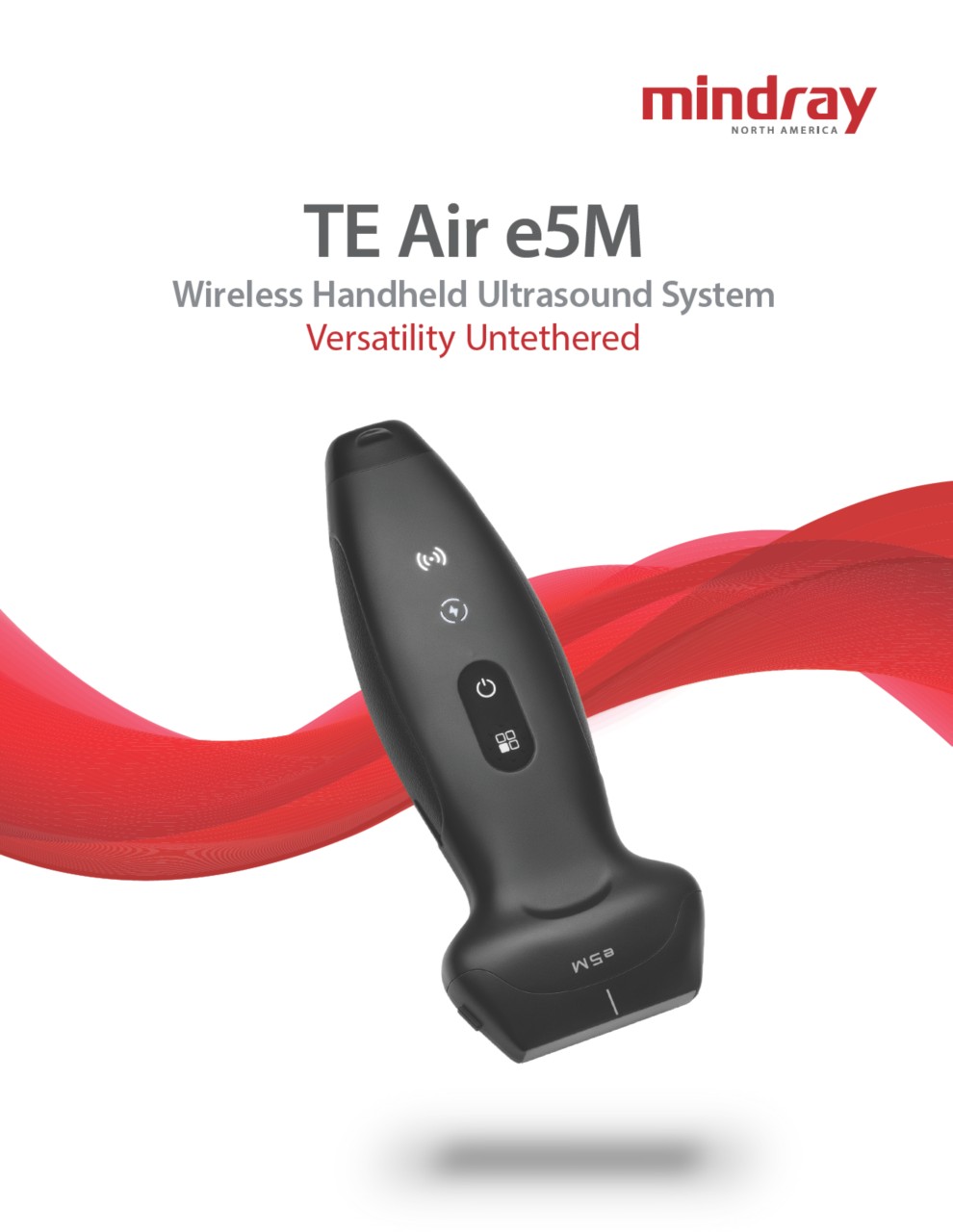

TE Air e5M
Versatility Untethered
Intelligent Image Optimization with iTouch+™
iTouch+™ enhances imaging efficiency and quality through two key features:
- One-Click Optimization: Instantly adjusts image parameters with a single click to deliver optimal image quality
- Auto Preset Adjustment: Automatically detects the anatomical structure being scanned and adjusts the preset settings to optimize the image quality, reducing manual adjustments and simplifying the scanning process
Auto Measurements
- Smart Bladder: Automatically detects three diameters of the bladder and calculates the bladder volume
- Smart Calc: Enables effortless measurement of lesion diameter and area
- PW Auto Calc: Automatic PW spectrum tracing and measurement
Precise Whole-Body Imaging

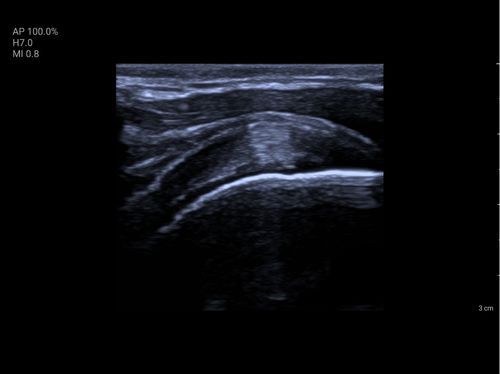

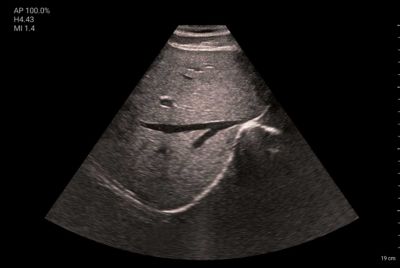

- 20+ Dedicated Presets: Abdomen, Musculoskeletal (MSK), Small Parts, Vascular, Adult Cardiac, and OB/GYN
- Frequently Used Presets: These configurable presets appear at the top of the list, minimizing search time

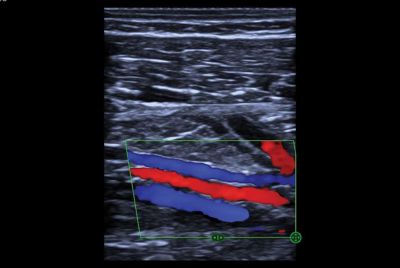

- Scanning Modes: B-mode, M-mode, Color Doppler, Power Doppler, and PW Doppler

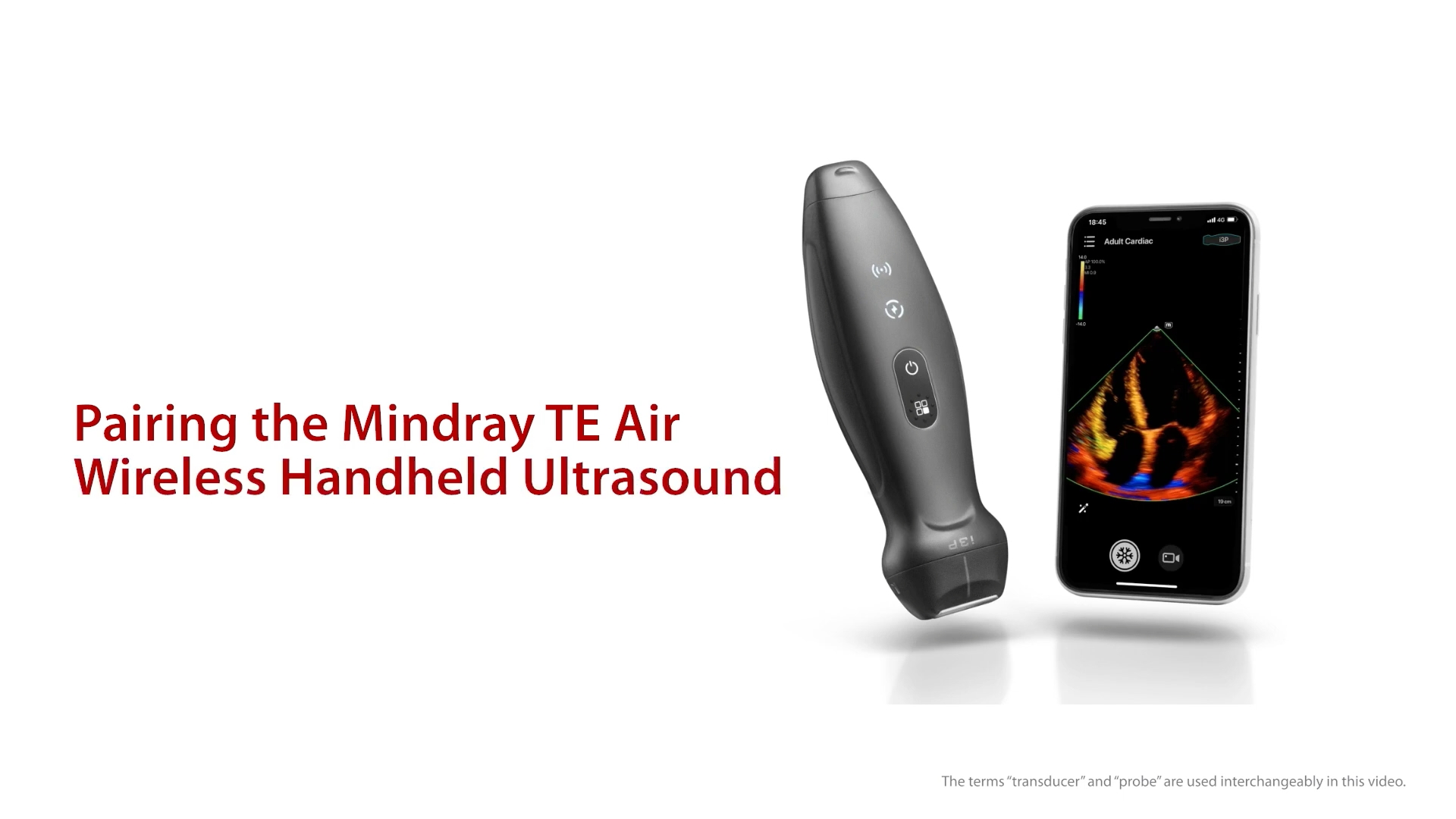

TE Air Connectivity
The TE Air e5M, paired with the TE Air Mobile app, empowers users to overcome the limitations of cords and tight spaces while delivering premium scanning functionality—all without any subscription costs.
The TE Air App offers:
- An intuitive user interface that supports one-hand operation and ease-of-use
- On-board patient data management solutions that provide connected patient care
- Seamless connectivity with PACS to complement the department’s workflow

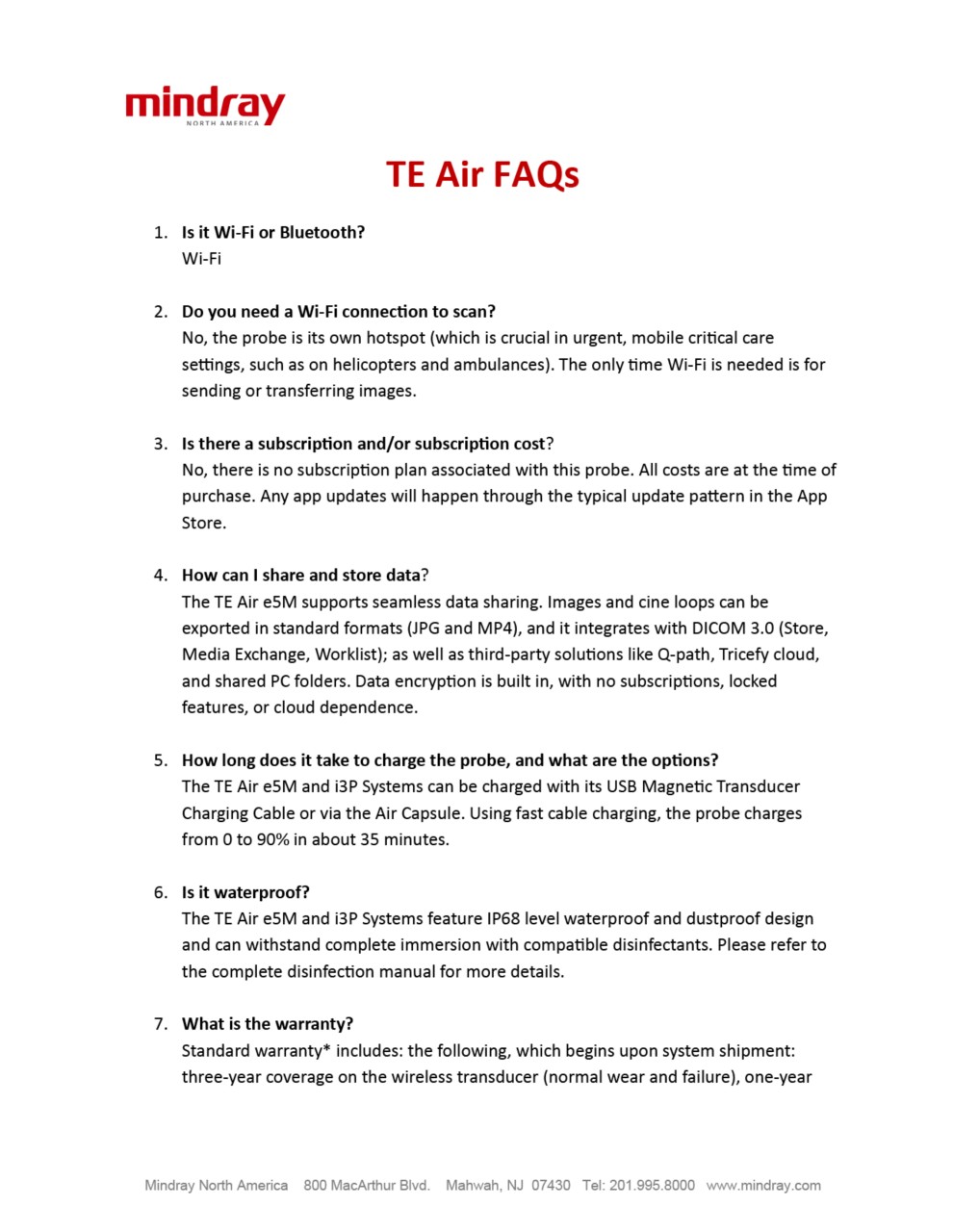

No, the probe is its own hotspot (which is crucial in urgent, mobile critical care settings, such as on helicopters and ambulances). The only time Wi-Fi is needed is for sending or transferring images.
No, there is no subscription plan associated with this probe. All costs are at the time of purchase. Any app updates will happen through the typical update pattern in the App Store.
The TE Air e5M supports seamless data sharing. Images and cine loops can be exported in standard formats (JPG and MP4), and it integrates with DICOM 3.0 (Store, Media Exchange, Worklist); as well as third-party solutions like Q-path, Tricefy cloud, and shared PC folders. Data encryption is built in, with no subscriptions, locked features, or cloud dependence.

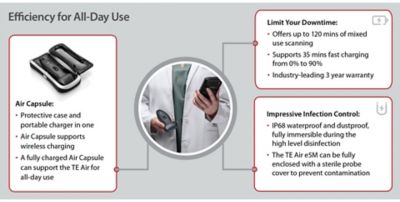

The TE Air e5M and i3P Systems can be charged with its USB Magnetic Transducer Charging Cable or via the Air Capsule. Using fast cable charging, the probe charges from 0 to 90% in about 35 minutes.
The TE Air e5M and i3P Systems feature IP68 level waterproof and dustproof design and can withstand complete immersion with compatible disinfectants. Please refer to the complete disinfection manual for more details.

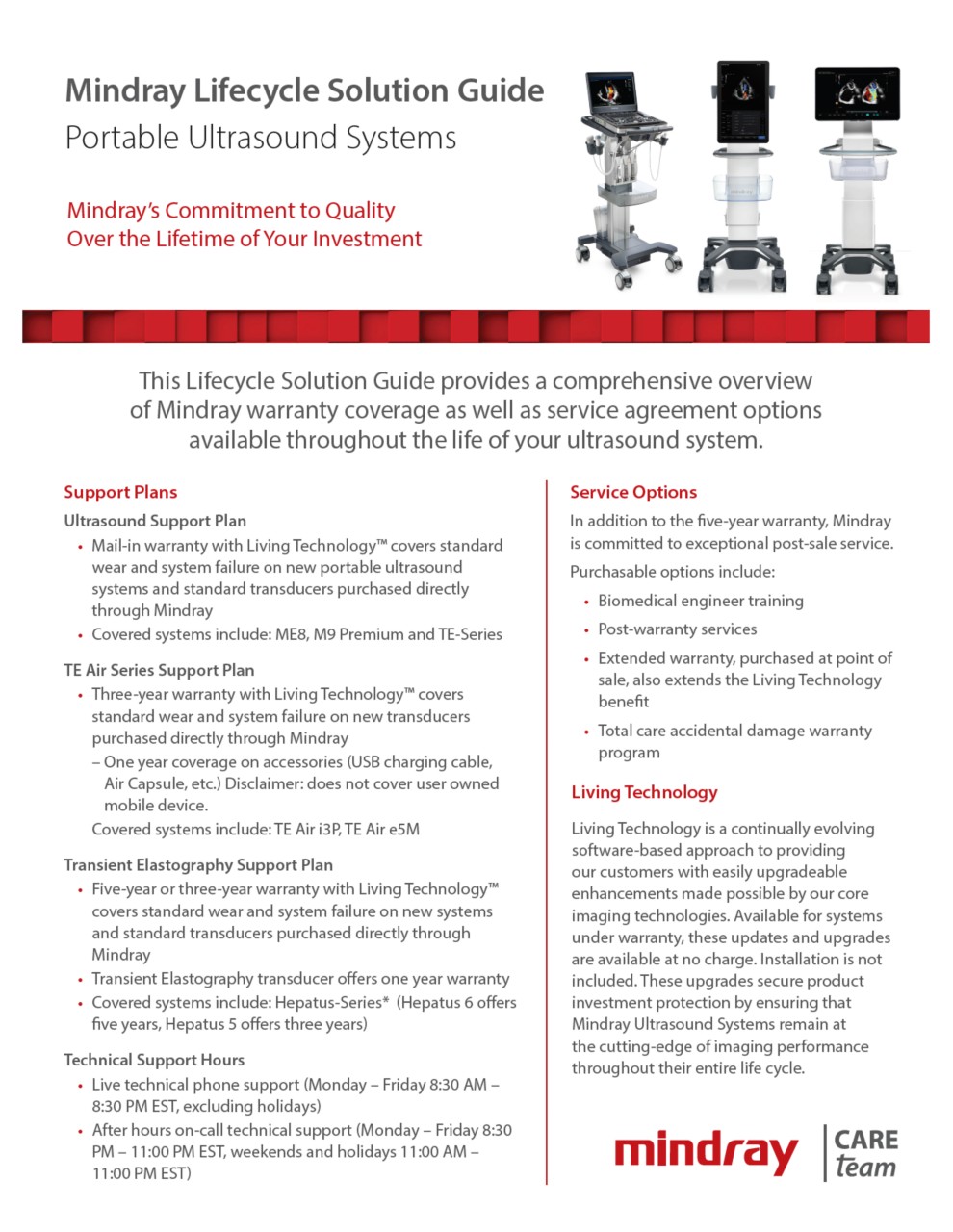

Standard warranty* includes: the following, which begins upon system shipment: three-year coverage on the wireless transducer (normal wear and failure), one-year coverage on accessories (USB charging cable, Air Capsule, etc.) Disclaimer: does not cover user-owned mobile device - Technical phone support (Monday – Friday, 8:30 am – 8:30 pm EST, excluding U.S. holidays)
- Standard three (3) year warranty is available for systems purchased directly from Mindray North America. Warranties for systems purchased from Mindray authorized agents can vary.
The TE Air e5M uses advanced piezoelectric crystal technology, not chip-based transducers. It is powered by Mindray’s Matrix Thin Slice technology, which delivers a broader frequency bandwidth than traditional arrays. This enables the TE Air e5M to cover 22 exam types with excellent clarity, from superficial to deep anatomy, providing true whole-body versatility. Whether performing vascular access and MSK injections in private practice, conducting full RUSH protocols in emergency medicine, or teaching in fellowship programs, clinicians can rely on uncompromised imaging quality wherever care is delivered.

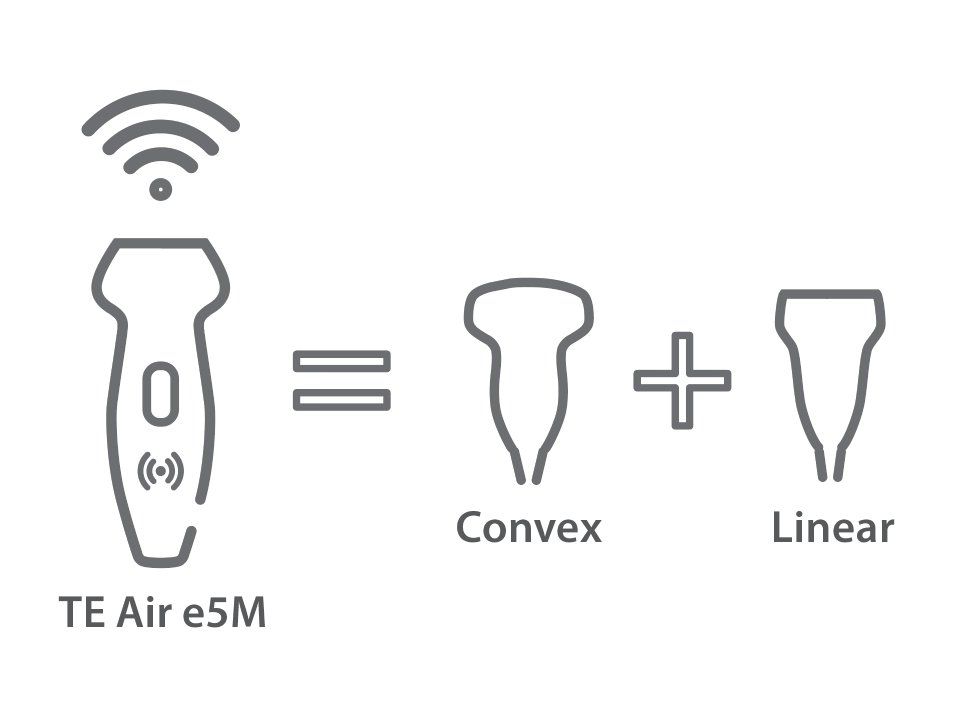

Though the TE Air e5m appears to have a linear footprint, depending on the preset you choose, this handheld is powered by Mindray’s Matrix Thin Slice technology, which provides broader frequency bandwidth compared to traditional transducers. The transducer will switch between linear and convex settings to scan head to toe without the need to switch transducers.

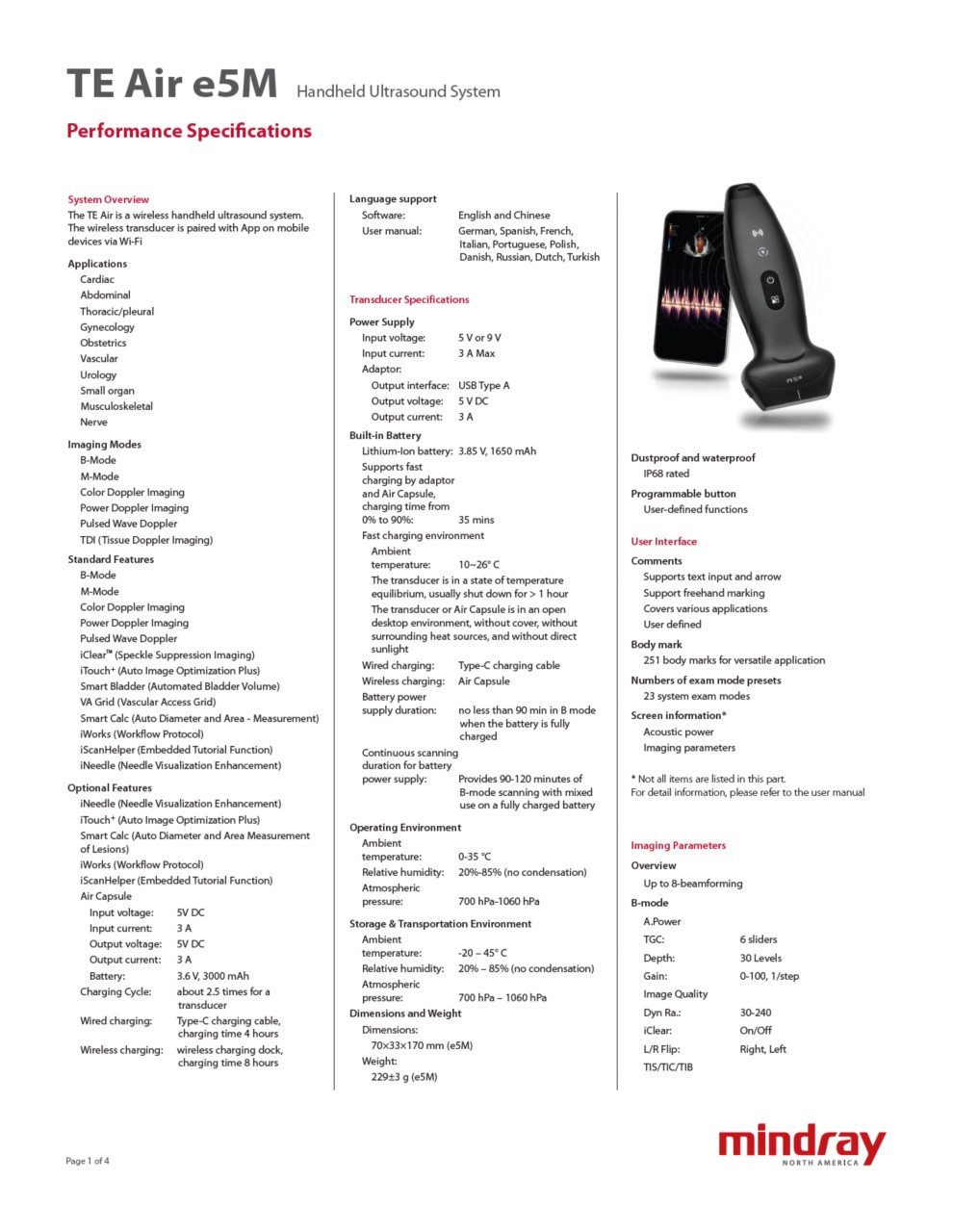

TE Air e5M is designed to work with modern iOS and Android devices. For iPhone, it requires an Apple A10 processor or newer, iOS 13 or above, at least 128 GB storage, 2 GB memory, and a display of 4.7" or larger. iPad compatibility starts from Apple A12 with iOS 14 or above, 64 GB storage, 3 GB memory, and a 7.9" or larger display. For Android phones, a Qualcomm Snapdragon 855 or newer with Android 10 or above is required, along with 256 GB storage, 8 GB memory, and a 6.41" or larger display. Android tablets need the same processor and OS version, 256 GB storage, 6 GB memory, and a 10.5" or larger display. Meeting these specifications ensures seamless use of the TE Air app and reliable imaging performance.
On a full charge, the TE Air e5M provides 90–120 minutes of operation.

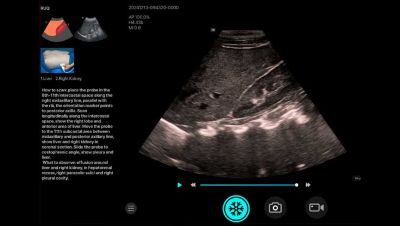

The TE Air e5M supports B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, and Tissue Doppler (TDI). It also includes advanced features like iClear, iTouch+, iNeedle, Smart Bladder, VA Grid, Smart Calc, iWorks workflow protocols, and iScanHelper tutorials.
The TE Air e5M includes 22 exam presets, covering cardiac, abdominal, thoracic/pleural, OB/GYN, vascular, urology, MSK, nerve, and small organ applications.

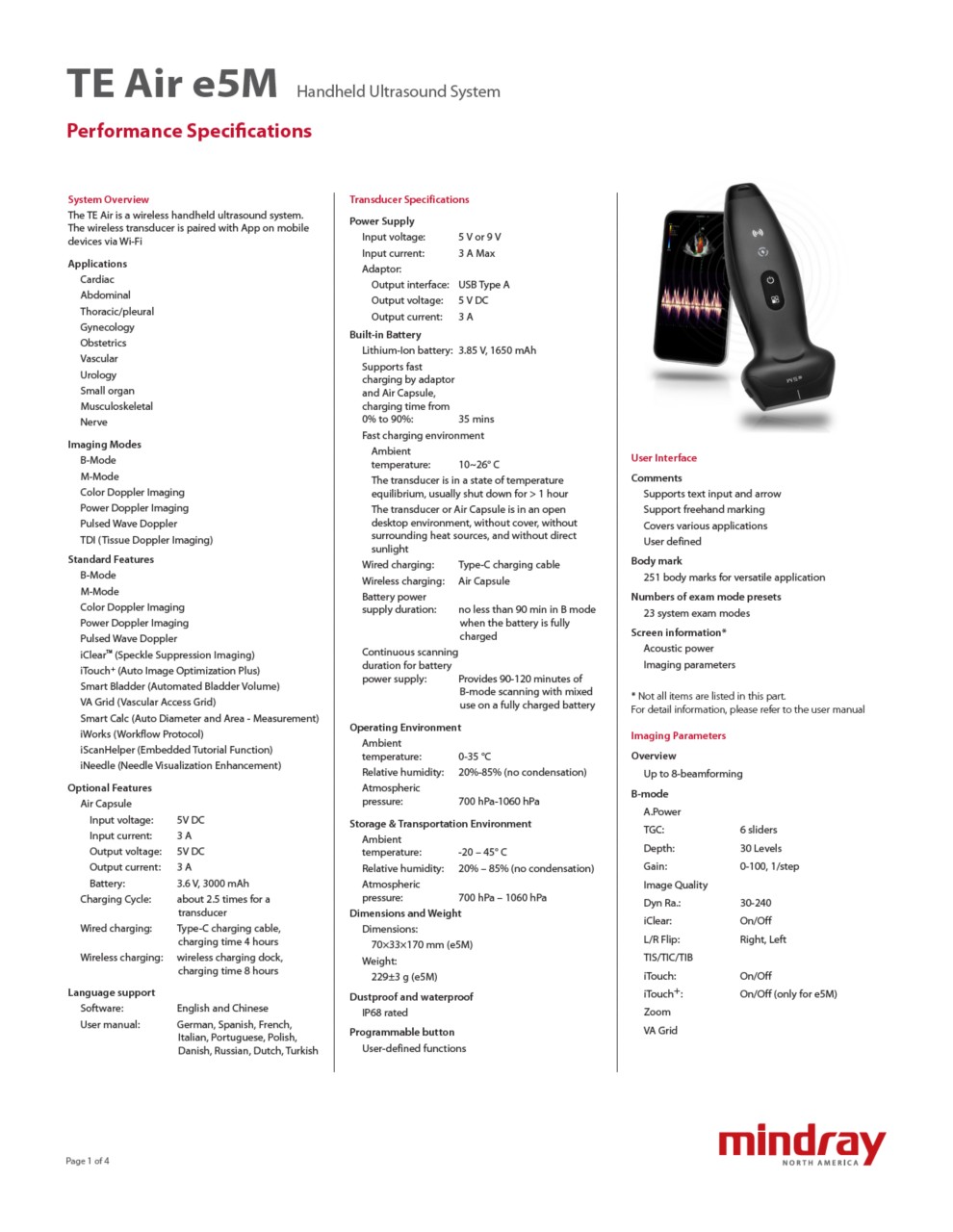

Resources
Mindray CARE Team Support
When you invest in Mindray solutions, you gain access to the Mindray CARE Team-a service organization dedicated solely to ensuring you get the most use out of your equipment, so you can ensure your patients get the most out of their care. Our dedicated field service team an din-house technical support organization represent one of the largest direct service teams in the industry.
Purchase from Mindray includes comprehensive clinical training and 24/7 remote technical support.
