Diagnostic Ultrasound System

              Series

Point of Care, Reimagined

Watch Product Video

Point of Care, Reimagined

The TEX20 Series ultrasound system helps clinicians reimagine their clinical practice in demanding point-of-care environments like critical care, emergency medicine, and anaesthesia.

Smart Tools
Improve the speed and accuracy of assessments and procedures with a wide variety of smart tools that can be used by clinicians and trainees. From guidance with transducer placement for clearer imaging to time-saving calculations, the TEX20 Series helps clinicians deliver exemplary care.
AutoEF Plus
Analyse 2D echo in real-time to automatically recognise and trace the endocardium and provide EDV/ESV/EF calculation results by the Simpson method.
tex-20-fig5-1-pc

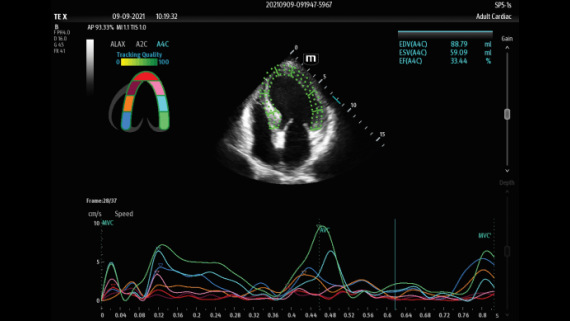

Smart TTQA
A dedicated speckle tracking algorithm for strain analysis of the ventricles, providing global and free wall longitudinal strain results and additional segmental performance data.
2. Smart TTQA-570x321-pc
Auto DFR (Auto Diastolic Function Ratio)
This smart tool automatically calculates the E/A, E/E’ indices for faster evaluation of the diastolic function.
tex-20-fig5-2-pc
Smart Echovue
Automatic cardiac plane recognition and scanning guidance. Smart Echovue automatically recognises the standard cardiac view, captures images/clips, and guides you to the next scanning plane to help standardise the quality of examination.
tex-20-fig5-3-pc
Smart Fluid Management
The advanced tools - Smart VTI, Smart IVC and Smart B-line - provide more diagnostic information for accurate and efficient fluid management, allowing clinicians to focus on patient care.
tex-20-fig5-4-pc
Smart Nerve
This smart tool can automatically recognise the brachial plexus and highlight the nerve, increasing clinical confidence and reducing procedure time during the nerve block.
tex-20-fig5-5-pc

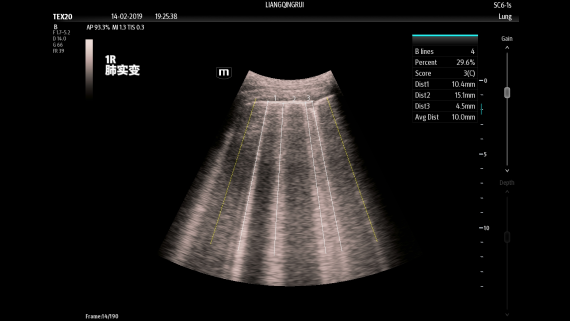

Smart B-Line
The Smart B-Line tool automatically calculates B-line number, area ratio and distance.
SC6-1s_Lung_Smart B-line_2-570x321-pc
Next
Previous
Anaesthesia and Perioperative Solutions
p73-s4-1
eSpacial Navi™: 4D magnetic needle navigation technology
eSpacial Navi™ delivers enhanced needle visualisation and location during in-plane or out-of-plane procedures. During interventional procedures, the needle tip and trajectory is clearly visualised, improving clinicians' confidence and patient safety.
p73-s3-1
iNeedle: Advanced needle visualisation technology
iNeedle provides enhanced needle visibility, even during steep-angled procedures, while maintaining superior image quality. Users have clear confirmation of needle location in tissue to minimise harm to surrounding tissue.
p73-s3-2
Auto GA: Gastric function evaluation technology
Auto GA automatically identifies the edge of the gastric antrum and calculates the area with a single tap on the screen to support the evaluation of gastric content.
Next
Previous

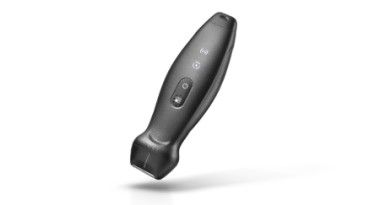

See More with the Wireless Transducer - TE Air
· Outstanding image quality and advanced analysis tools
· Lightweight and easy to carry
· Connect with TEX20 Series and mobile devices
· IP68 waterproof rating for fully immersed disinfection
· Fast charging
Find out more about the TE Air >
tex-20-fig6-pc
Next
Previous
tex-20-fig3-pc
Enhanced Clinical Confidence Powered by ZST+
The TEX20 Series is embedded with the innovative ultrasound platform, ZONE Sonography® Technology (ZST+), which delivers exceptional image quality for enhanced clinical confidence.

Equipped with Mindray’s 3T technology (Triple-matching layers, Total-cut design, Thermal control), the TEX20 Series offers a full suite of transducers for a wide variety of applications, including convex, linear, phased array, endocavity, TEE and cutting-edge wireless transducer. The single crystal (phased array and convex) transducers provide a wider bandwidth, offering better penetration and higher resolution - an ideal solution for technically difficult patients.
X-Link: Information integration for improved decision-making
The X-Link integrates physiological data from bedside equipment such as ultrasound imaging, ECG signals, and respiratory signals etc. into a brand new view on a patient’s course of disease.  It not only brings high-quality clinical value and accurate diagnosis to your daily practice, but also facilitates Multi-Disciplinary Treatment (MDT) and more advanced multi-modal clinical research.

With the Physio-View on X-Link, ECG and other physiological waves can be viewed overlaying on the ultrasound image for immediate decision making.  U-View on X-Link integrates the ultrasound image and other physiological information on the Central Station for a general review. This solution brings you the unprecedented tool to achieve a higher level of diagnostic bedside care and scientific research.
tex-20-fig2-pc

X-Pilot: Clinical Application-Oriented Workflow

Based on the professional society guidelines for point of care ultrasound, the X-Pilot suite integrates historical diagnostic images and multi-organ data into a concise and precise view of the patient status to support rapid clinical decisions at the bedside.


Application - Shock

Assists identifying shock type, in accordance with RUSH, FALLS and GDE protocols.

Application - Respiration

Helps in the evaluation of acute respiratory distress, in accordance with BLUE protocol.

Application - Trauma

Assists in finding free fluid in the thorax, pericardium, abdomen and pelvic cavity, to help expedite FAST and eFAST exams.

Experience Reinvented

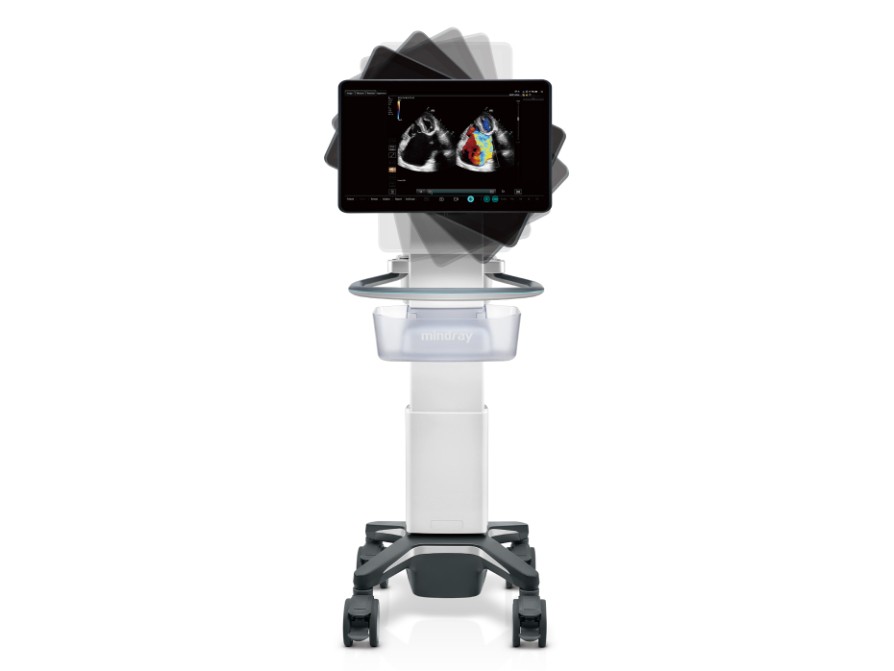

23.8" rotatable full-touch HD screen allows for both landscape and portrait display to meet the needs of various clinical scenarios

Sealed interface for fluid resistance and ease of disinfection

4 active transducer connectors

Wireless voice control (iVocal Plus) for hands-free operation

Flexible storage design: Wireless transducer charger / Lockable storage basket / Towelette holster

Wireless charging station

Retractable cord to reduce tripping hazards and contamination concerns

Experience reinvented

1
2
3
4
5
6
7

123.8" rotatable full-touch HD screen allows for both landscape and portrait display to meet the needs of various clinical scenarios

24 active transducer connectors

3Sealed interface for fluid resistance and ease of disinfection

4Wireless voice control (iVocal Plus) for hands-free operation

5Flexible storage design: Wireless transducer charger / Lockable storage basket / Towelette holster

6Wireless charging station

7Retractable cord to reduce tripping hazards and contamination concerns

Clinical Images
  • tex-20-fig8-3

    Cardiac Pulmonary Regurgitation

  • tex-20-fig8-4

    Ascites

  • tex-20-fig8-5

    Pleural Effusion

  • tex-20-fig8-6

    Popliteal Artery Flow

  • tex-20-fig8-7

    Smart IVC

  • tex-20-fig8-8

    Lung B-lines

  • SC6-1s_Ascites_2-1244x935

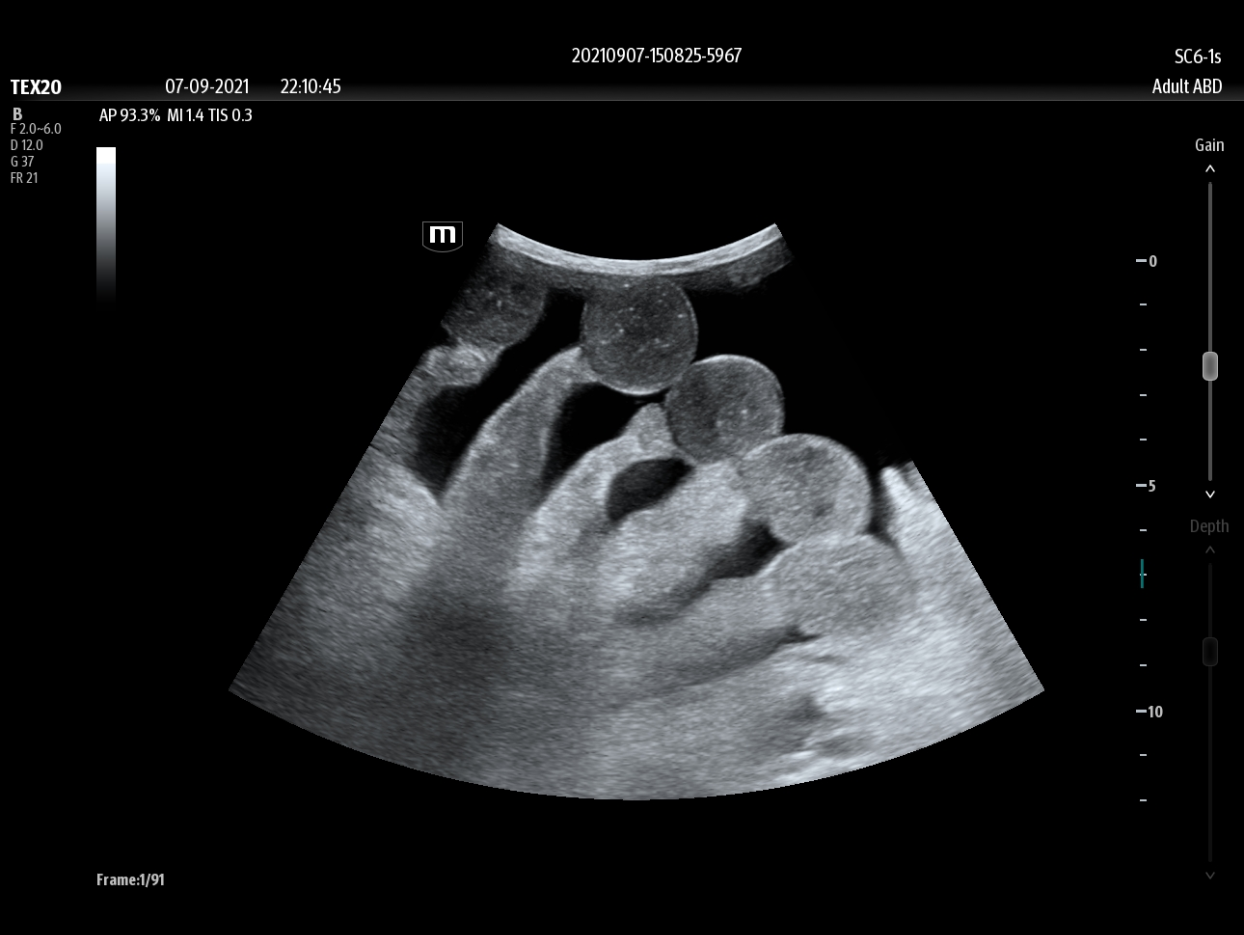

    Bowel

  • SP5-1s_S4C_Mitral stenosis_Color_2

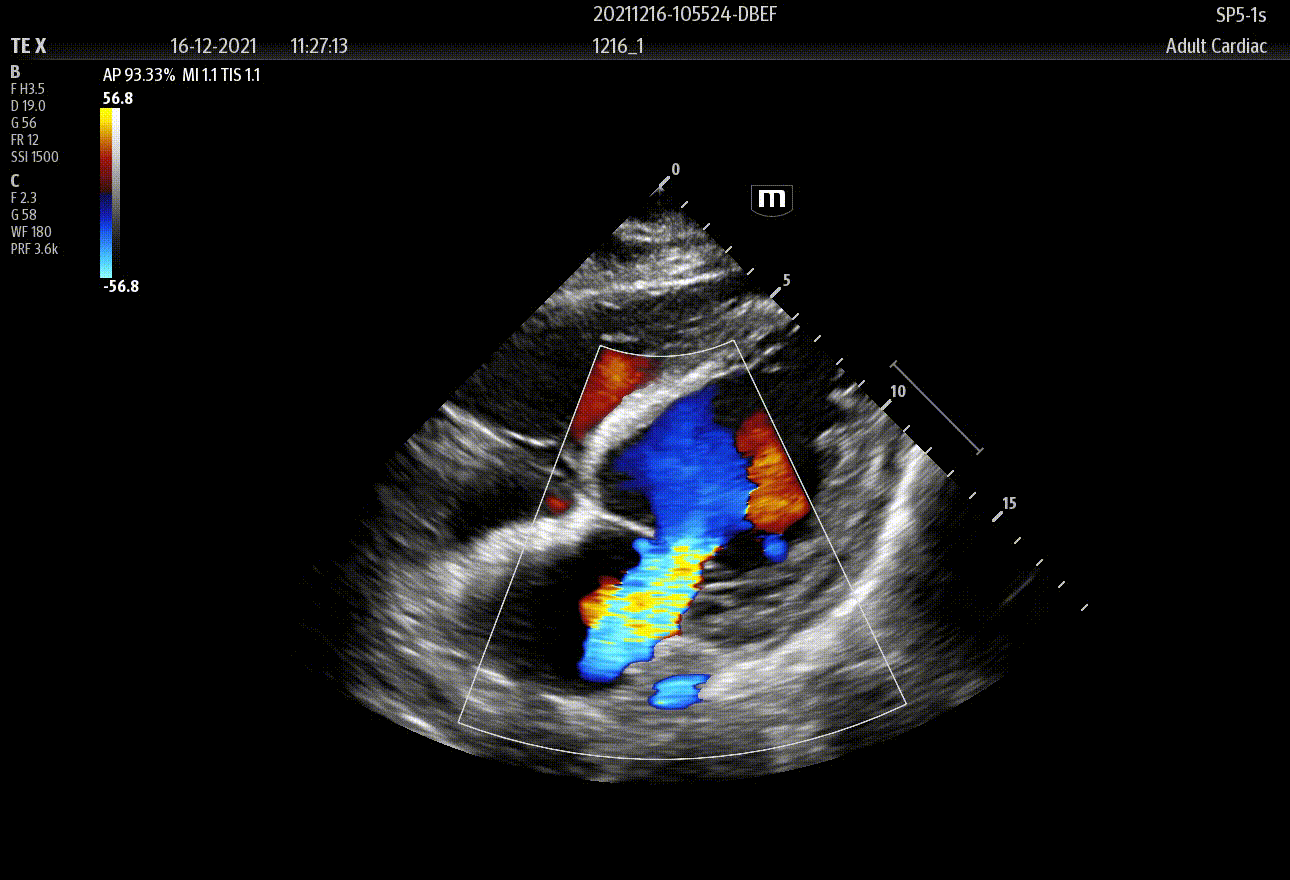

    Mitral Stenosis

  • i3P_4C_Mitral stenosis_Auto EF_1-1244x935

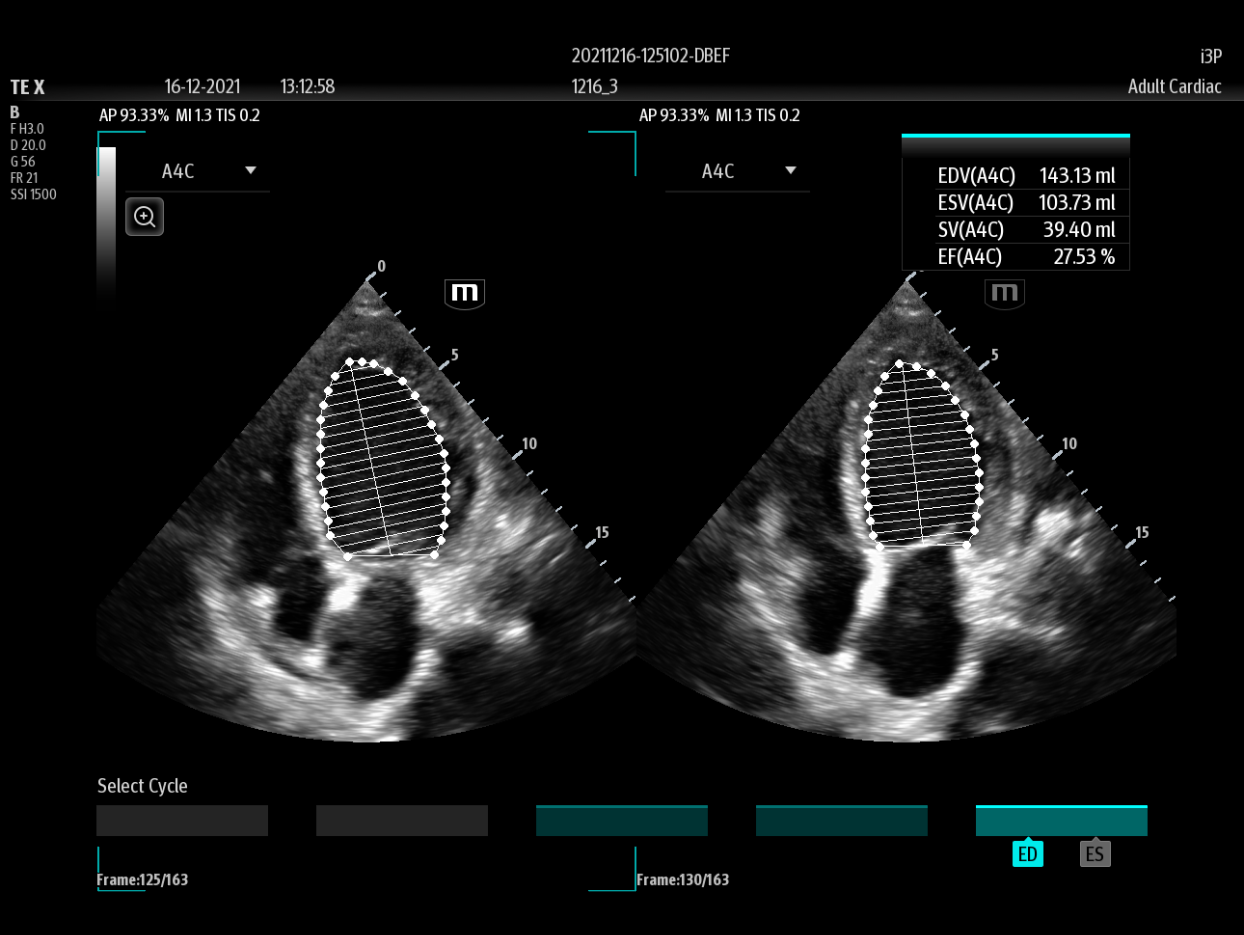

    Mitral Stenosis with Auto EF Smart Tool

  • SP5-1s_S4C_Pericardial effusion_2D

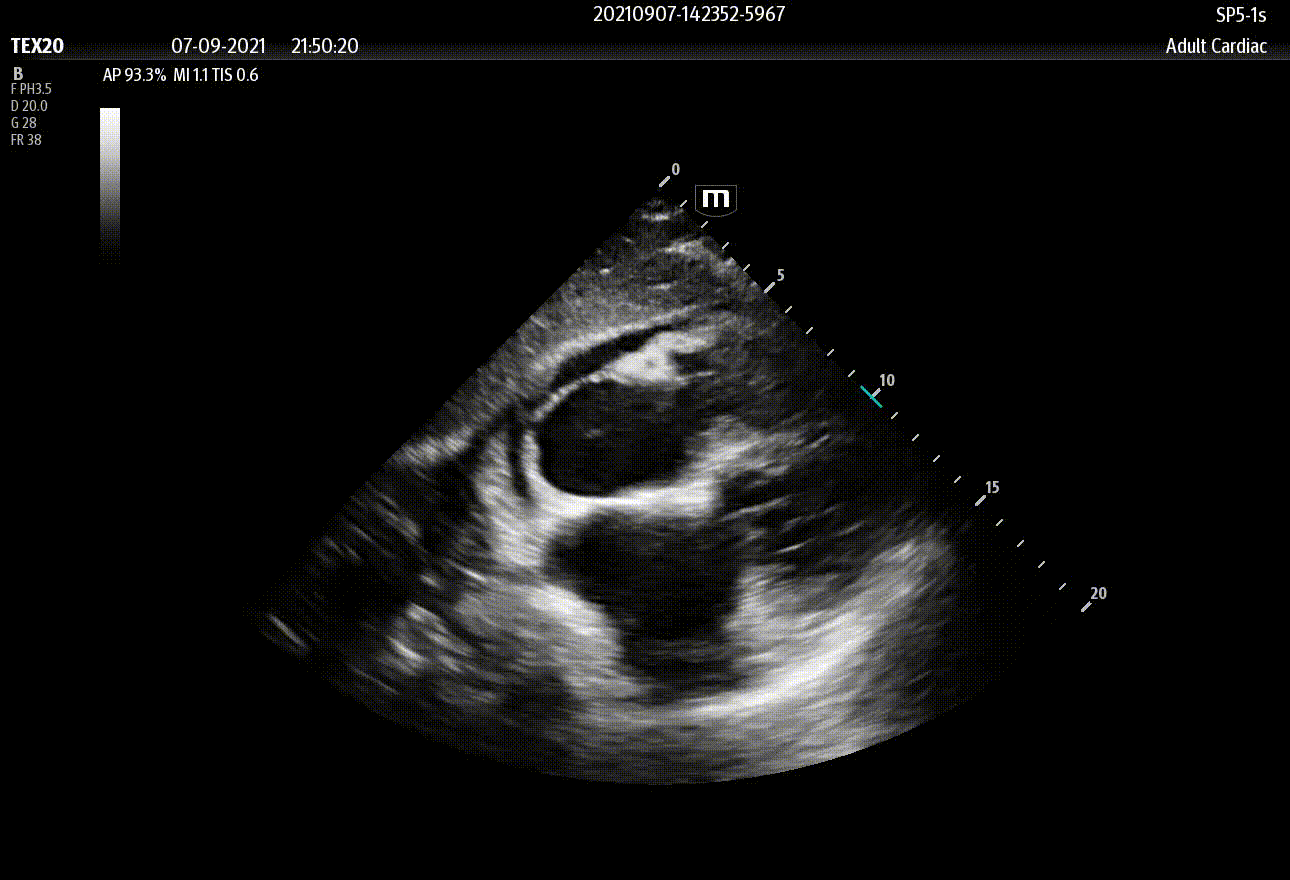

    Pericardial Effusion

  • tex-20-fig8-1

    X-Link: Physio-View on Ultrasound

  • tex-20-fig8-2

    X-Link: U-View on Central Station
