Diagnostic Ultrasound System

TE7

A Dedicated Solution for Point of Care

Watch Product Video

A Dedicated Solution for Point of Care

With its superior image quality, simple touchscreen operation and class-leading intelligent tools, the Mindray TE7 ACE is designed to simplify and speed-up ultrasound examinations.



Its versatility makes it suitable for demanding point-of-care environments including Critical Care, Emergency and Anaesthetics.

te7-fig1-pc
Smart Fluid Management
TE7 ACE's advanced tools - Smart IVC, Smart VTI and Smart B-line - provide vital diagnostic information for more accurate and efficient fluid management, boosting clinical confidence and giving clinicians more time to focus on patient care.

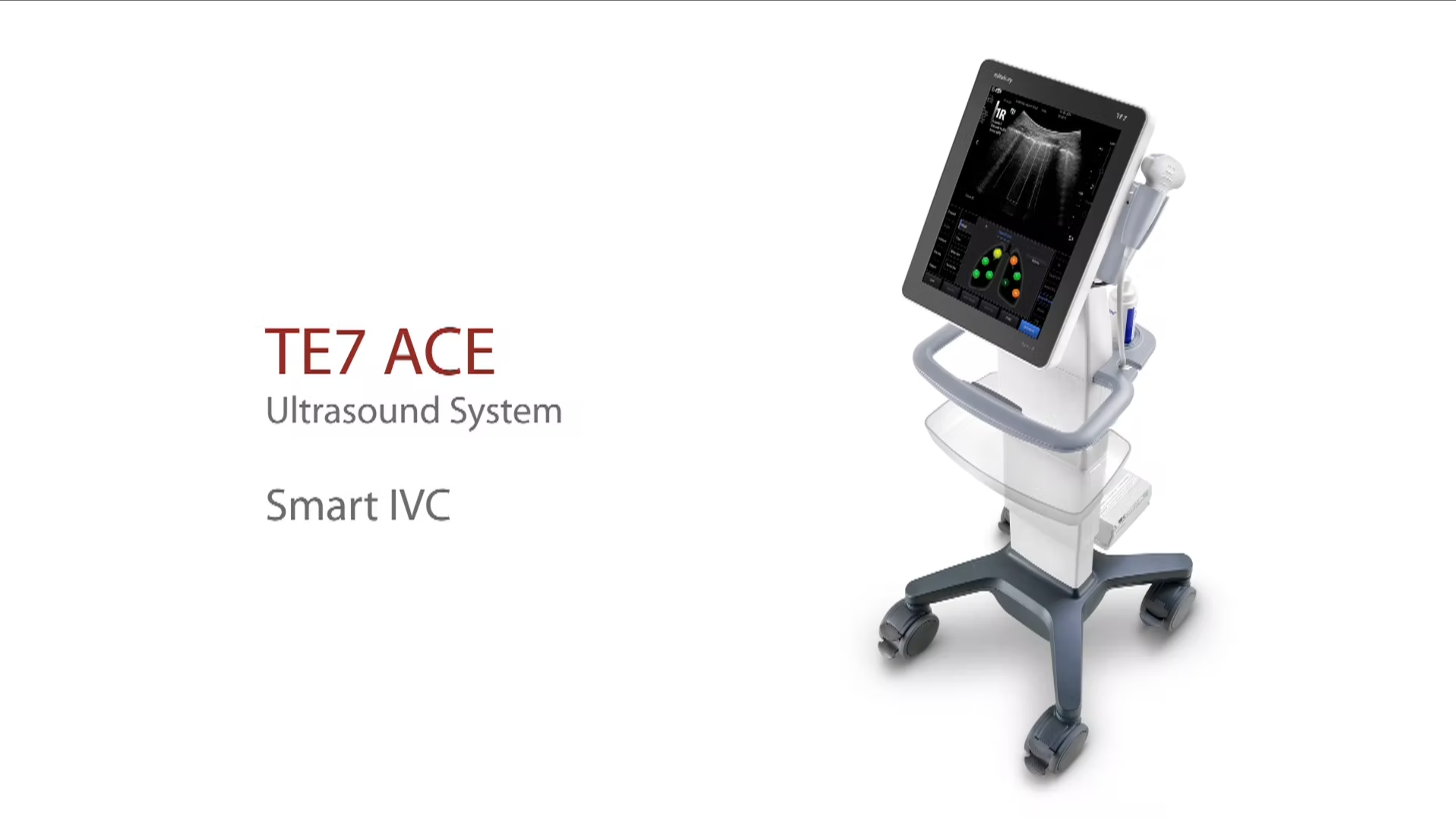

Smart IVC
The Smart IVC (Inferior Vena Cava) automatically traces the IVC diameter change, and calculates the CI (Collapsibility Index) or DI (Distensibility Index) and IVC Variation, aiding volume status assessment.
te7-fig2-2-pc

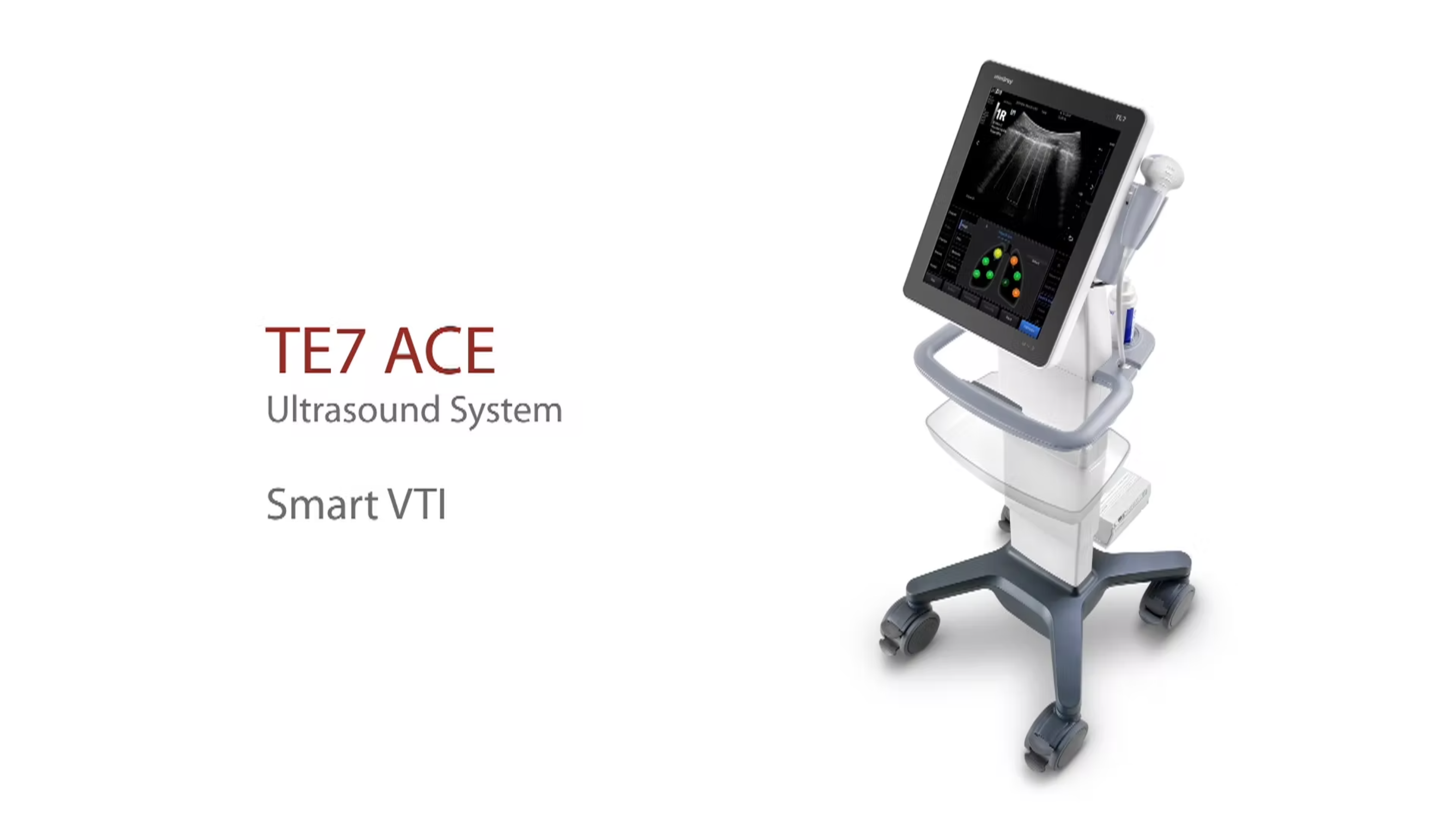

Smart VTI
The Smart VTI automatically calculates the VTI (Velocity Time Integral), CO (Cardiac Output) and SVV (Stroke Volume Variation). The trending graph provides efficient recording and guides for fluid therapy.
te7-fig2-3-pc

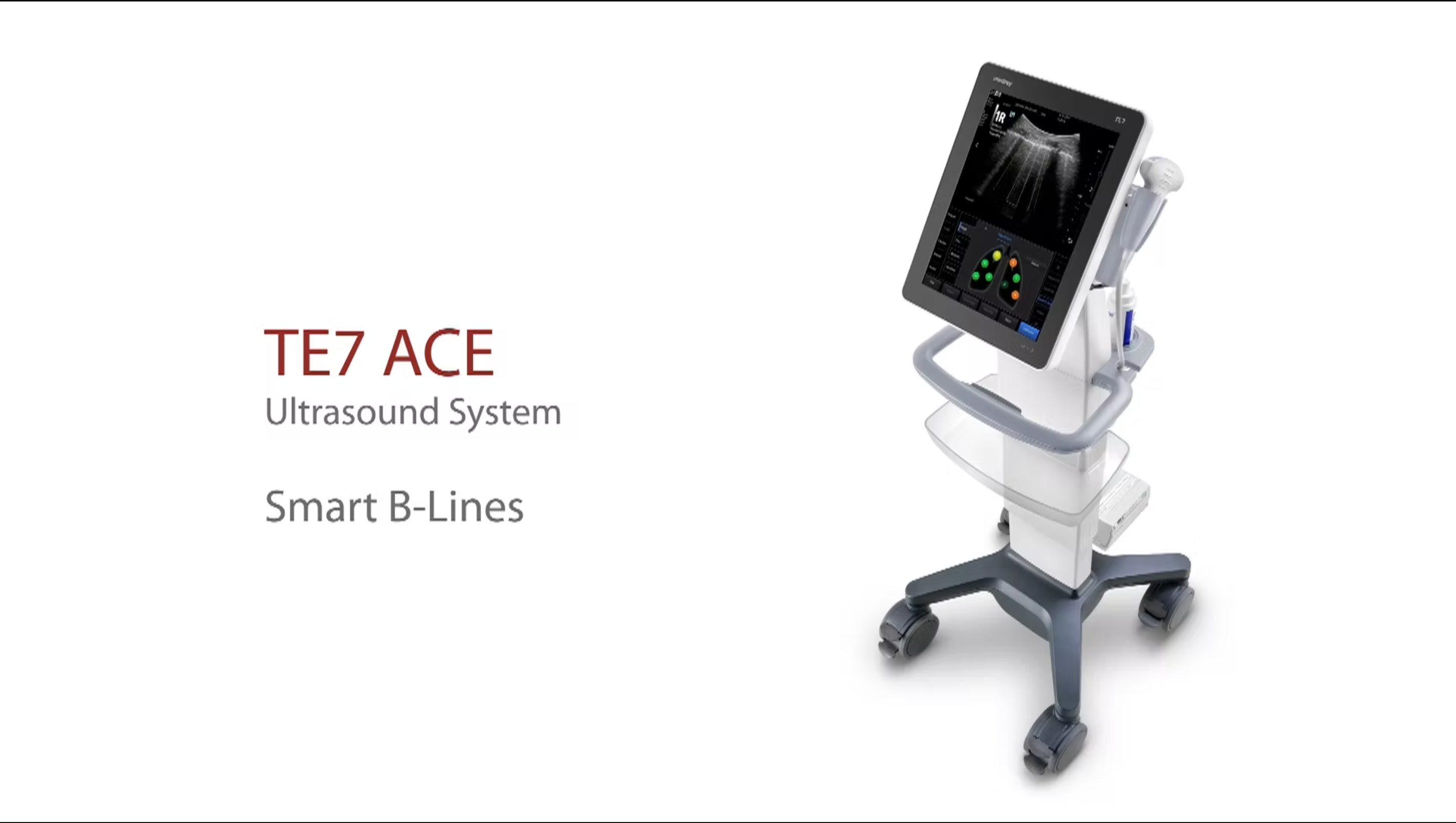

Smart B-line
Smart B-line automatically calculates the number, percentage, and distance of B-lines. It provides a unique visual scores map for intuitive overall lung water evaluation to guide fluid infusion and prevent pulmonary edema.
te7-fig2-4-pc
Next
Previous
Safe to Puncture
The eSpacial Navi™ on TE7 ACE provides enhanced needle visualisation during in-plane and out-of-plane procedures. The position of the tip and alignment of the needle are clearly identified to help you plan needle trajectory before puncturing, guiding you to the target safely and easily.
p72-1

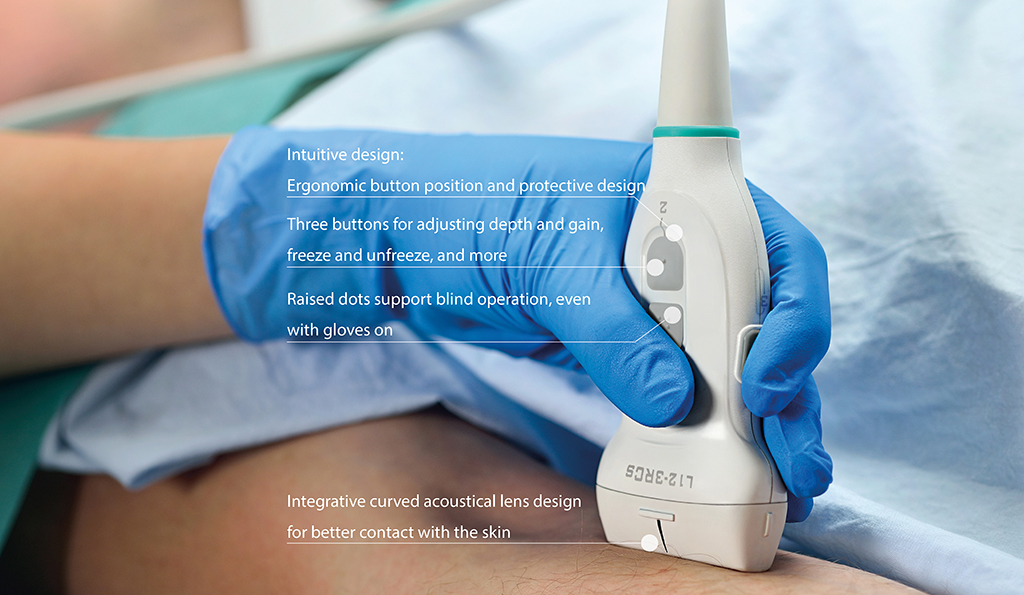

All-In-One Transducer for Needle Guided Procedure
The L12-3VNs have 3 programmable buttons which combine remote control and the eSpacial Navi™ into one tool. It ensures safe, simple, and convenient needle guidance with minimal manual intervention. Discover more transducers available on the TE7.
TE7-1024x595px
Next
Previous
Work Smarter
To further streamline the examination process, Mindray’s TE7ACE can connect seamlessly to the hospital’s Electronic Patient Record (EPR) system through Mindray's eGateway, providing a complete and comprehensive patient record whilst reducing transcription errors. The TE7ACE also comes equipped with smart tools to improve diagnostic efficiency and confidence.
iNeedle
Advanced needle visualisation and visibility even during steep-angled procedures, while maintaining superior image quality. Improved confirmation of needle location in tissue minimises harm to surrounding tissue.
p72-s6-1
Smart Track
Reduce repetitive, time-consuming steps with smart tracking of vessels, and real-time, automatic, optimisation of colour/power and the PW spectrum.
p72-s6-2
iScanHelper
This dedicated in-built educational tool provides guidance for ultrasound scanning, including anatomical illustrations, standard ultrasound images, and scanning reference pictures.
p72-s6-3
MedTouch
An IOS/Android app for remote control of the ultrasound system and access to patient data. Includes built-in tutorial software.
p72-s6-4
Next
Previous
p72-s3-1
Innovative Voice Command
Based on advanced voice recognition technology, iVocal lets you remotely control the system with an extensive range of simple voice commands through a wireless microphone.
p72-4

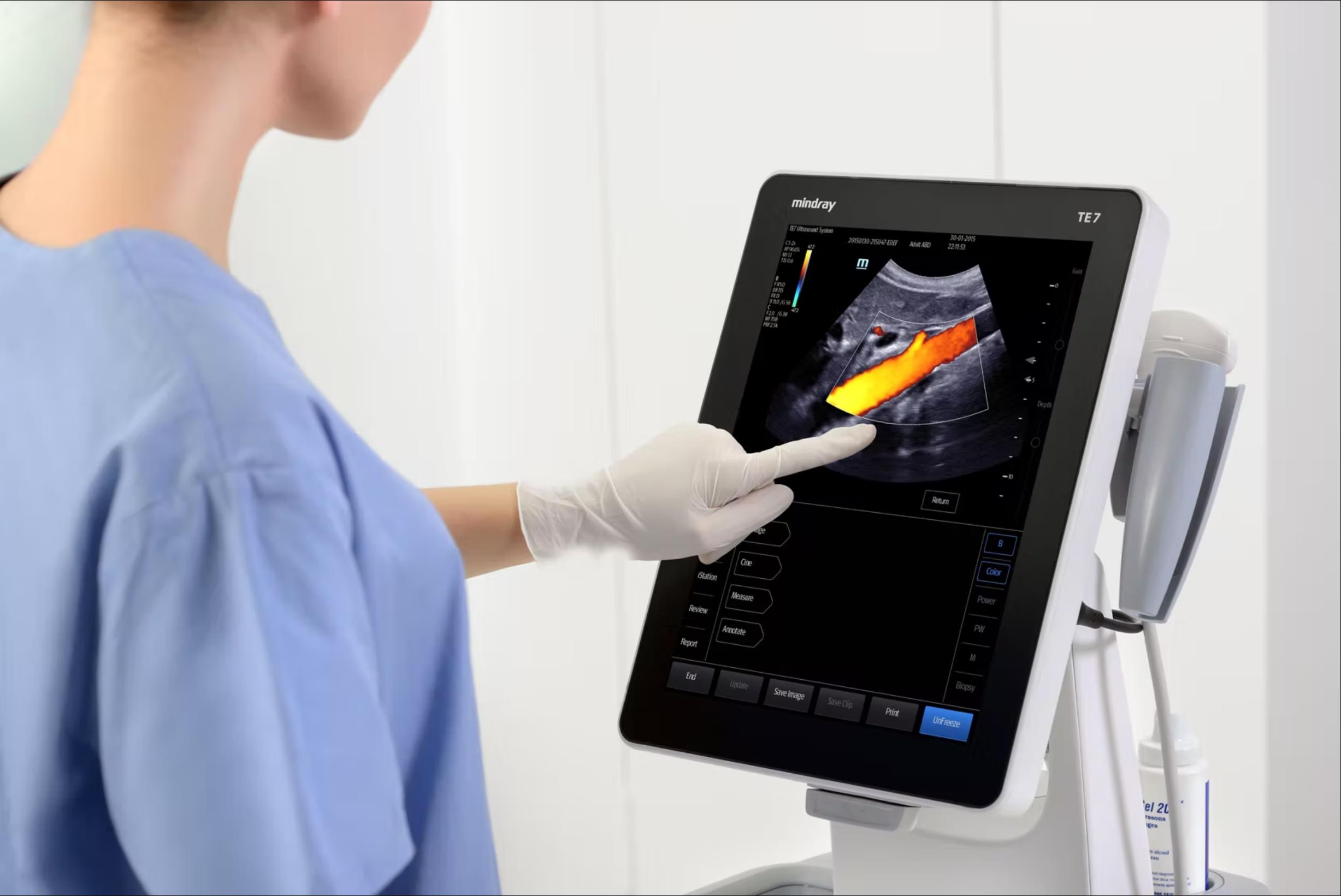

Gesture Control for Ease of Use
Simple controls at your fingertips: drag to adjust depth or gain, pinch to zoom in or out, and swipe to expand the imaging area, even with your gloves on.
Easy Disinfection
Built for demanding daily use, the TE7ACE is validated with all leading UK cleaning agents and features a non-porous lockable touchscreen that is easy to secure and disinfect between each patient.
p72-s4
Next
Previous
Transducers
  • TEE transducers:
  • Intraoperative transducers:
Images

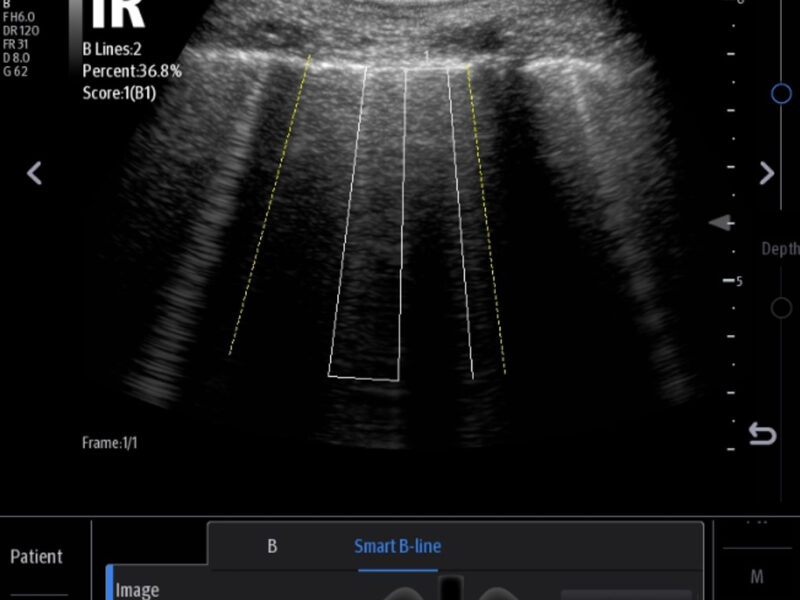

  • TE7ACE_Smart_B-line_Clinical

    Mindray's TE7 ACE Smart B-Line Tool

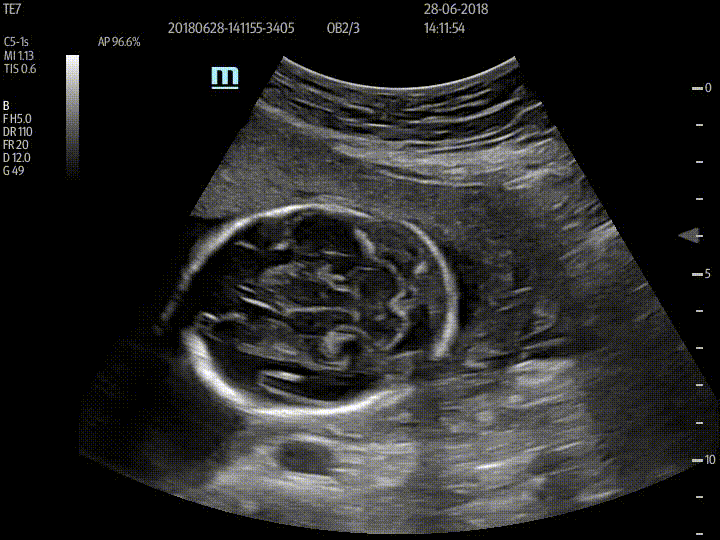

  • C5-1s_OB_Cerebellar plane_B_1

    Mindray's TE7 - Cerebellar Plane

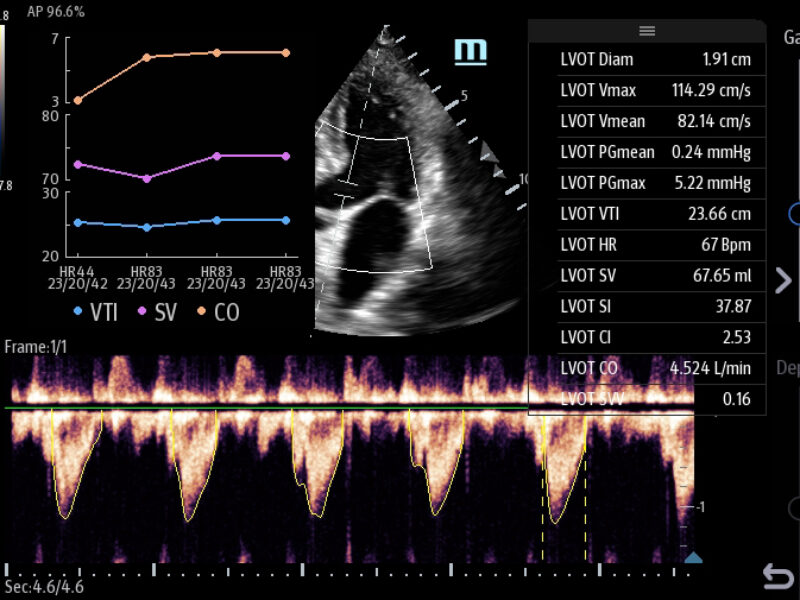

  • TE7ACE_Smart_VTI_Clinical

    Mindray's TE7 ACE Smart VTI Tool

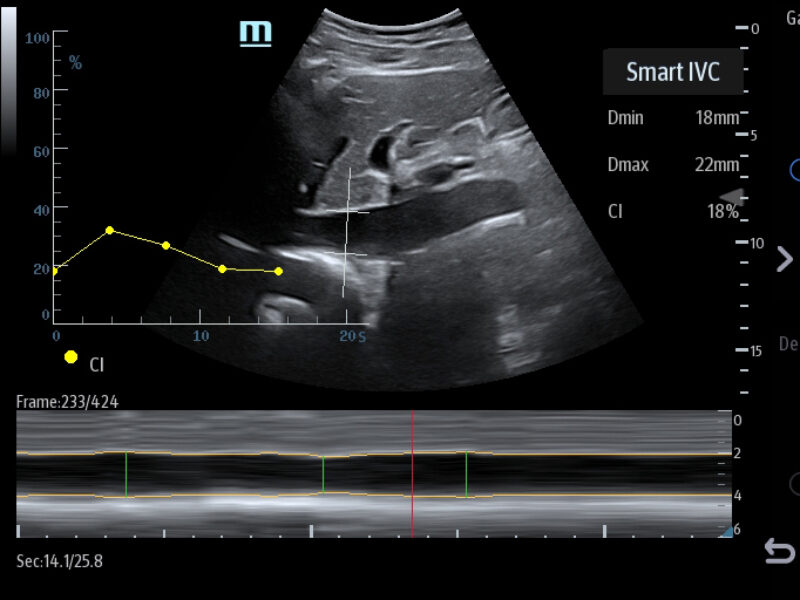

  • TE7ACE_Smart_IVC_Clinical

    Mindray's TE7 ACE Smart IVC Tool

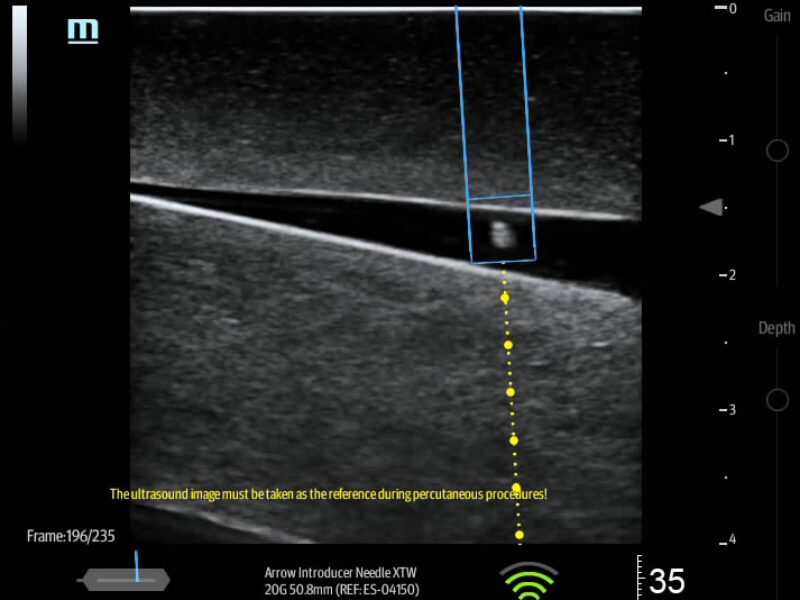

  • TE7ACE_eSpacial_Navi_Out_of_Plane

    Mindray's TE7 ACE - Out-plane-procedure using eSpacial Navi

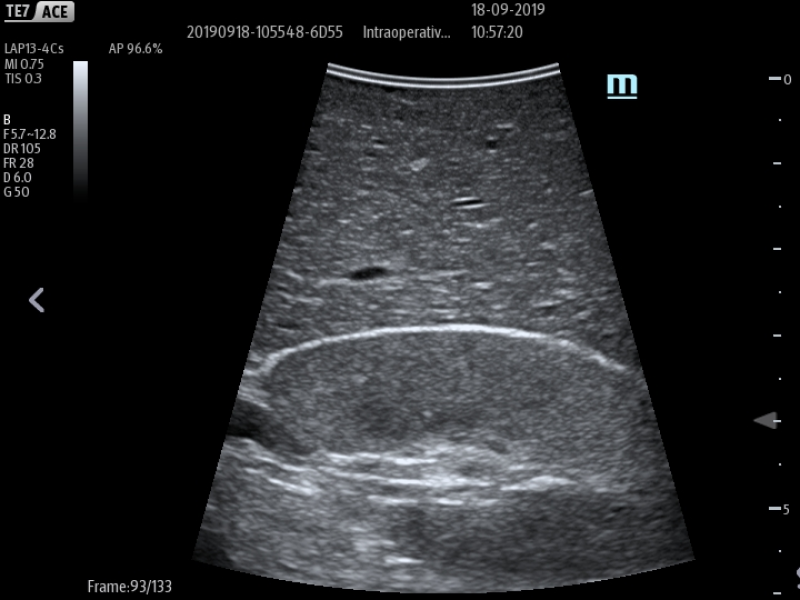

  • LAP13-4Cs_Kidney_1-800x600

    Mindray's TE7 ACE - Kidney Scan

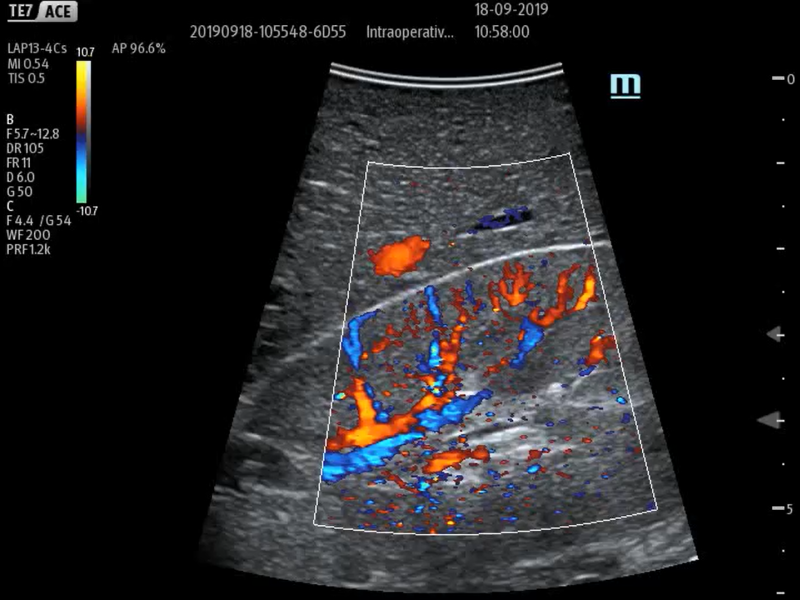

  • TE7 Ace Kidney hemodynamics 800x600

    Mindray's TE7 ACE - Hemodynamics in Kidney

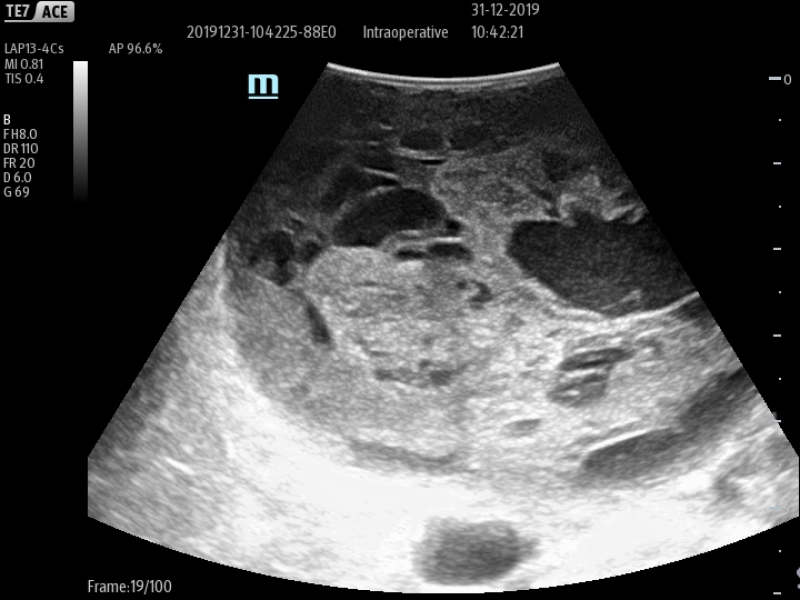

  • LAP13-4Cs_Liver_Tumor_1_800x600

    Mindray's TE7 ACE - Liver Tumor

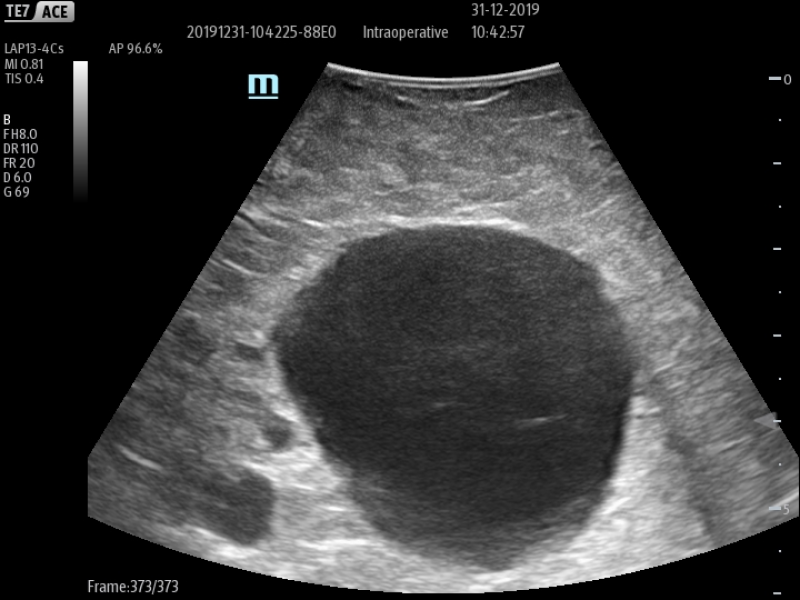

  • LAP13-4Cs_Liver_Tumor_4_800x600

    Mindray's TE7 ACE - Liver Tumor
