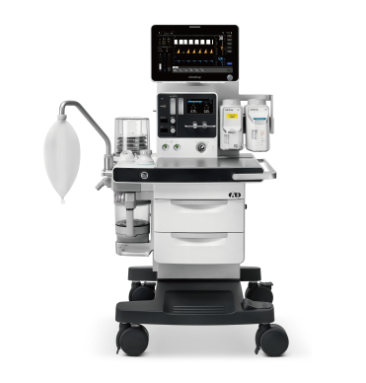

Anaesthesia system

A3

Flexibility with Finesse

3

Electronically measured fresh gas flowmeters with on-screen display

2

Plug-and-play monitoring modules compatible with Mindray modular patient monitor

4

Integrated compact breathing circuit with classic panel design

1

12.1-inch capacitive touchscreen, configurable screen layouts

5

Compact main unit, Modular and flexible design

1

12.1-inch capacitive touchscreen, configurable screen layouts

2

Plug-and-play monitoring modules compatible with Mindray modular patient monitor

3

Electronically measured fresh gas flowmeters with on-screen display

4

Integrated compact breathing circuit with classic panel design

5

Compact main unit, Modular and flexible design

Superior adaptability for various clinical settings
Ready for any scenario
  • Compact and adaptable footprint without compromising on performance or features.

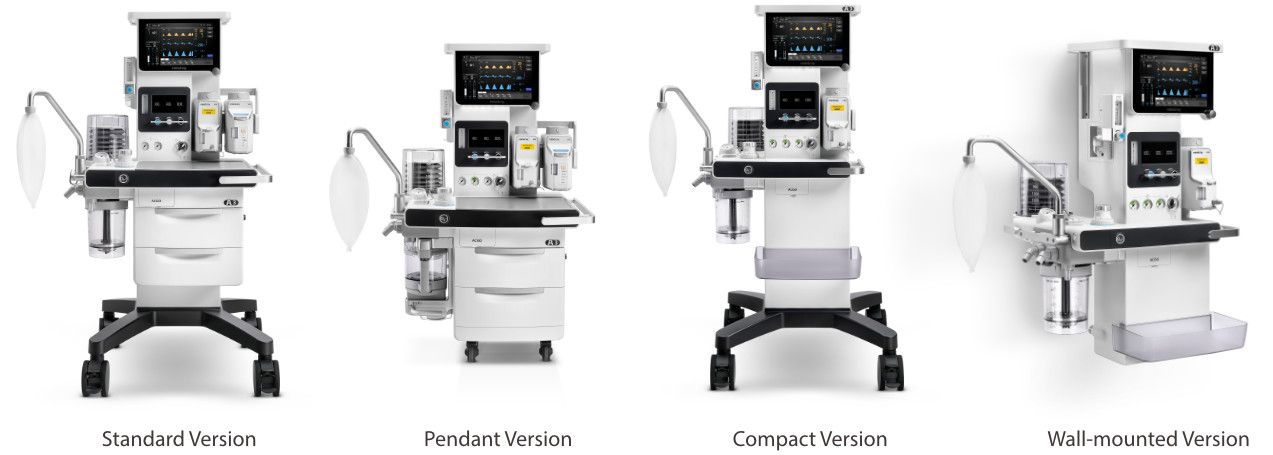

  • Flexible configuration options: Standard, Pendant, Compact, and Wall Mount versions.
a3-fig2-pc-en

Advanced technology for robust safety benefits

  • 1

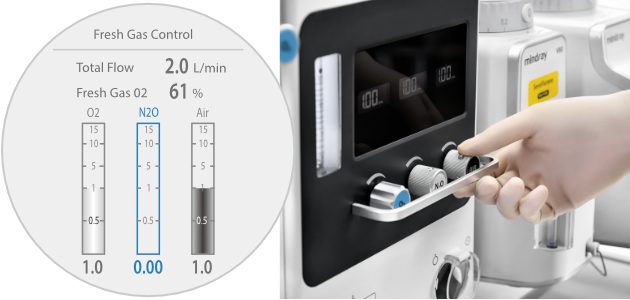

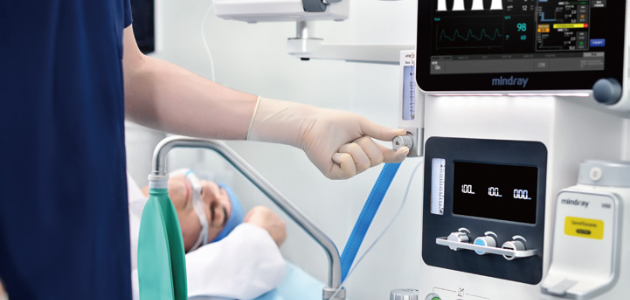

    Digital flowmeter and versatile ventilation
    • Digital flowmeters for a precise anaesthesia management.
    • Versatile ventilation modes including VCV, PCV, PCV-VG and SIMV for tailored patient care.
  • 2

    High Flow Nasal Cannula (HFNC)

    - Directly set O2 flow with maximum up to 60L/min.

    - Built-in design with no additional gas or power source required, saving space and minimising clutter.

  • 3

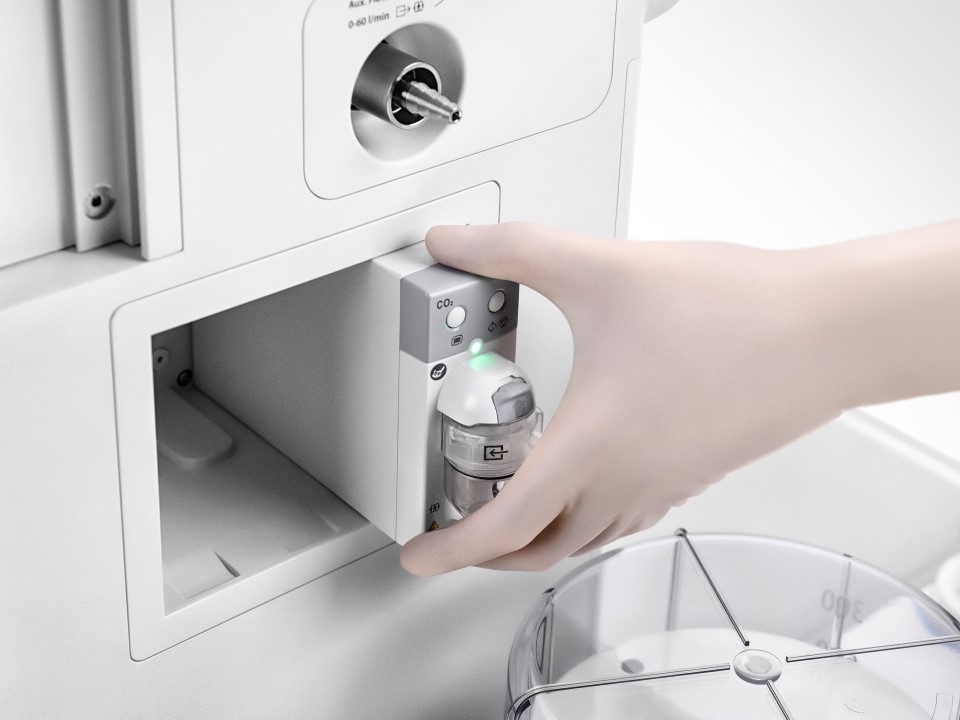

    Plug and play CO2 and AG modules+
    • Single slot CO2 module or double slot AG capability.
    • Multi-gas modules provide breath-by-breath analysis of Fi/EtO2, Et/FiCO2, Et/Fi N2O and auto-detection of five anaesthetic agents.
  • 4

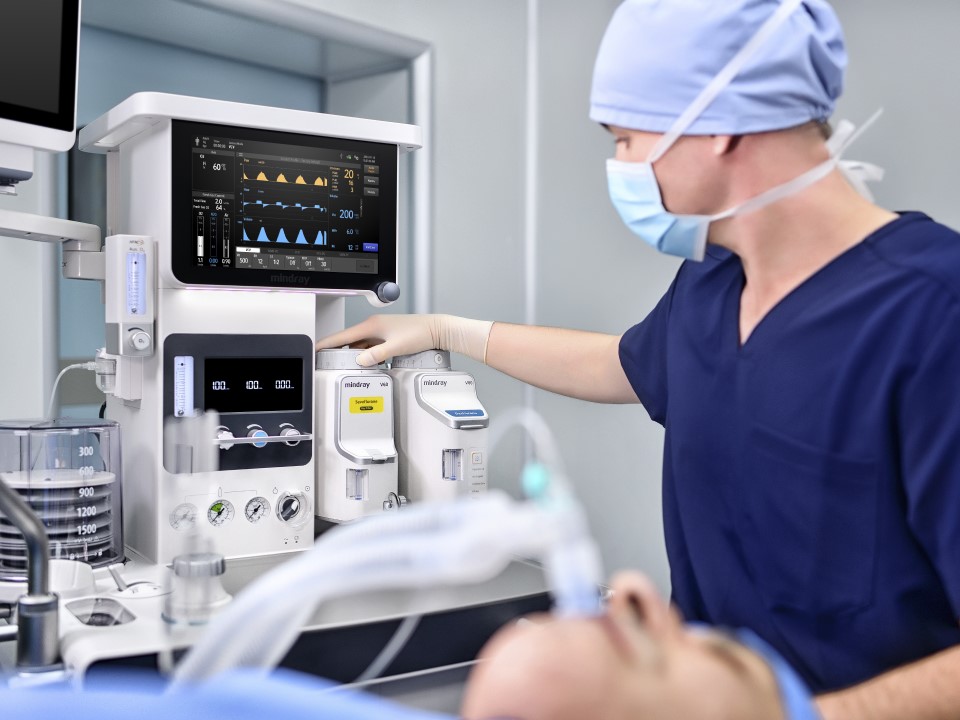

    Manage the total cost of ownership
    • Tool-free disassembly of integrated breathing system.
    • Compatible with both reusable and disposable soda lime canisters.
    • FlowSecureTM ensures accuracy and durability of flow sensors.
Precise and individualised ventilation
The A3 supports a full range of controlled and support modes of ventilation and with dynamic tidal volume compensation, support TVe as low as 10ml(5ml for PCV-VG), is suitable for all patient categories from neonates to adult.
a3-fig4-1-en
Intuitive and customizable user interface
• 12.1 inch capacitive touchscreen
• 1280X800 HD
• 10 customized profiles
• Graphical instruction
a3-fig4-4-en
More options for gas supply

Beyond its flexible form, the A3 anaesthesia system can also adapt to different gas sources. The ventilator can be operated normally even under limited gas supply conditions.



Optional Driven Gas Auto-switch

When the primary gas supply fails, the auto-switch function can automatically switch the driven gas supply to the back-up gas resource to ensure safe mechanical ventilation at all times



Optional built-in turbine module*

When high-pressure gas supply is not available, the built-in turbine can drive gas supply.



Optional internal air supply module

Backup fresh gas supply to ensure safe ventilation when high-pressure air supply fails.





*Not available in all regions
a3-fig5-pc-en

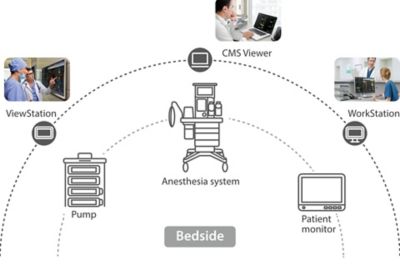

Comprehensive connectivity and data management

  • 1

    See the patient status in each operating room

    Make the most of remote patient monitoring with a central view of real-time data of patients in each operating room.

  • 2

    Overview of devices
    • Overview of anaesthesia machine distribution and utilisation
    • Summary of anaesthesia machine self-test results
