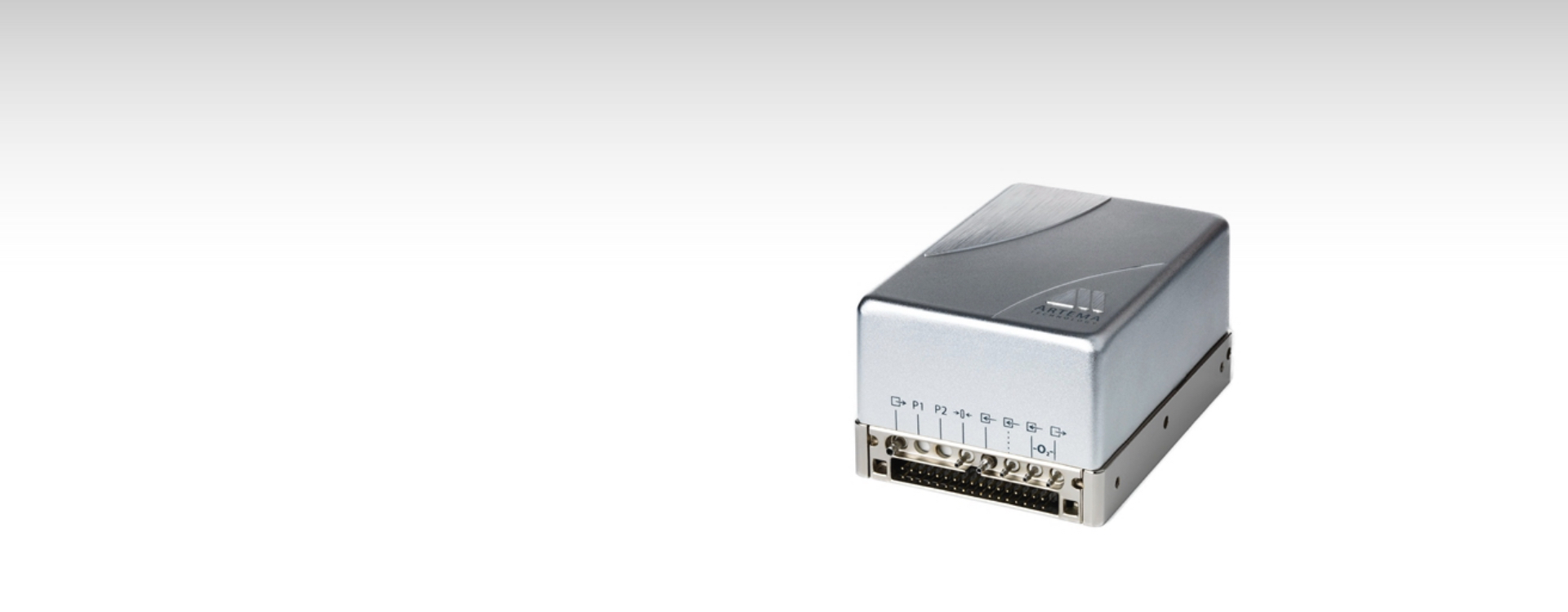

AION™ Platinum is a range of sidestream multigas analyzers aimed at low to high-end respiratory gas measurement applications and is available in a number of different configurations.
Key features:
- NDIR side stream gas analyzer
- Integrated paramagnetic oxygen sensor or interface to fuel cell oxygen sensors
- Calculates inspired and expired concentrations of all gases
- Generates up to five simultaneous waveforms
- Fast warm up (ISO specification within 45 seconds, full accuracy within 10 minutes)
- Flow controlled gas sampling pump, 70-200 ml/min user selectable gas sampling flow
- RS232 host interface

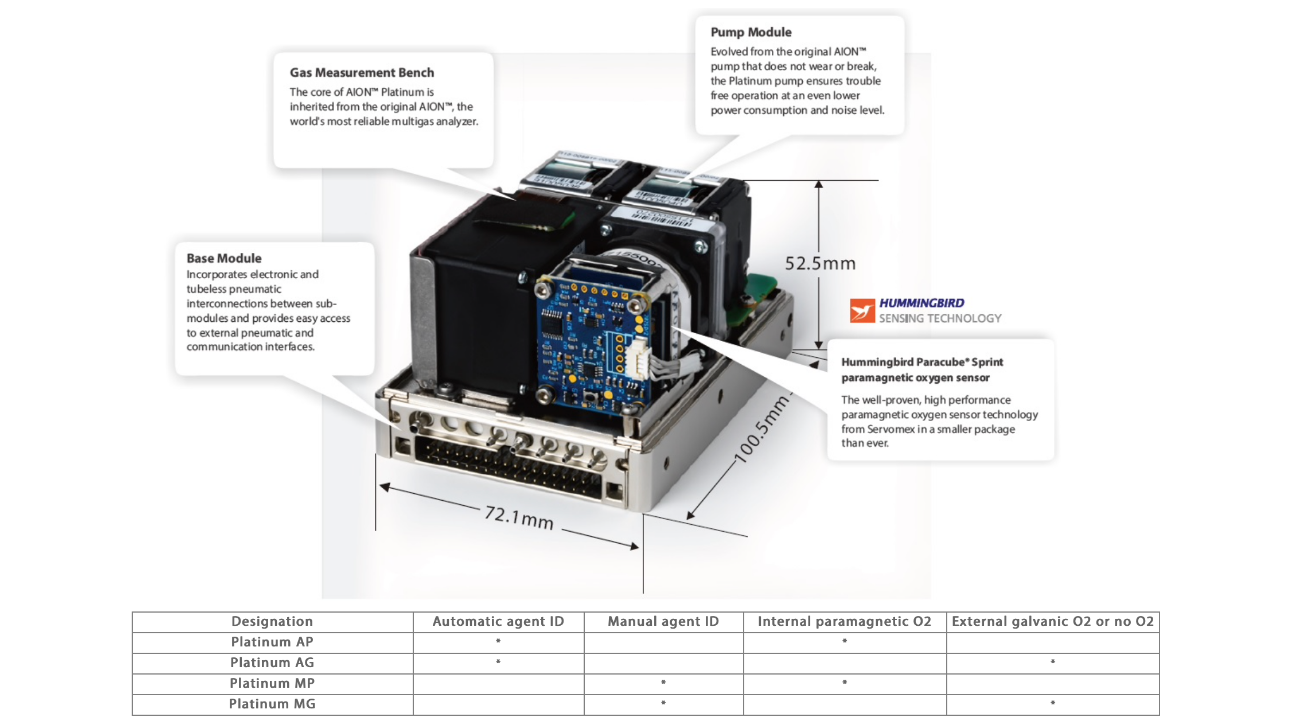

- Small size 72.1 x 100.5 x 52.5 mm
- Low power consumption (typically less than 2.9 W)
- Market leading reliability, proven MTBF greater than 40.000 h.
- Connects directly to DRYLINE™ & DRYLINE™ II water trap systems and OXIMA™ Galvanic Oxygen Sensor or SPIRIT™ Respiratory Mechanics System.
