Transport Ventilator

TV80

Unlimited Adaptability, Uninterrupted Care

Watch Product Video

Transporting critically ill patients involves the use of various equipment, and the process of switching and carrying multiple devices can place a heavy burden on healthcare professionals.

The TV80 transport ventilator overcomes the limitations of separate equipment by integrating the ventilator, patient monitor, infusion pump, and high-pressure oxygen cylinder. This modular integration not only enhances the efficiency of patient transfers but also improves safety during the process.

en-tv80-fig1-pc

Effcient Modular Intra-hospital Transport

Transport Preparation
  • Plug-and-play: Preparation for ventilator and patient monitor with just one step
  • Automatically synchronizes ventilator settings of bedside ventilator, eliminating manual adjustment
  • Continuity of care: Monitor module monitors the patient uninterruptedly without cables reconnection
During Patient Transport
  • Integrated transport, all-in-one and lighter burden for clinicians
  • Continuously monitors and records vital signs, such as ECG, SpO2 , blood pressure throughout the transport process, can also update the data to CMS wirelessly in real-time
Patient Handover
  • Plug-and-play, without monitor cables reconnection
  • The data of ventilation and monitoring during transport is automatically upload to the bedside patient monitor seamlessly
Portable, Ease to use, Confident
The TV80 Transport Ventilator is designed for portable use and features battery and oxygen management, making daily use and maintenance of the transport ventilator more convenient..
• Built-in turbine, more independent and portable
• Peak flow ≥260L/min, more effective NIV support
• Precise FiO2 adjustment in the range of 21%~100%
• Weighs only 6.5kg
cn-tv80-fig3-1-pc
• Non-consuming O2 sensor: Long lasting with zero maintenance
• Real-time O2 consumption monitoring
en-tv80-fig3-2-pc
• Long-lasting hot-swappable battery: operating time ≥11 hours with real-time battery display even when powered off
• Outdoor Mode: Improve viewing under sunlight or bright ambient light with one touch
cn-tv80-fig3-3-pc
Next
Previous

Adapting to the Most Demanding Environment

-20~50 ℃
Working temperature

7600 m
Automatic altitude compensation

IP34
Dustproof and waterproof grade

6 sides 75cm
Drop protection

20 G
Force resistance

TV80 is a durable and reliable equipment that can withstand extreme conditions like severe cold, scorching heat, heavy rain, and rough terrain. It remains in top-notch condition, delivering respiratory support in consistent performance for critical paitents during transportation. It meets transport vehicle standards and supports various types of transport.

RTCA/DO-160G
EN 13718-1
EN 1789
ISO 80601-2-84 (EN 794-3)

Powerful and Comprehensive Ventilation Support



The TV80 Transport Ventilator is equipped with ICU-level ventilation support for all types of patients during transport, ranging from invasive and non-invasive ventilation to oxygen therapy. Whether it's for newborns or adults, lung protection or weaning purposes, the TV80 ensures effective ventilation support throughout the transportation process.

Intelligent Ventilation: AMV™ + IntelliCycle™
• AMV (Adaptive Minute Ventilation), automatically adjusts ventilation parameters according to patient status
• IntelliCycle synchronization technology, combined with AMV to be more intelligent and easier to use, only need to set 3 parameters
cn-tv80-fig5-1-pc

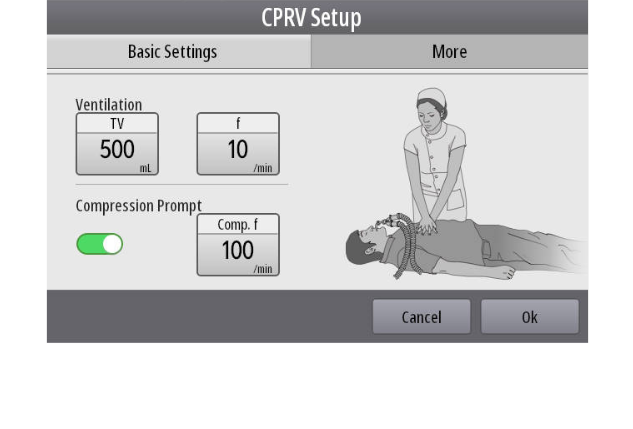

Emergency Ventilation: CPRV™ + CQI™
• Emergency ventilation CPRV mode, one-button quickly access preconfigurable CPR ventilation settings to optimize safer resuscitation process
• The integrated CPR index CQI display can efficiently evaluate the compression and improve the compression quality during rescue
en-tv80-fig5-2-pc

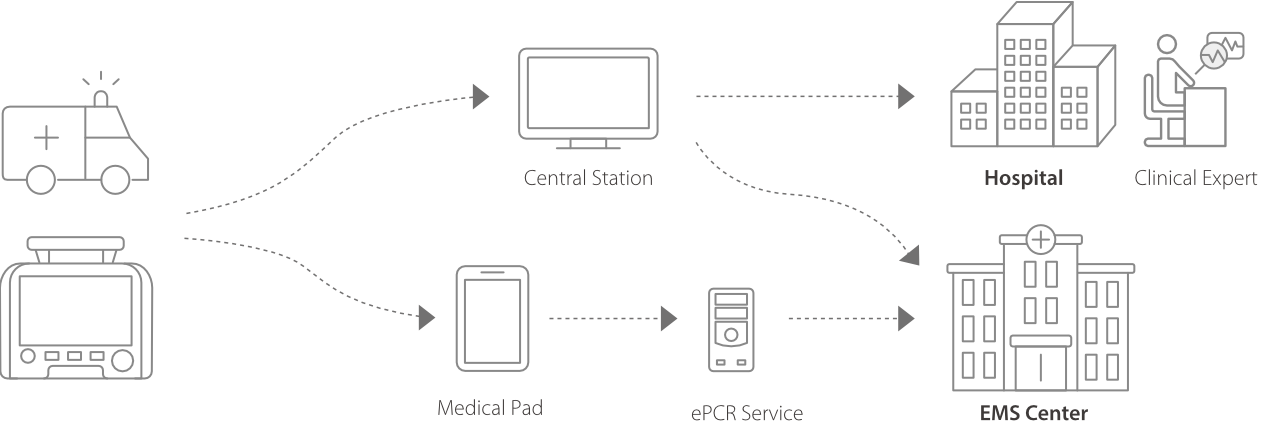

Seamless Integration with Telemedicine Capabilities

The TV80 transport ventilator can be equipped with 5G, Wi-Fi, or Bluetooth capability, allowing the seamless and real-time transmission of patient ventilation data and other vital signs of patient to the hospital, shortening the response time as well as supporting timely care for patients.

en-tv80-fig6-pc
en-tv80-fig7-pc
The patient’s ventilation and monitor data during transport can be transmitted to the hospital in real-time. The medical staff can remotely monitor the patient‘s ventilation and vital signs through the hospital’s CMS(central monitoring system) or ePCR system to formulate timely treatment plan.
