Modular System

BS-2000M

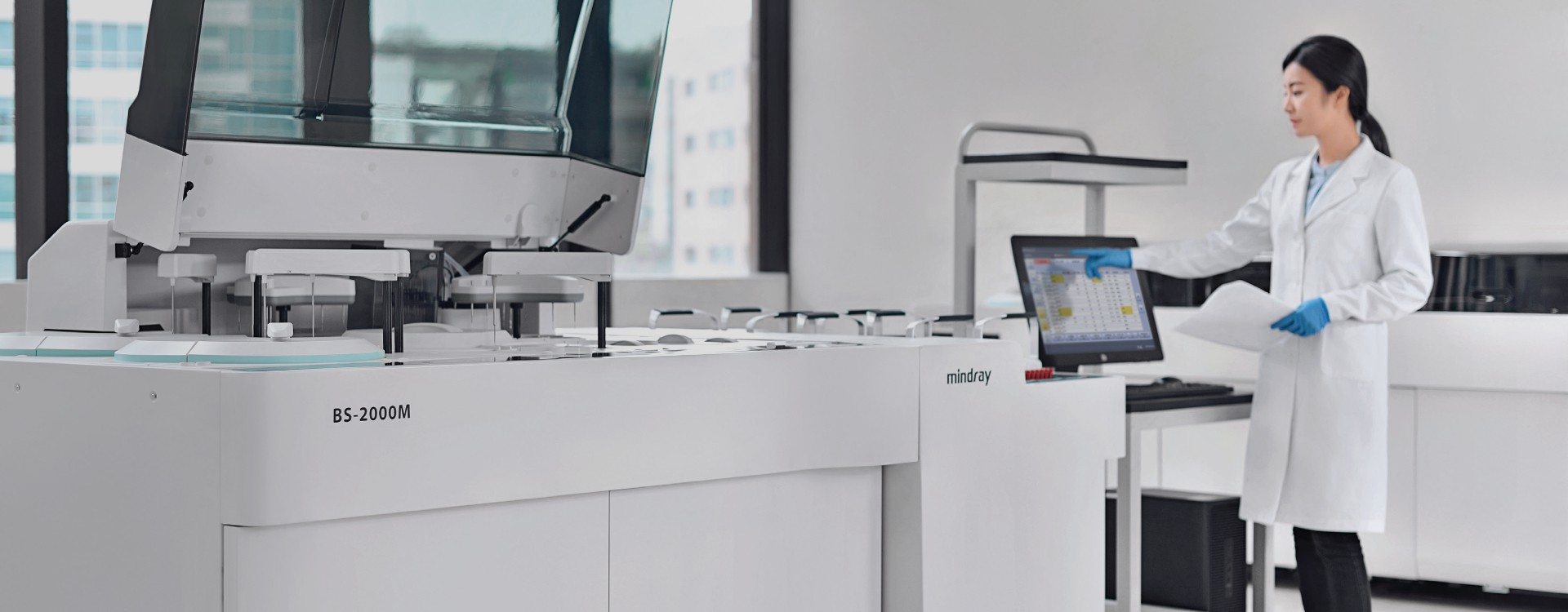

A floor-standing, modular, discrete and random access clinical chemistry analyzer offering constant throughput of 2000 tests per hour with Sample Delivery Module.

Reliable Results

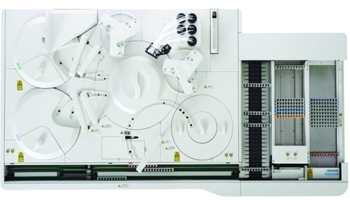

System Layout

• Constant throughput of up to 2200 tests per hour including ISE's
• Sample Delivery Module and Front Track System
• Expandability in different modules
• Permanent cuvettes with 8-stage auto-washing station
• Minimum 80μl reaction volume

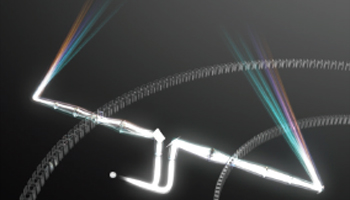

• Reversed grating system with 13 wavelengths
• Bubble detection for reagent probes and clot detection for sample probes

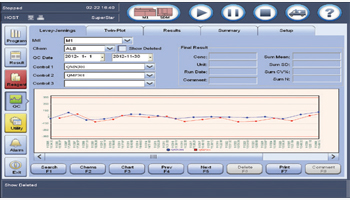

Real-time QC Status Monitoring

• Westgard Rules and Two-Control Evaluation check Levey-Jennings chart and Twin-Plot chart for review
• Real-time alarm and locating when QC result(s) is out of range Auto QC setup capability

Stable Cooling Compartment

• 2°C-8°C constant cooling compartment for reagents.
• Constant cooling compartment for calibrators and controls in sample carousel

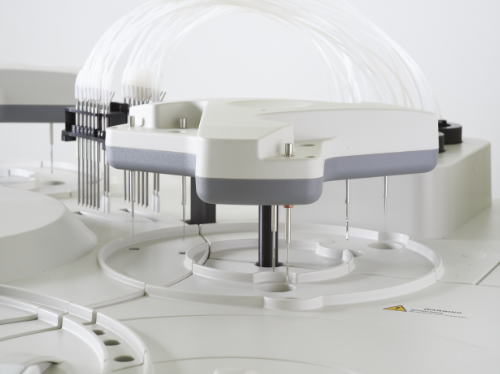

High Precision Aspirating

• 1.5μl-25μL, with increment of 0.1μL for sample probe
• Non-touch dispensing for sample

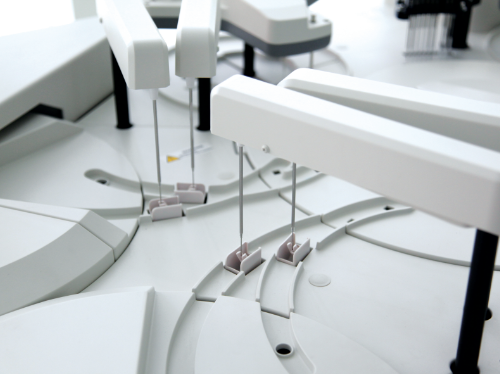

High Performance Reaction System

• Two 6-head mixing units for reagent and samples
• Direct solid heating for reaction carousel
• Glass cuvettes for permanent use

Efficient Washing System

• Interior & exterior probe washing with high pressure pre-heated water
• Programmable enhanced washing with detergent for reagent and sample probes
• 8-stage cuvette wash station, washing cuvettes with pre-heated detergent and water
