Auto Hematology Analyzer

BC-5000

A "CUTE" 5-part

Based on Mindray’s continuous innovation in hematology field, BC-5000 is especially tailored to assist diagnostic labs who need full CBC + 5-part results, with relatively low daily sample volume, restricted lab space and tight budget.

As the lightest and most compact 5-part hematology analyzer so far from Mindray, BC-5000 is a highly user-friendly and innovative analyzer that offers cost efficient CBC and 5-part white cell differential results. It is targeted to fulfill and exceed the demands of our global customers by providing more accurate, more efficient and more innovative solutions for labs.

Features

10.4 inch large TFT touch screen with user-friendly software

Large storage capacity: up to 20,000 samples

Throughput: 40 samples per hour

Sample volume is only 15μL which is ideal for pediatrics

Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better 5-part WBC differentiation even on samples with high Eosinophil

Technology

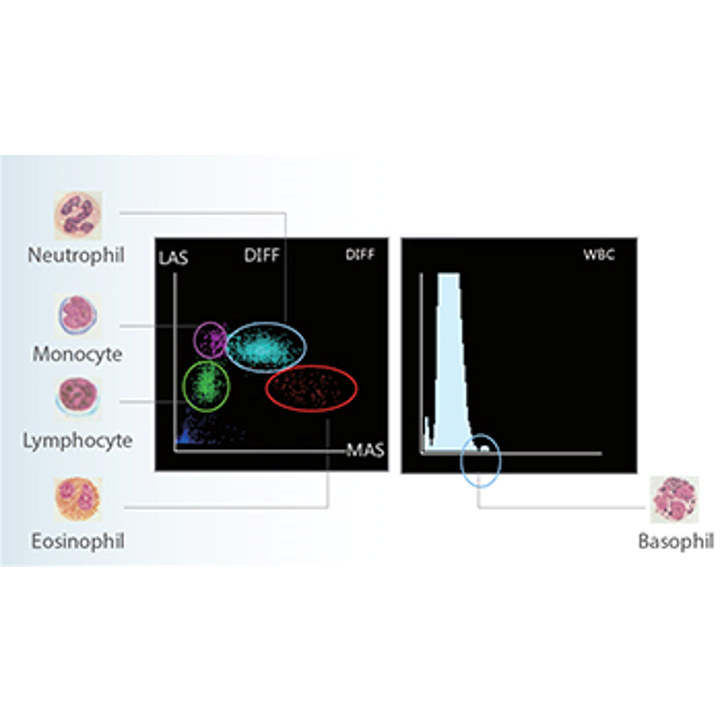

WBC 5-part differentiation, 23 reportable parameters, 3 histograms and 3 scattergrams

Whole blood mode, Capillary whole blood mode and Prediluted mode

Tri-angle Laser scatter + Chemical dye + Flow cytometry technology

Dedicated optical counting channel for Basophil measurement

Powerful capability of flagging abnormal cells

Utility

Running capillary blood through the sample probe directly is more convenient for the users in children’s hospitals, etc. For Prediluted mode, BC-5000 has higher dilution ratio than other 5-part hematology analyzer, thus it brings a better mixing effect.

Improved Performance

Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better 5-part WBC differentiationeven on samples with high Eosinophil

Connectivity

4 USB ports are located on the instrument’s left side. They permit BC-5000 users to transmit data conveniently and connect with printers, keyboard, mouse, barcode scanner, etc.
