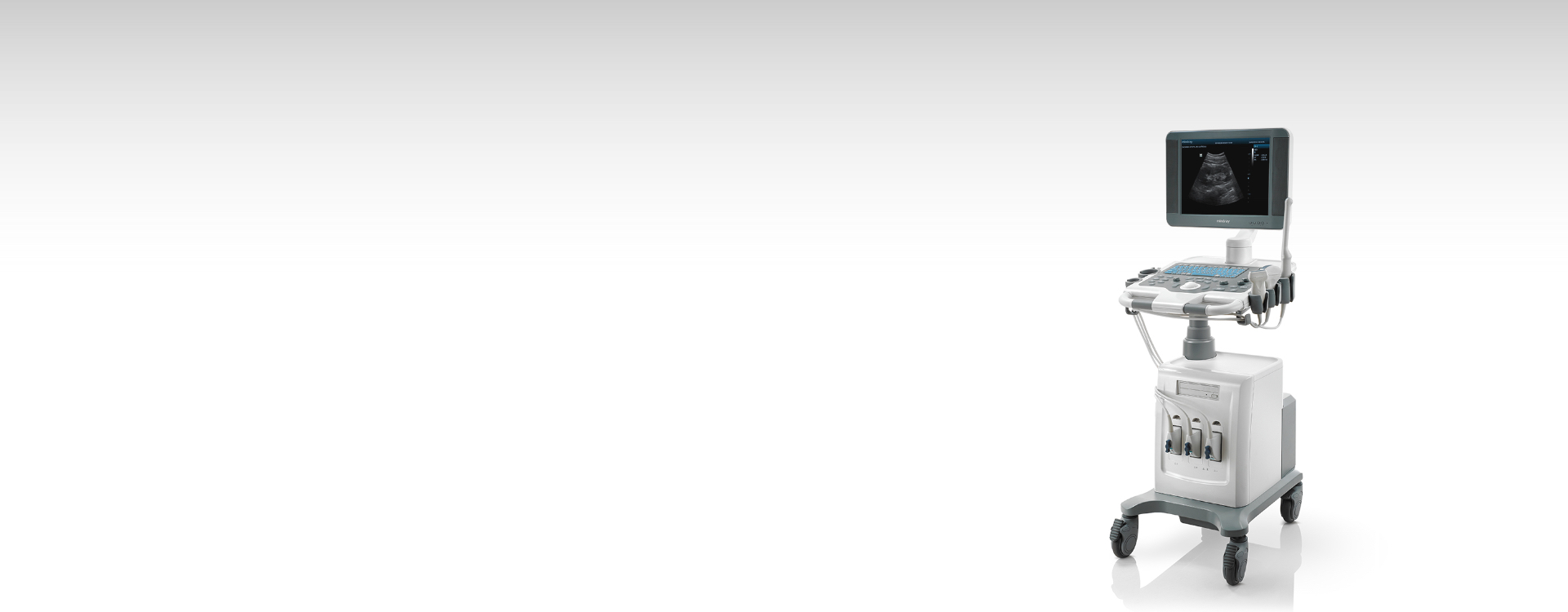

Ultrasound System

DP-5

Overview

An entry-level cart-based black & white system, DP-5 is equipped with basic modern technologies providing clear images and a comfortable scanning experience. Compatible with a wide range of light weight probes, DP-5 offers an intelligent workflow operation, making it suitable for various clinical settings.







Performance

PSHI™(Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

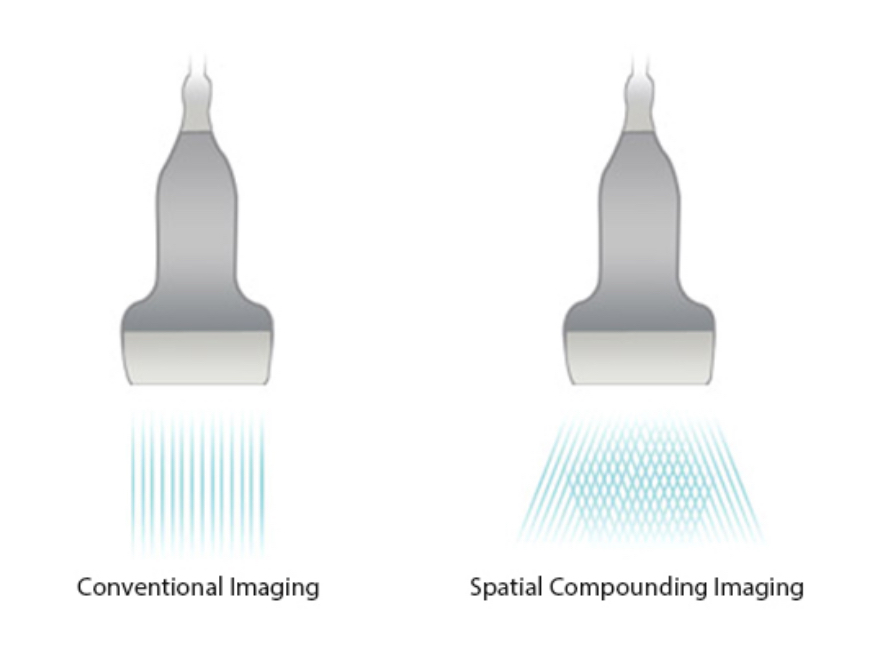

iBeam™

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

p105-s2-web

iClear™

Gain improved image quality based on auto structure detection.

· Sharper & Continuous Edges

· Smooth Uniform Tissues

· Cleaner ‘no echo areas’

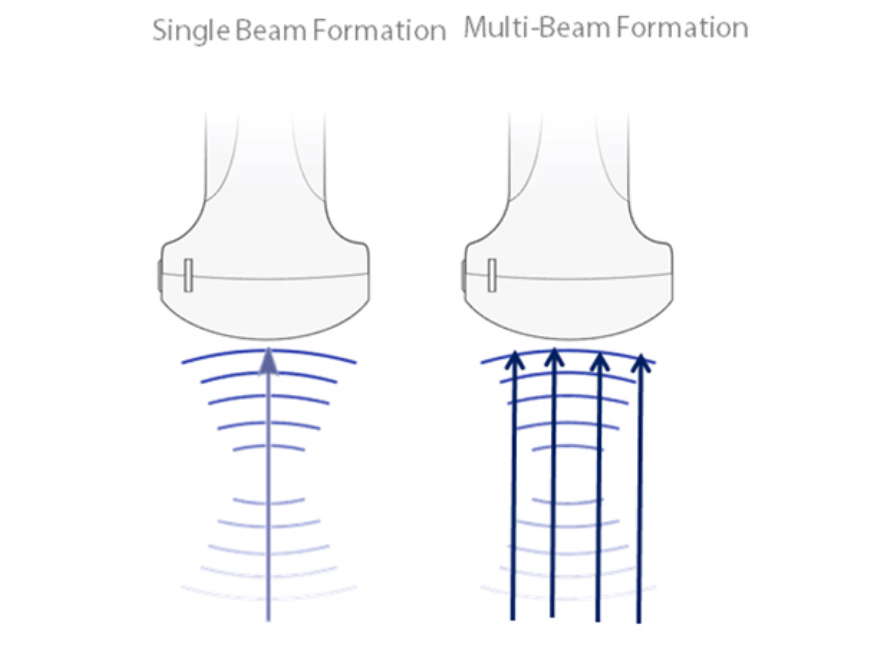

Multiple Beam Formation

Maximum 4 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

p105-s3-web

iScape™

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.



ExFOV

Discover better diagnostic information through extended view of the anatomical structure on all convex probes.



Trapezoid Imaging

Discover better diagnostic information through extended view of the anatomical structure on all linear probes.



B-Steer™

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.



Auto IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.







Workflow

iStorage™

Directly transfer images and reports to PC via network cable.



iZoom™

Gain instant full screen view on the click of a single key.



iStation™

Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.



iTouch™

Gain instant auto image optimization in B mode on the click of a single key.



Ergonomics

· High resolution,wide angle 15’’ LCD

· Compact and streamlined shape

· User friendly keyborad and controls

Clinical Images
  • p105-s4-1-web

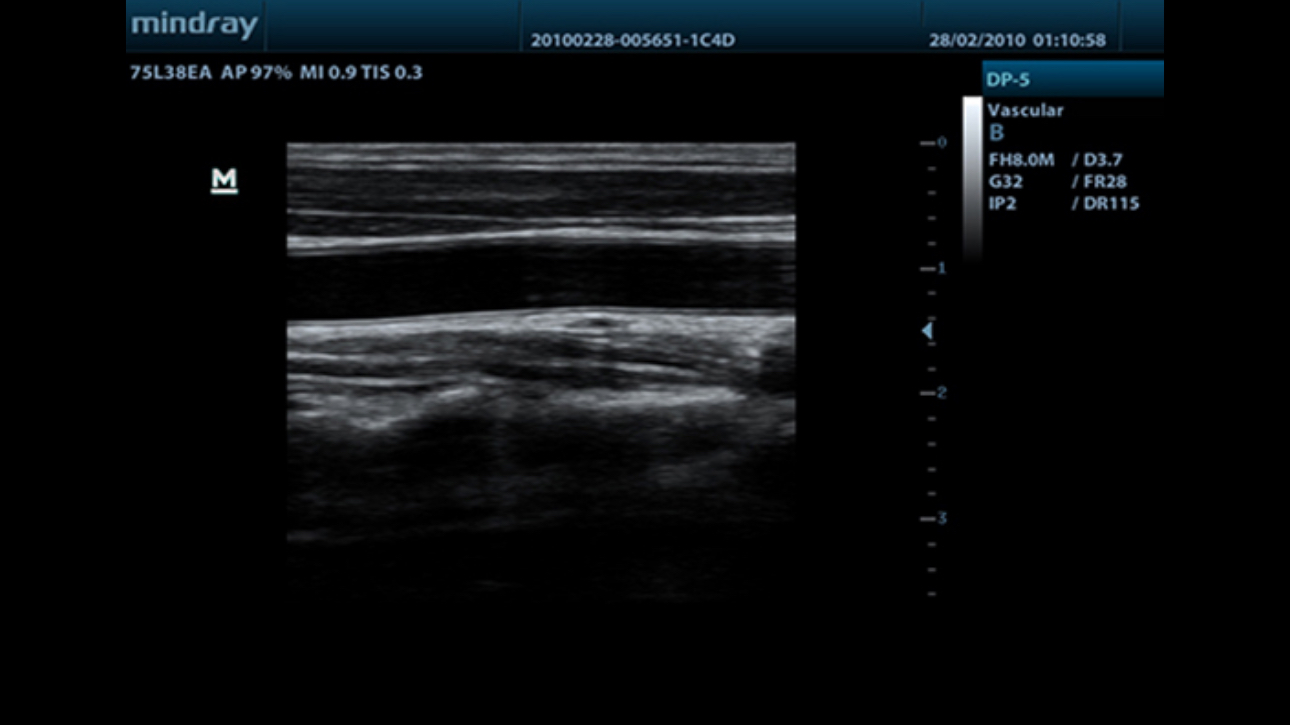

    Carotid

  • p105-s4-2-web

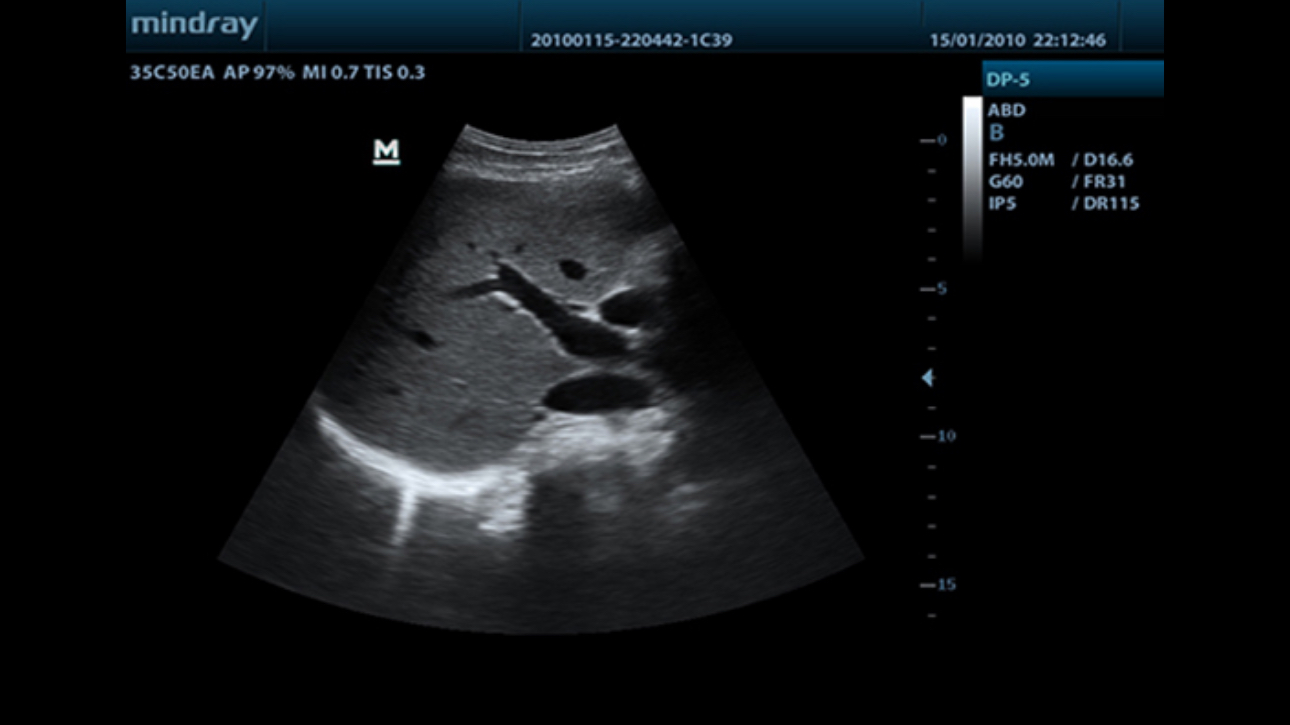

    Hepatic Vessel

  • p105-s4-3-web

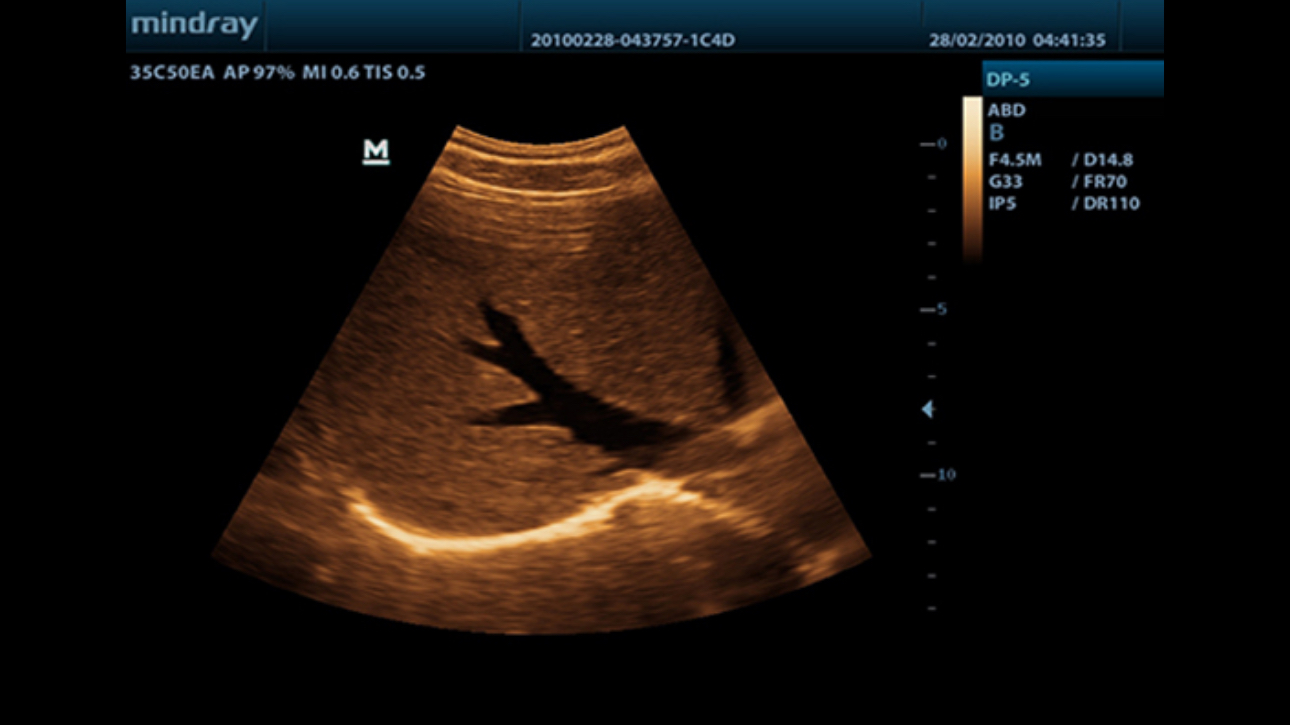

    Liver

  • p105-s4-4-web

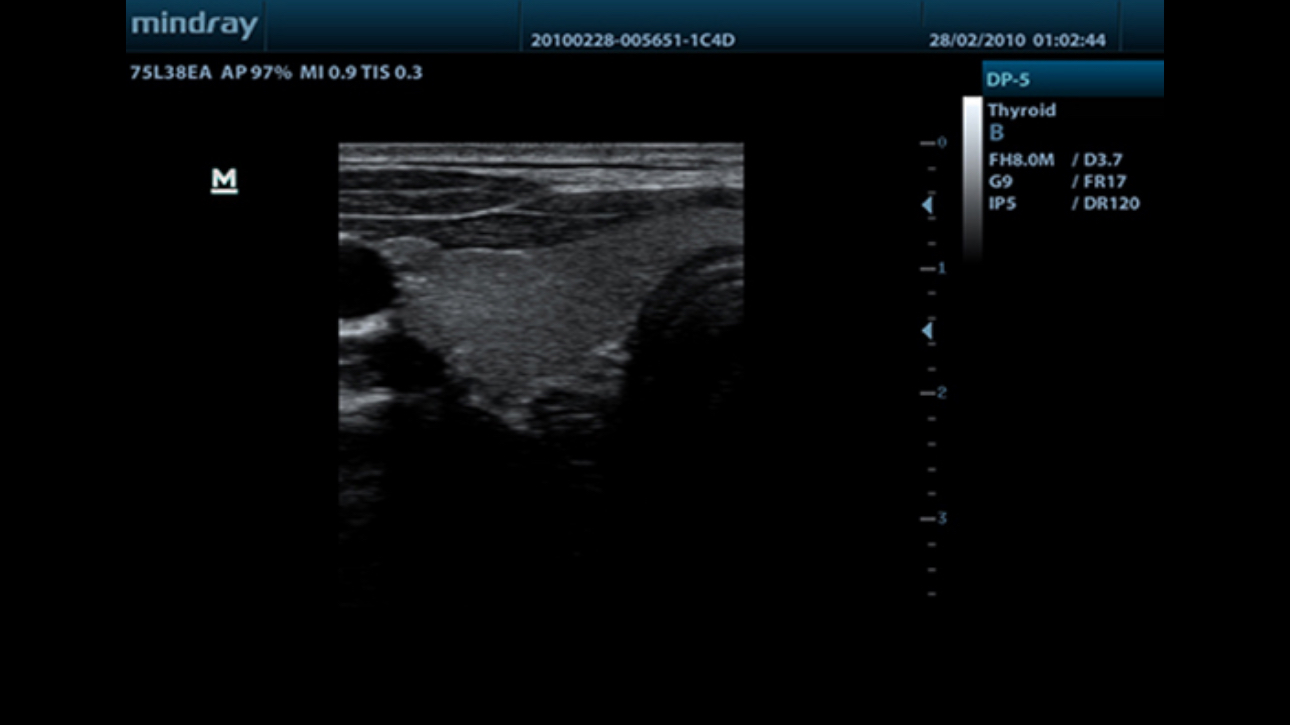

    Thyroid

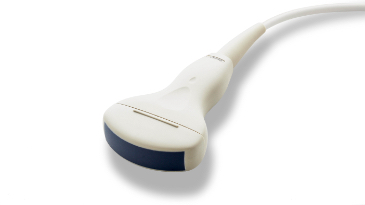

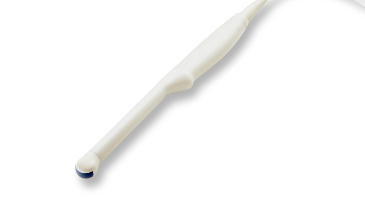

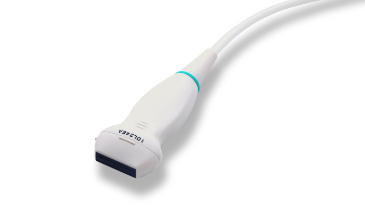

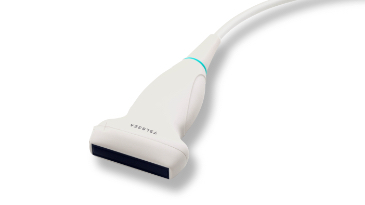

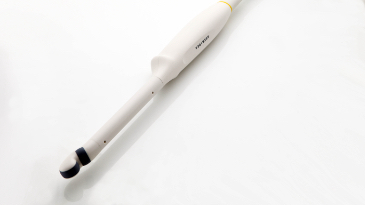

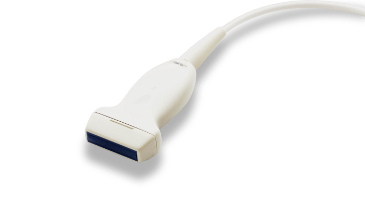

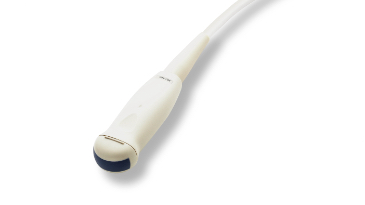

Transducers
