Ultrasound System

M7 Premium

Ultrasound System

M7 Premium

Overview

With its ergonomic mobile trolley same with performance and features comparable to that of conventional cart-based systems, the M7 Premium provides you mobility with power and improves your productivity. To sum it up, the M7 Premium delivers you the power and productivity of a full-sized system in a hand-carried size.

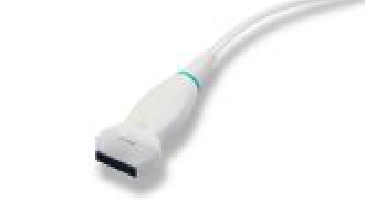

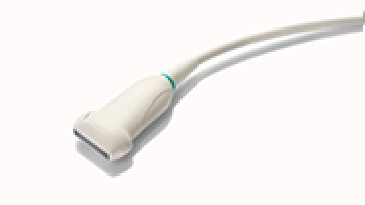

3T Transducer Technology

Mindray’s patent transducer technology to increase image bandwidth and transmission efficiency
· Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N.
· Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution
· Thermal-control design for better acoustic transmission

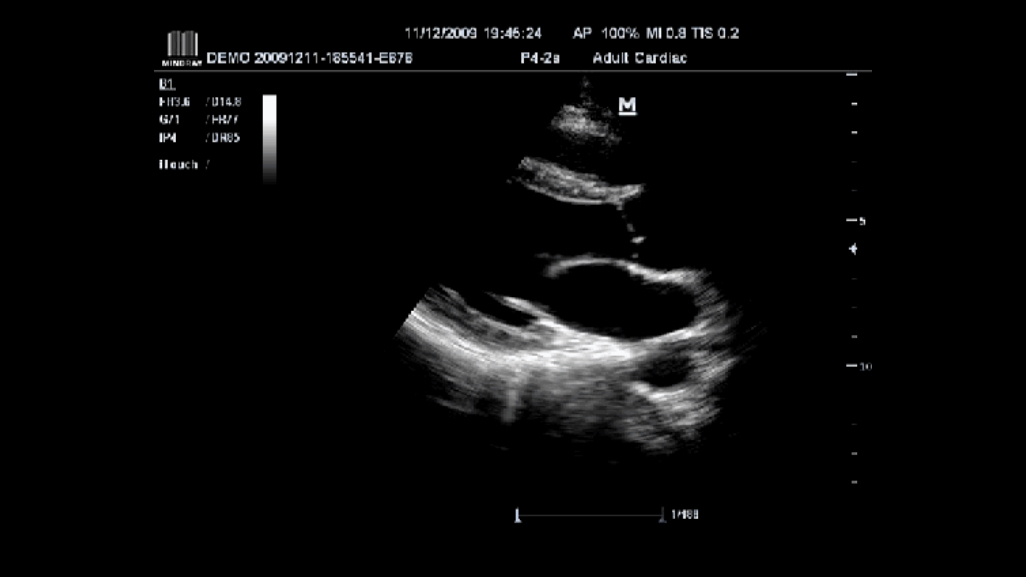

PSHI™ (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

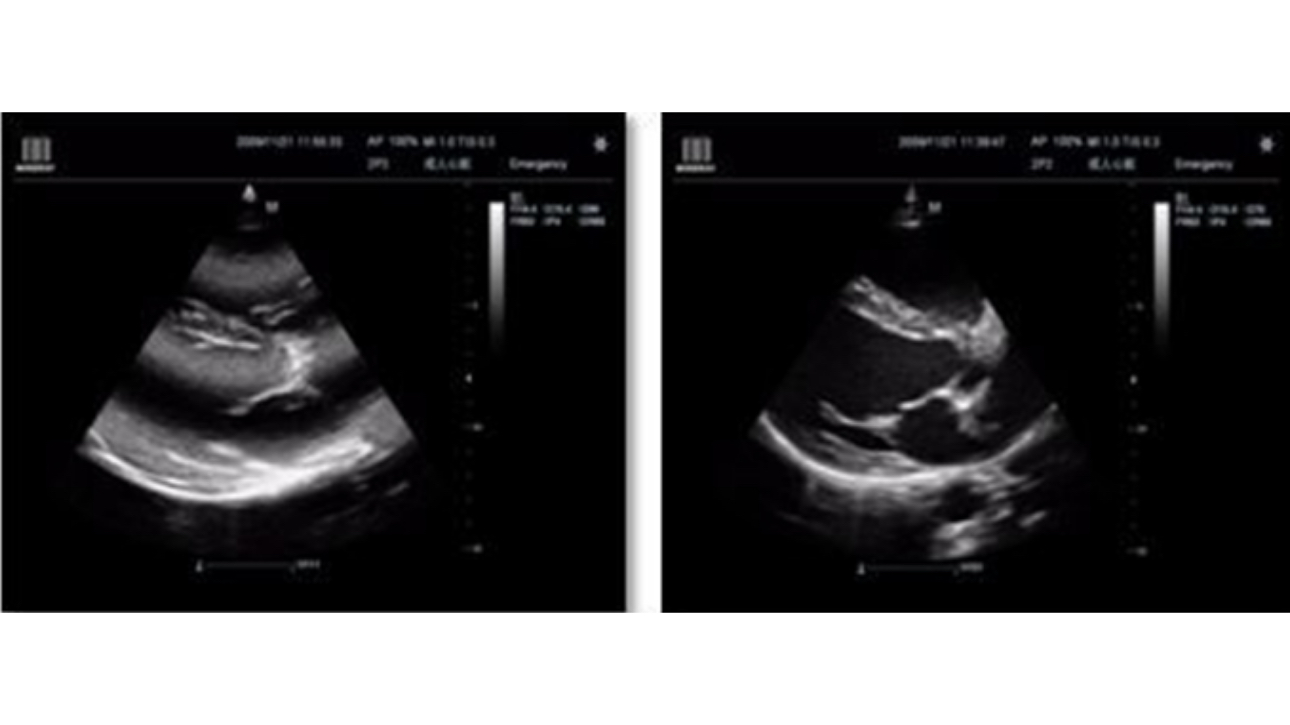

iClear™ (Speckle Suppression Imaging)

Gain improved image quality based on auto structure detection. · Sharper & Continuous Edges · Smooth Uniform Tissues · Cleaner ‘no echo areas’

iBeam™ (Spatial Compound Imaging)

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

Multi-beam formation

Maximum 8 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

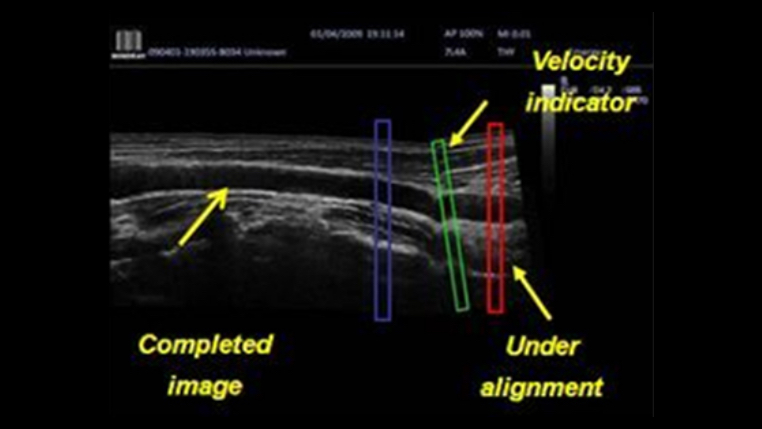

iScape™ (Real-time Panoramic Imaging)

Get a complete and extended view of the anatomical structure through panoramic imaging, coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.

ExFOV

Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.

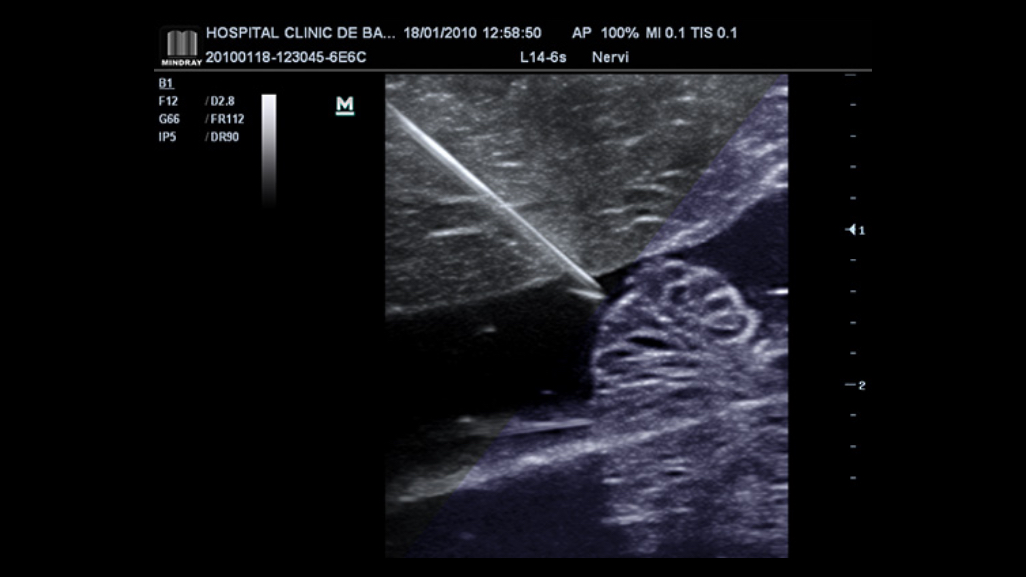

iNeedle™

The totally new iNeedle is able to recognize and adapt the puncture angle automatically, enhancing both needle tip and pathway clearly.

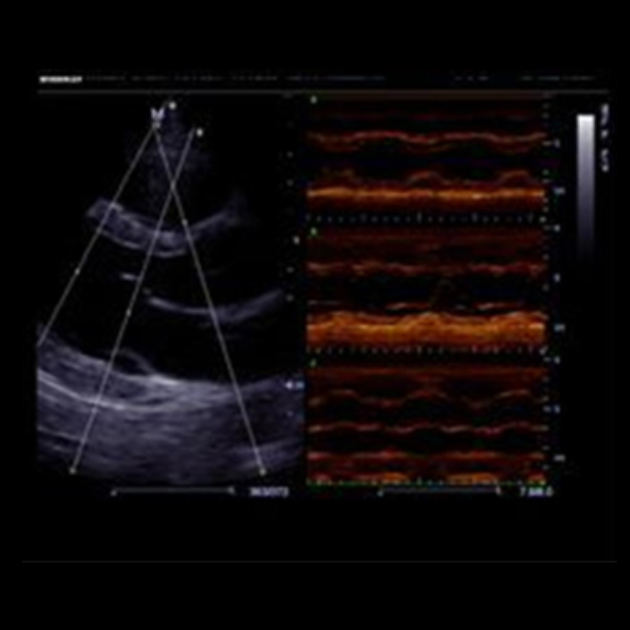

Free Xros MTM

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.

Workflow

iScanHelper

Dedicated inbuilt tutorial software.
· Anatomical diagram illustrations including schematic and ultrasound picture
· Standard ultrasonogram comparison with real-time scanning
· Scanning reference picture demonstrating appropriate patient position and probe placement
· Tips on scanning skills and diagnostic information
