Operating Table

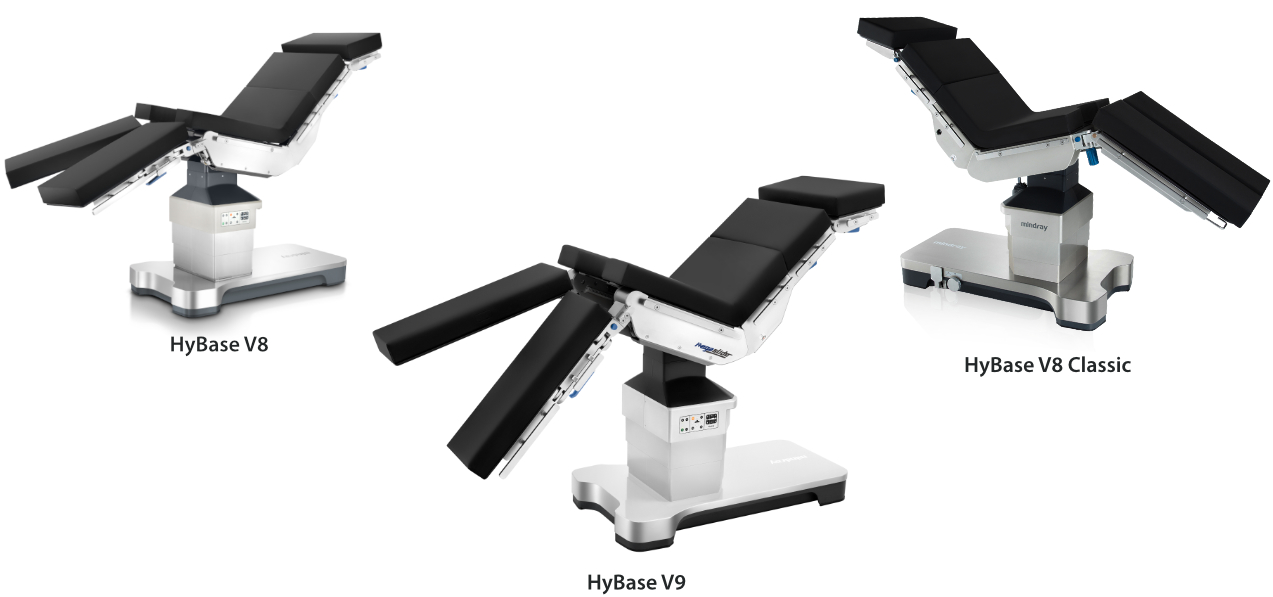

HyBase V Series

Versatility Beyond Expectation

Watch Product Video
hybase-v-series-fig1-pc
Flexibility for Multiple Disciplines
hybase-v9-fig2-pc

Various positions

The modular design of the tabletop is tailored for various surgical discipline needs, which can also lower the cost for hospitals as they only need to buy the specific module, instead of a new table, for an additional surgical type.
HyBase V series supports 12-20 electric movements, such as powered body elevator, electric leg plates adjustable individually and E-drive function, to adapt different surgical needs.
Wide Imaging Access
HyBase V9 New
Megaslide
• 480mm max longitudinal shift
• Allow deeper access to the C-ar,m, an optimal solution for cardiovascular surgery
HyBase V8 Family
• 350mm max longitudinal shift
• 450-500mm vertical movement
hybase-v-series-fig3-2-pc
120/140mm ultra-thin base for C-arm access
hybase-v-series-fig3-3-pc
• Max slope angle 36°
• Max tilt angle 26°
hybase-v-series-fig3-4-pc
Next
Previous
Features for Enhanced Safety
Light Indication Function
HyBase V9 Feature NEW
The two sides of the light correspond to the width of the column, facilitating obtaining the relative position of the column in the scenario where the sterile sheet is covered, and improving the patient position and C-arm fluoroscopy efficiency.
hybase-v-series-fig4-1-pc
Module Recognition System
A lower back plate and small leg plates are configured with the Module Recognition System to avoid collision between modules and the floor.
hybase-v-series-fig4-2-pc
Intelligent Collision Protection System
The Intelligent Collision Protection System (ICPS™) monitors the positions of the table elements during movement to avoid collision by the Module Recognition System. This system also prevents the leg plate from colliding with solid objects when the table is covered with sterile surgical sheets.
hybase-v-series-fig4-3-pc
Color-coded Indicate Technology
During the tilt or slope adjustment, a color-coded indicator appears on the screen to show the angle and issue a timely warning when it comes to excessive Trendelenburg and reverse Trendelenburg position.
hybase-v-series-fig4-4-pc
Manual Override System
Allowing table articulation movements and brake release in the event of primary control or power malfunction through an independent hydraulic circuit.
hybase-v-series-fig4-5-pc
Next
Previous
Efficiency in every step

Improve efficiency in the operating room.



Simultaneous Movements (HyBase V9 Feature New )

Multiple joints operate simultaneously to increase positioning efficiency and reduce patient sliding.

hybase-v-series-fig5-pc
EASY to use
EASY to move
EASY to clean
EASY to control
13 14
glp118-s6-2-1 glp118-s6-2-2
glp118-s6-3-1 glp118-s6-3-2
19 20
